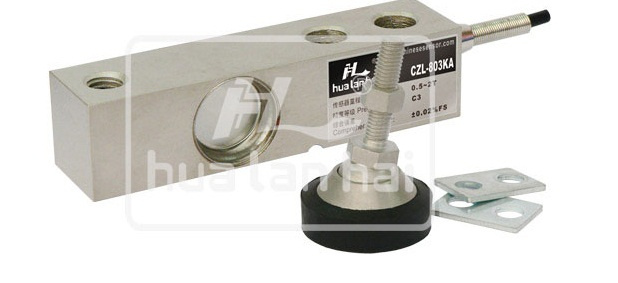

Shear Beam Load Cell -Czl803ka3

Name: Shear Beam Load Cell -Czl803ka3
Brand: all-electronics-online.com
SKU: 827581855
Availability: InStock
Rating: 4.8 (61 reviews)

Price:	US $ 25/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL803KA3
Pattern:	Shear Beam Load Cell
Material:	Alloy Steel

Product Description

Type: shear beam load cell
Material:      alloy steel
Surface:       nickel plated or anodized treatment
Protection:    IP68(laser welded)
Application:    floor scales, cattle scales, hoppers and tank scales , platform scales

1. Rated Load	0.5-10 (t)
2. Rated Output	3.0mV/V±0.25%
3. Zero Balance	±1%F.S
4. Input Resistance	400±10Ω
5. Output Resistance	350±3Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.02%F.S
8. Hysteresis	0.02%F.S
9. Repeatability	0.02%F.S
10.Creep(30min)	0.02%F.S
11.Operating Temperature	-20ºC To +65ºC
12.Temperature Effect on Zero	0.03%F.S/10ºC
13.Temperature Effect on Span	0.02%F.S/10ºC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	5m(5mm 4-wire shielding cable)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
