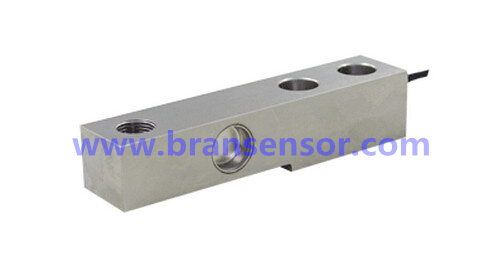

Shear Beam Load Cell for Weighing Scale (B718)

Name: Shear Beam Load Cell for Weighing Scale (B718)
Brand: all-electronics-online.com
SKU: 820863955
Availability: InStock
Rating: 4.4 (142 reviews)

Price:	US $ 18-20/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B718
Capacity:	10-25,40-50se,50-75klb 100-125,200klb
Custom:	Size and Accuracy Could Be Customed
Pattern:	Single Point
Out-Wire:	5 Wires
Feature:	High Precision
Production Process:	Strain Gauge
Material:	Aluminum

Product Description

1. Name:0.1,0.15,0.2,0.25,0.3,0.4,0.5,0.75,1,1.5,2,3,5,7,10t high accuracy steel single ended shear beam Load Cells
2. Material: Stainless steel or alloy steel

3. Capacity:0.1,0.15,0.2,0.25,0.3,0.4,0.5,0.75,1,1.5,2,3,5,7,10t
4. Accuracy: C3
l Made of stainless steel.
l High accuracy, high side load tolerance
l Easy to install, IP65 protection
l Mainly used for electronic scales, truck scale and industrial weighing systems

5. Datasheet

Number	Specifications	/Technique
1	Capacity(t)	0.1,0.15,0.2,0.25,0.3,0.4,0.5,0.75,1,1.5,2,3,5,7,10
2	Accuracy class	C2/C3
3	Rated output	3.0±0.008
4	Zero balance	±1.0%F.S.
5	Maximum number of verification intervals	2000 / 3000(n max)
6	Minimum load cell verification interval	5000 / 10000(v min)
7	Combined error	±0.03%F.S. / ±0.02%F.S.
8	Creep(30min)	≤±0.024 / ±0.016%F.S.
9	Temp.effect on output	≤±0.017 /0.011%F.S./10ºC
10	Temp.effect on zero	≤±0.023 /0.015%F.S./10ºC
11	Input impedance	350±3.5Ω
12	Output impedance	350±3.5Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	5~12V
15	Maximum excitation	18V
16	Compensated temp range	-10~40ºC
17	Operation temp range	-35~65ºC
18	Safe overload	150%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	Φ5×6000mm
21	Material	Stainless Steel
22	IP Class	IP67

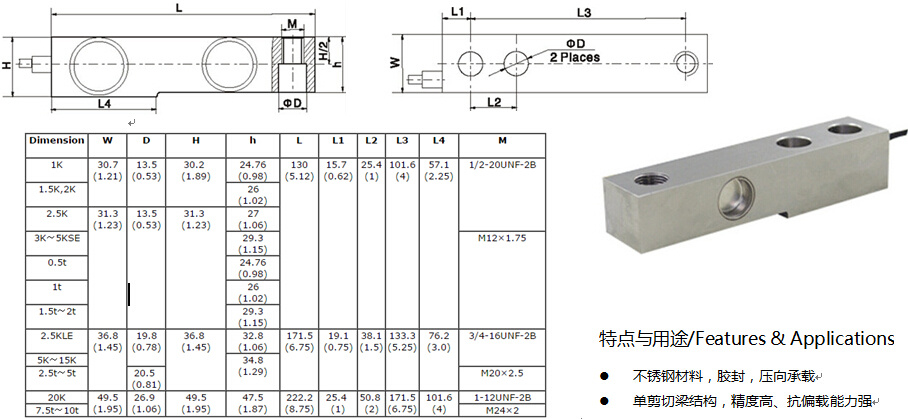

6. Instruction

Made of stainless steel, potted by adhesive, oil-proof, waterproof, anti-corrosive gas and medium making it suitable for all kinds of environments.
Single shear beam, High accuracy, high side load tolerance
Easy to install, IP67 protection
Mainly used for electronic scales, automobile testing facilities, hopper scales, belt scales and industrial weighing systems

Need something special or a completely customized design? Contact BRANS to discuss your particular application requirements. www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
