Sheet-Shaped Terminal Lug Types, Terminal Lug Sizes

Name: Sheet-Shaped Terminal Lug Types, Terminal Lug Sizes
Brand: all-electronics-online.com
SKU: 784550805
Availability: InStock
Rating: 4.4 (48 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	DBV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Dbv
Materials:	Copper
Shapes:	Sheet

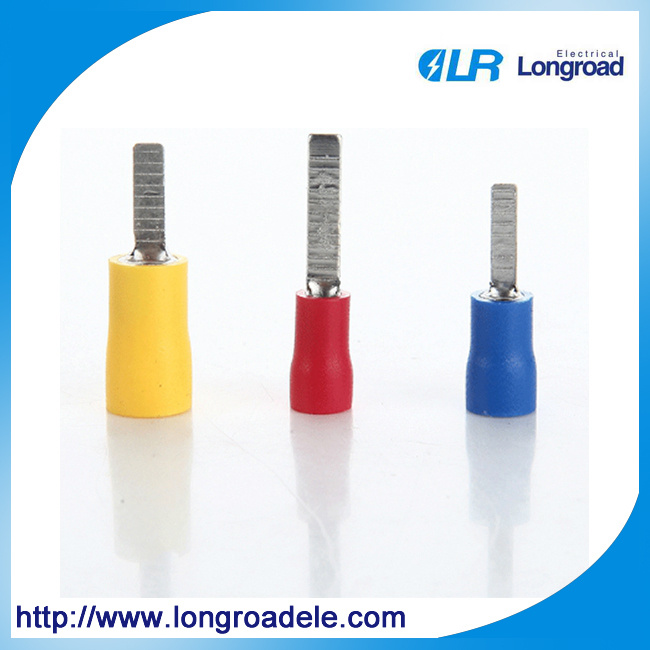

Name:	Sheet-Shaped Insulating Terminal
Material:	Copper
Application:	Conduct Electricity
Type:	Insulated Terminal
Brand:	Tengen

Product Description

Specifications

MAXIMUM ELECTRIC CURRENT:

A.W.G.	22	20	18	16	14	12	10
AMP.	9	12	17	18	30	35	50

MAXIMUM ELECTRICAL RATING: 105°C 600 VOLTS MAX
INSULATION MATERIAL: NYLON
INSULATION COLOR:
22-16A.W.G.: RED 16-14A.W.G.: BLUE
12-10A.W.G.: YELLOW
TERMINAL MATERIAL: COPPER

Conductor cross section: 0.5 - 1.5 mm ² (AWG 22 U.S. - 16) Maximum current: Imax = 19AMaterial: copper Thickness: 0.75mm
Type	Size					Color
Type	B	L	F	H	DΦ	Color
DBV 1.25 - 9	2.8	19.0	9.0	10.0	4.3	Red
DBV 1.25 - 10	2.3	20.0	10.0
DBV 1.25 - 11	3.0	21.0	11.0
DBV 1.25 - 14	3.0	24.0	14.0
DBV 1.25 - 18	2.3	28.0	18.0

Conductor cross section: 1.5 - 2.5 mm ² (AWG 16 - 14) Maximum current: Imax = 27A Material: copper Thickness: 0.8mm
Type	Size					Color
Type	B	L	F	H	DΦ	Color
DBV 2 - 9	2.8	19.0	9.0	10.0	4.9	Blue
DBV 2 - 10	2.4	19.0	9.0
DBV 2 - 14	2.4	24.0	14.0
DBV 2 - 18	2.4	28.0	18.0

Conductor cross-section: 4 - 6 mm ² (AWG 12 - 10) Maximum current: Imax = 48A Material: copper Thickness: 1.0mm
Type	Size					Color
Type	B	L	F	H	DΦ	Color
DBV 5.5 - 10	2.8	22.5	10.0	13.0	5.6	Yellow
DBV 5.5 - 14	4.5	26.5	14.0
DBV 5.5 - 18	4.5	30.5	18.0
