| Prod Model: |
Coaxial Cable |
| Application: |
Local Communication Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Cat5e |
| Wire Core Material: |
Bc/CCA/CCS/Ccag |
| Model: |
Rg59 Coaxial Cable |
| Brand: |
ADP/OEM |
Product Description
Specifications
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70,75
9) Jacket :PE or PVC
10) OEM and Customer's designation are welcome
Structural parameter
Conductor | Material | CCS(15%-30%) |
Nom.Dia. | 0.81mm |
Dielectric | Material | Foam PE |
Nom.Dia. | 3.50mm |
Shield | Material | 17mmAl bonded foil+96*0.12mmAlloy wire |
Coverage | 40%-95% |
Jacket | Material | PVC/PE |
Nom.Thick. | 0.80mm |
Nom.Dia. | 6.91mm |
Electrical performance
Nominal Impedance(ohm) | 75±2 |
Nominal Velocity of Propagation(%) | 85 |
Nominal Capacitance(pF/m) | 50 |
Sparker Test(VAC) | 4000 |
SRL(dB) | 20 | 20 |
Attenuation(68°F(20°C)) | Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) |
5 | 0.58 | 1.90 |
55 | 1.6 | 5.25 |
187 | 2.85 | 9.35 |
300 | 3.55 | 11.64 |
450 | 4.4 | 14.43 |
600 | 5.1 | 16.73 |
750 | 5.65 | 18.54 |
865 | 6.1 | 20.01 |
1000 | 6.55 | 21.49 |

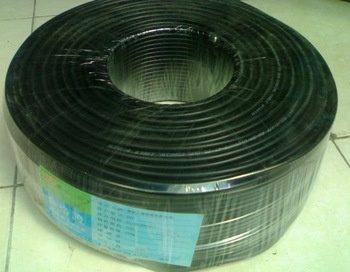

Product show
Packing &delivery
1) Length100m/roll, other length is available according to clients request.
2) Packing: PE film+outer carton
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C
