| Prod Model: |
TK105 |
| Certificate: |
Ce FCC |
| Warranty Time: |
1 Year |
| Network: |
GSM/GPRS |
| Weight: |
120g |
| Size: |
92*71*26mm |
| GPS Accuracy: |
5m |
| Band: |
850/900/1800/1900MHz |
| Power: |
12-24V DC |
| OEM/ODM: |
Support Customized |
| Apllication: |
Vehicle Fleet/Logistics/Vehicle Rental (12-24V) |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
Tk105 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
ISO 9001 Ce FCC CCC |
Product Description

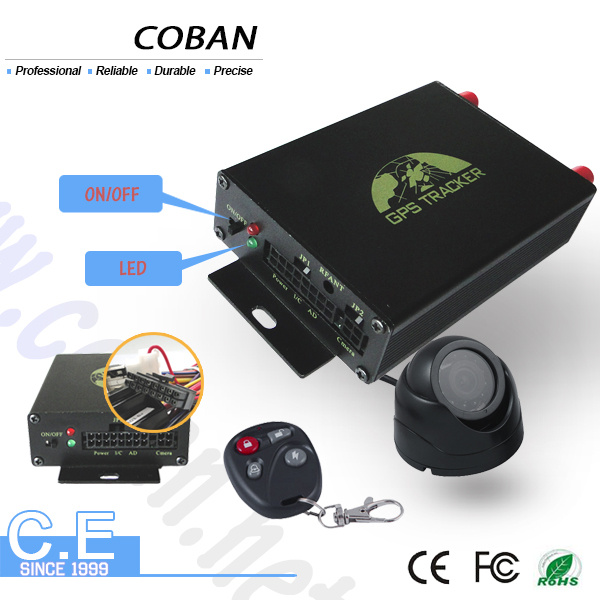

Shenzhen coban tk105 gps vehicle tracker, dual sim card with camera snapshot General intrduction:
GPS tracking unit is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals. The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit. This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.
GPS tracker GPS105AB remote engine stop+fuel level sensor + temperature sensor + Camer /RFID+ SD Memory card + shock sensor
1. Auto photograph
2. Auto tracking continuously
3. Auto store the tracking information with SD card
4. Support data upload to monitor platform
5, Geo-fence
6. Real-time tracking online
7. Support free PC platform and web-server
8. SOS panic
Features:
1)Camera/RFID function (Option);
2)Support Fuel Sensor option to protect the fuel be stolen;
3)Support Temperature Sensor (option) that device will send alerts when
The temperature excess particular temperature;
4)Support SD Card (option) for Location Memorization
5)Absolutely Street address locating;
6)Web online tracking platform & mobile app support Android and IOS free for one year
7) Support both GPS / LBS(Local based service) positioning ways.
8) Support Anti-theft (Door/Trigger Emergency Alerts);
9) Support Remote Car Engine On / Off function;
10) Support power disconnect alerts/Low power alerts
11) Support SMS/GPRS/Internet Network data transmission
12) Support GPRS on-line and GPRS re-connected automatically;
13) Compatible with the original vehicle anti-theft alarm;
14) Support SMS / GPRS dual-mode switching
15) Support configure by remote terminal.
16) Support for point-to-point, point to group, group-to-group monitoring.
17) Set multiple functions of security, positioning, monitoring (Voice) surveillance, photograph, emergency alarms and tracking in its entirety.
Multiple tracking ways:
1)SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2)Absolute street address by SMS
3)Free PC based tracking application

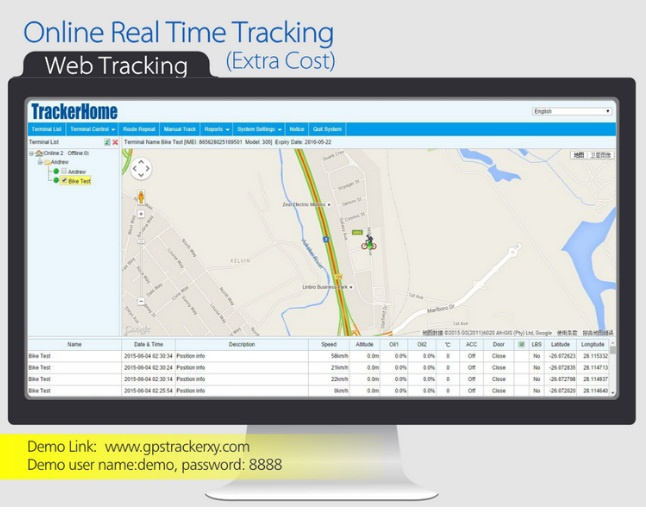

Web online tracking: www.gpstrackerxy.com
Account; DEMO Password: 8888
Mobile App demo
Application
Used widely for vehicle and other moving objects tracking. Real-Time Vehicle Tracking Solutions For Business
1)Live Fleet Tracking Systems: Engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.
2)Boost Employee & Vehicle Efficiency: By utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit.
3)Auto Theft Security: Vehicle locator systems can protect all of your companies mobile assets. Easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones. Don't let your business operations be slowed down by theft! With GPS trackers securing your company vehicles, automobile theft will be a thing of the past!
Specifications
| Content | Specifications |
| Size | 92*71*26mm |
| Weight | 120g |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V/24V |
| Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation temp | -20°C to +65°C |
| humidity | 5%--95% non-condensing |

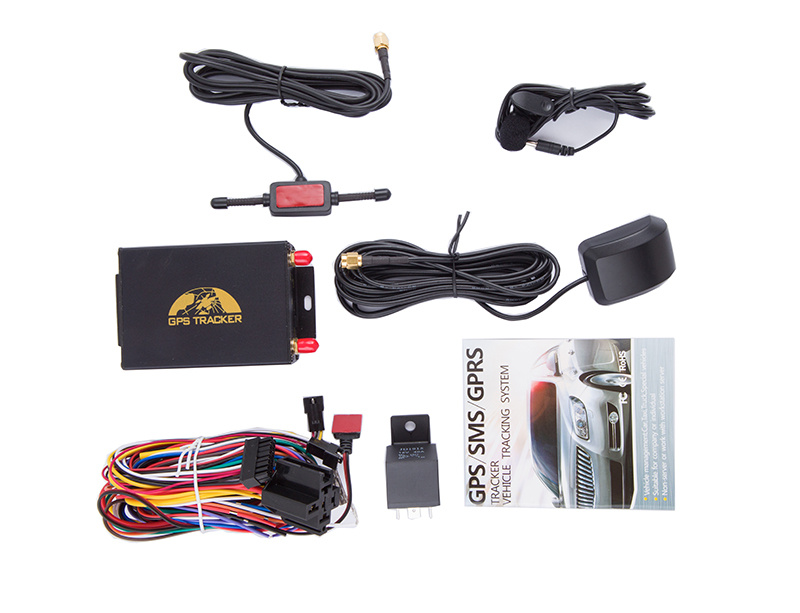

Packaing list:
Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
1. GPS + LBS double solution,exact street address | if not GPS Fix, GSM message LAC code or tracking by LBS in GPRS mode |
| 2. Auto track continuously | - Track with limited times upon time interval
- Track with unlimited times upon time interval
- smart track upon time and distance interval
|
3.Turning points update automatically | vehicle changing driving direction,effective in GPRS mode |
4.GPS drift suppression | GPS data stop updating if vehicle is not driving |
5.Data logging or load | |
| 6.Alarms | |
| 7.Sleep Mode | No sleep/Sleep by time/Sleep by shock/ Deep sleep by shock/Awake according to schedule |
8. Real time tracking via SMS or GPRS | (TCP/UDP) |
9.Track on demand by calling or sms comamnd | |
10. Live http google map link in message | |
11.Five authorized phone numbers | |
12. Voice Surveillance | monitor |
13.Easy switch for track or Monitor | |
New Functions |
14.ACC work and alarm |
15.Cut off the Oil and Power,Engine stop and resume |
| 16.Fuel sensor, Fuel alarm |
| 17.Remote controller for option |
| 18.Arm/disarm/silent mode/ |
| 19.Door oopen alarm,external shock sensor alarm, Accident alarm |
| 20.Speed detector (speed recording,kilometrage report,governor mode) |
| 21.Vehicle maintenance notification |
| 22.RFID |
| 23.Take photo |
| 24.Temperature alert |
| 25.Electric lock and Vapor lock swith |
| 26.Supports dual SIM card |
