Prod Model:	FLCA-132
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PCB Type:	Electronic PCB Assembly
Board Thickness:	1.6mm
Copper Thickness:	1oz
Solder Mask:	Green
Size:	Custom
Surface Treatment:	HASL Lead Free
Stencil:	We Do
Service:	One Stop
Componnets:	We Purchase or Buy by Yourselt
Samll Order:	Accepted
Metal Coating:	Copper

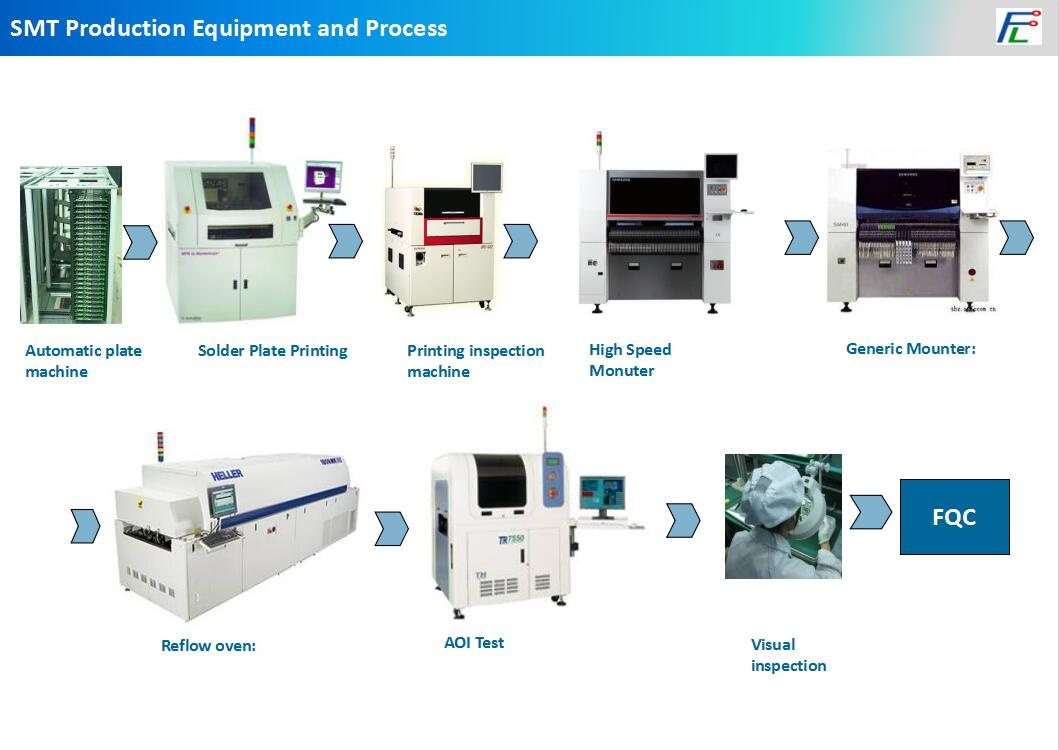

Mode Of Production:	SMT
Layers:	Multilayer
Base Material:	FR-4
Certification:	UL
Customized:	Customized
Condition:	New

Product Description

Shenzhen Latest Technology Professional PCB&PCBA Double-Sided PCB&PCBA Manufacturer for Audio Amplifier Circuit Design


Fastline Circust provides PCB and PCBA service, and can meet all your PCB and PCBA assembly request, Pls provide your PCB or PCBA file to us for details. Thanks

PCB board manufacture and PCB assembly service:
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality, competitive Price & Best Service
4.100% E-test
Testing Procedures For PCB Board:
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
- Visual Inspection
- Flying probe
- Impedance control
- Solder ability detection
- Digital metallogenic microscope
- AOI (Automated Optical Inspection)

Quotation Requirement:

-Following specifications are needed for quotation:
1. Quantity
2. Base material
3. Board thickness
4. Copper thickness
5. Surface treatment
6. Color of solder mask and silkscreen

Delivery Time for PCB board:
Lead time:
Quickturn for sample: 2 layers 24 Hours, 4 layers 2 days or 3 days.
General sample: 3 - 5days /
Mass production: Within 7 days

Shipping Method and Payment terms:

1. By DHL, UPS, FedEx, TNT using clients account.
2. DHL, UPS, FedEx, TNT forwarder of China.
3. We could ship the parcel by Russia Special Air Line for
Russian customer
(No TAX in your there, 3 - 10 days to Moscow, 15-20 days to other city)
4. By sea or air for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. Payment By Paypal, T/T, West Union, etc


PCB Prototype Lead Time:
item	General time	Quick Turn
1-2	4 days	1 days
4-6 Layers	6 days	2 days
8-10 Layers	8 days	3 days
12-16 Layers	12 days	4days
18-20 Layers	14 days	5 days
22-30 Layers	16 days	6 days
32-48 Layers	18 days	8 days
Note: Base on all data received by us and must be complete and problem free, Lead time is ready to ship time.



PCB Manufacture Capability and Technical Data:

Item	Manufacture Capability
Layers	1-26 Layers
Material Types	Fr-4, Fr-5, High-Tg, Halogen Free, Rogers, Isola, Taconic, Arlon Teflon,                                                                                           Aluminum Based
Max. Panel Dimension	39000mil * 47000mil  / 1000mm * 1200mm
Outline Tolerance	± 4mil ± 0.10mm
Board Thickness	8mil-236mil
Board Thickness Tolerance	mil-236mil / 0.2mm-6.0mm
Board Thickness Tolerance	± 10%
Dielectric Thickness	3mil-8mil / 0.075mm-0.20mm
Min. Track Width	3mil / 0.075mm
Min. Track Space	3mil / 0.075mm
External Cu Thickness	HOZ-6OZ / 17um~210um
Internal Cu Thickness	HOZ-6OZ / 17um~210um
Drilling Bit Size ( CNC )	6mil-256mil / 0.15mm-6.50mm
Finished Hole Dimension	4mil-236mil / 0.1mm_6.0mm
Hole Tolerance	± 2mil / ± 0.05mm
Hole Position Tolerance	± 2mil / ± 0.05mm
Laser Drilling Hole Size	4mil / 0.1mm
Aspect Ration	12: 1
Solder Mask	Green, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge	2mil / 0.050mm
Plugged Hole Diameter	8mil-20mil/ 0.20mm-0.50mm
Impedance Control V-scoring	± 10%
Surface Finishing	HASL, HASL(lead Free), Immersion Gold, Immersion Tin, Immersion Silver, OSP, Hard Gold( up to 100u" )

PCB advantages:
1 R&D team support
2 UL, RoHS,ISO9001,SGS
3.IPC class2
4.Advanced production line and promtly delivery.
5,Honest Credibility in China.
6.Professional and abundant experience in PCB.
7.Competitive price and good quality.
8. Excellent after-sales service.

Trade Terms:
7 We have no MOQ.
8 Payment Term:T/T or Western Union.
9 Delivery ways:UPS,FEDEX,DHL etc,door to door service by sea or air etc.

Application:
1. Consumer electronics.
2. Industrial control.
3. medical instrument.
4. fire service implement etc.

Our Service:
1.Reply your enquiry in 2 working hours.
2.Experienced staffs answer all your questions in fluent English.
3.Customized design is avaliable OEM&ODM are welcomed.
4. Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to our distributor.




PCB  Prototype  Lead  Time:
item	General  time	Quick  Turn
1-2	4  days	1  days
4-6  Layers	6  days	2  days
8-10  Layers	8  days	3  days
12-16  Layers	12  days	4days
18-20  Layers	14  days	5  days
22-26  Layers	16  days	6  days
Note:   Base  on  all  data  received  by  us  and  must  be  complete  and  problem  free, Lead  time  is  ready  to  ship  time.

Company Introduction

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!

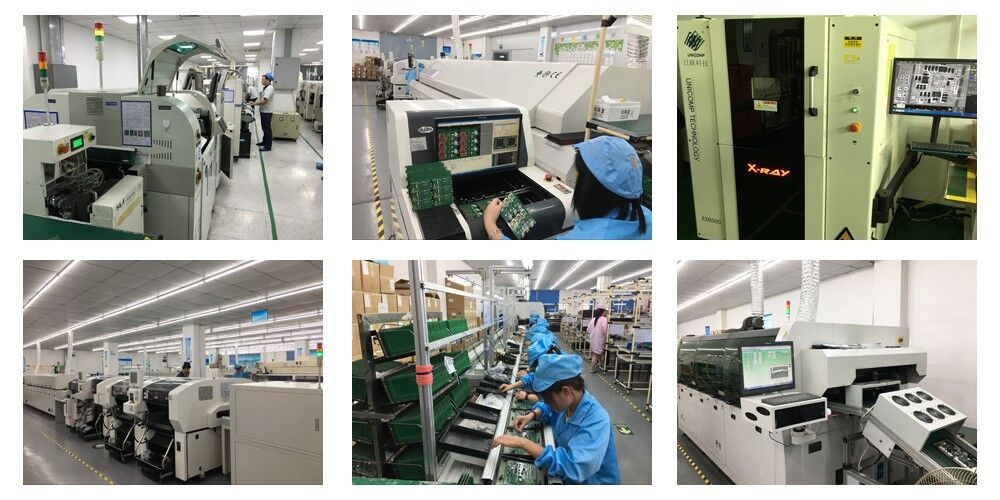

Our Factory

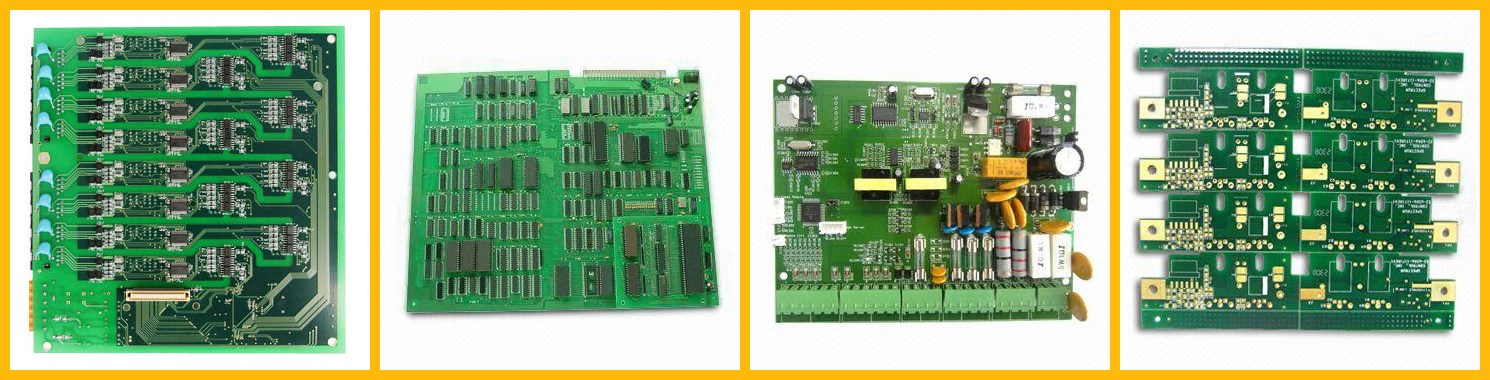

 FR4 PCB

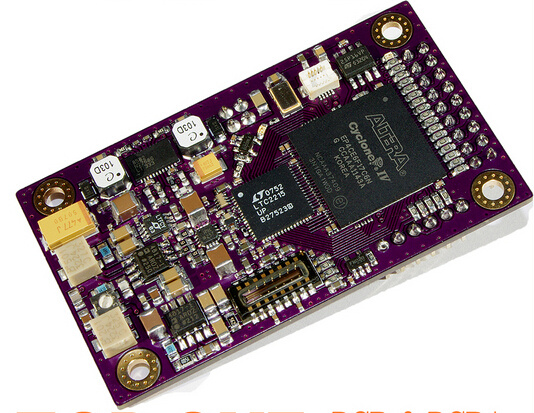

PCBA



FAQ

Q1: Are you a factory or trade company?
A1: We have our own PCB manufacturing & Assembly factory.

Q2: What's your minimum order quantity?
A2: Our MOQ is not the same based on different items. Small orders are also welcome.

Q3: what file we should offer?
A3: PCB:Gerber file is better,( Protel,power pcb,PADs file), PCBA : Gerber file and BOM list.

Q4: No PCB file/GBR file, only have the PCB sample, can you produce it for me?
A4: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q5: What any other information should be offered except for file?
A5:Following specifications are needed for quotation:

a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity

Q6:I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!

Q7: What is delivery terms and time?
A7: We usually use FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.

More information about PCB, please contact with us!

Salesman: Cassie
Tel: +86 755 2332 9221
Fax: +86 755 2332 9659
Cellphone:+86 18028775532
Our website:http://www.fastlinepcb.com
