Shenzhen KOC Communication Co., Ltd. >> Shenzhen Manufacturer Fiber Optic Patch Cord Sc/Upc-Sc/Upc Multi-Mode Duplex

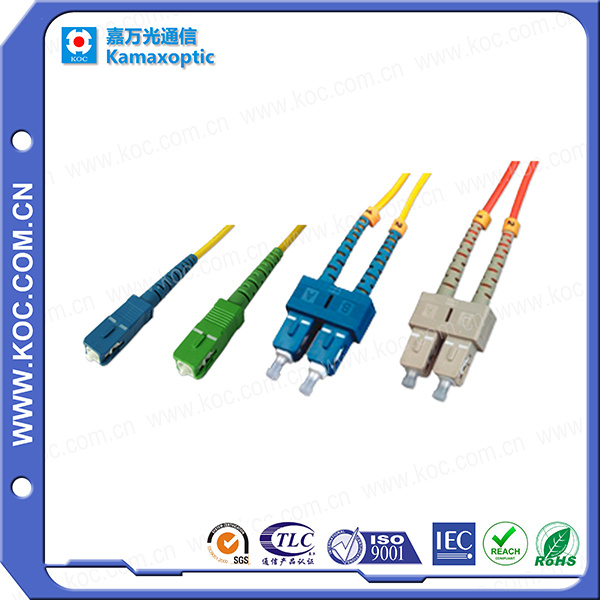

Shenzhen Manufacturer Fiber Optic Patch Cord Sc/Upc-Sc/Upc Multi-Mode Duplex

Shenzhen Manufacturer Fiber Optic Patch Cord Sc/Upc-Sc/Upc Multi-Mode Duplex
Price: US $ 1.7-2/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: SC/UPC-SC/UPC multi-mode duplex
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Size: 2.0mm / 3.0mm/ 0.9mm
Cable Jacket: PVC, Lszh, Ofnr, Ofnp, PE
Connector Type: Sc,LC,FC,St,Mu,MTRJ,MPO,MTP
Cable Color: Blue,Green,Aqua,Red,Magenta,Beige
Housing Material: Plastic,Metal
Fiber Type: Single Mode and Multi-Mode
Application: Communication
Type: Multi-mode Fiber
Connection Structure: SC-SC
Certification: ISO9001
Material Shape: Duplex
Brand: Koc

Product Description


APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

FEATURES

Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE

SPECIFICATIONS
 Single modeMultimode
Insertion LossTypical≤0.2dB, Maximum≤0.3dB≤0.25dB
Return Loss≥50 dB (PC)
≥60 dB (APC)

Repeatability≤0.1
Durability≤0.2 dB typical change, 1000 matings
Interchangeability≤0.2dB
Tensile strength>70N
Operating Temperature-40 to + 85°C-40 to + 85°C



ORDERING OPTIONS
Connector ColorBoot (cable) SizeBoot ColorFiber TypeCable numberApplicationLength
Beige0.9mmBeige9/125μm (SM)SimplexPCCustomized
Blue2.0mmBlack50/125μm(MM)DuplexAPC
Green3.0mmBlue62.5/125μm(MM)Fan-out (4f)
  Green Fan-out (6f)
  Gray Fan-out (8f)
  Red Fan-out (12f)
  White Fan-out (24f)



Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
