Ningbo Fulsan Trading Co., Ltd. >> Shielded 4 Cores 6 Cores Security Alarm Cable with CE Approved (SH-A6002)

Shielded 4 Cores 6 Cores Security Alarm Cable with CE Approved (SH-A6002)

Shielded 4 Cores 6 Cores Security Alarm Cable with CE Approved (SH-A6002)
Price: US $ 0.2/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Meter
Pay Type: L/C,T/T,Western Union
Prod Model: SH-A6002
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cores: 2 Cores, 4 Cores, 6 Cores and 8 Cores
Application: Submarine Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: VDE
Type: Alarm Cable
Model: Security Alarm Cable
Brand: Fulsan

Product Description

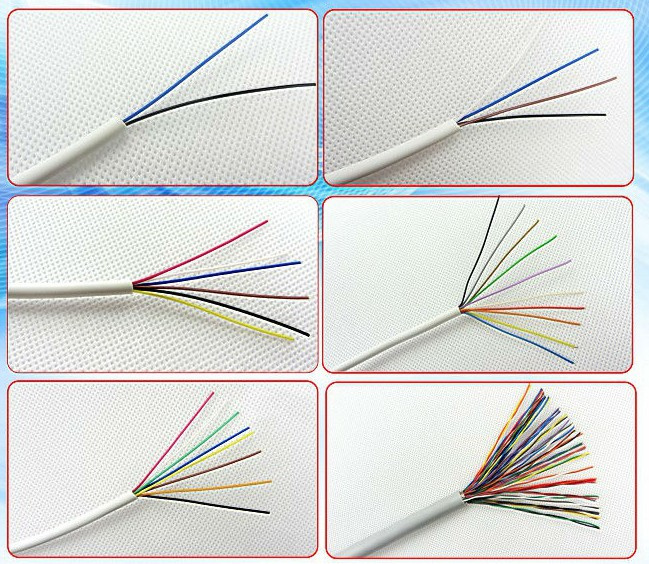

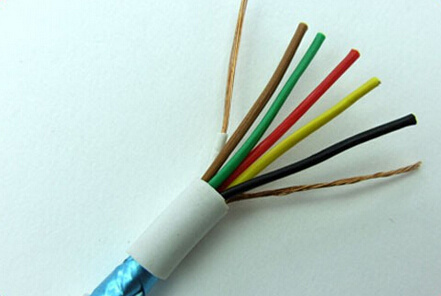

Shielded alarm cable:

Features
1. Conductor: 7x0.20mm tinned copper wire, can 4, 6, 8, 10 and 12 cores.
2. PVC insulation
3, Aluminum foil shielded
3. PVC jacket


Specifications:

1.) Conductor: bare copper or tinned copper or CCA or CCS conductor

2.) Insulation: PVC,PE,HDPE

3.) Separator: PE tape

4.) Jacked: PVC-flame proof; LSZH, UL-CM,CMR

5.) Cores: 2, 4, 6, 8, 12, 14,16,18,20

6.) Used for alarm mechanisms or security system



Standards:  BS4737 BS6360 BS6746





Nom.DC Resistance per Conductor@20

6.43Ohms/Kft.nom.

CapacitanceBetween Conductors@1KHZ

35pF/ft.nom.

Operating Voltage

300V/RMS max

Temperature Rating

-20oC to 60oC





Type

  Normal Area

(mm2)

    Specifications

(mm)

Insulation Dia

(mm)

Outside Diameter.

(mm)

Screened

2x0.22

2x7/0.20

1.1

3.4

Screened

4x0.22

4x7/0.20

1.1

3.9

Screened

6x0.22

6x7/0.20

1.1

4.5

Screened

8x0.22

8x7/0.20

1.1

4.8

Screened

10x0.22

10x7/0.20

1.1

5.6

Screened

12x0.22

12x7/0.20

1.1

5.8

Screened

14x0.22

14x7/0.20

1.1

6.1

Screened

16x0.22

16x7/0.20

1.1

6.5

Screened

18x0.22

18x7/0.20

1.1

6.9

Screened

20x0.22

20x7/0.20

1.1

7.3

Screened

30x0.22

30x7/0.20

1.1

8.9

Screened

40x0.22

40x7/0.20

1.1

10.8

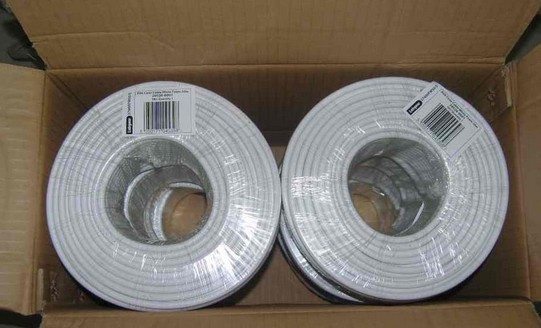

Packing: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll other lengths available according to client's request

Usage: Securitity alarm
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe













Established in 1992, Ningbo Fulsan Trading Co., Ltd. is a modern enterprise specialized in research, develop and produce all kinds of telecommunication products. It's main products include HDMI cable, Scart Cable, computer connector, Audio and Video Cable, USB cable, and other accessories. The products are totally exported to the world market especially to US., Europe, Middle East Asia, Russia and has earned high reputation from our customers.

The company owned well-trained and skillful personnel, including outstanding engineer and technician team and managers and quality control team as well as 1200 workers. The company occupied 200, 000 sqms working area and has introduced many modern and advanced manufacturing machines and inspection equipment. The total assets has reached 52 million and was honored as Hi-Tech Enterprise and Strenth model factory by Zhejiang Government.

The principle of our company is " Guided by science and technology, take production and quality as the foundation, investment and management as the guarantee, with the backing of brand and marketing for omnidirectional development"...The company has passed the certification of ISO9001quality system and ISO14001 environment system. All the products are accordance with RoHS Standard while the HDMI cable also got the HDMI Association certification. Our brand " FULSAN" Has won a good reputation among our customers.

Looking into the future, we will always adhere to the managing idea of " Developing the industry, serving and repaying the society". We are willing to advance hand in hand with friends from all walks of life for mutual benefit.
