| Prod Model: |
shipboard cable |
| Model Number: |
Cyv80 Cjv90 Cjy85 Cjy95 |
| Conductor Matrial: |
Copper or Tinned Copper |
| Certificate: |
Gl Nk Dnv ABS BV Kr Lloyd's Register CCS |
| Conductor: |
Copper, Tinned Copper |
| Insulation: |
Epr XLPE |
| Inner Sheath: |
PVC |
| Braid: |
Metal Wire Braid |
| Standard: |
IEC60092, IEC60332 |
| Sample: |
Free |
| Price: |
Factory Price |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper Clad Aluminum |
| Insulation Material: |
PVC |
| Certification: |
Kema, TUV, Psb |
| Brand: |
Rneda |
| Application: |
Shipboard, Power, Communication, Modern Warship |
Product Description
Packaging & DeliveryPackaging Details: wooden drum, steel wooden drum for 0.6/1kV PVC Insulated Copper Tape Shield PVC Sheath Control Cable (CVVS, CCVS, CCES, TFR-CVVS, HFCCOS)
Delivery Time: within 20days when receiving your depositectric copper wire shipboard pvc insulated cable power cable for rice cookerProduct Description0.6/1KV 16mm2 25mm2 35mm2 EPR insulated naval flexible power cable

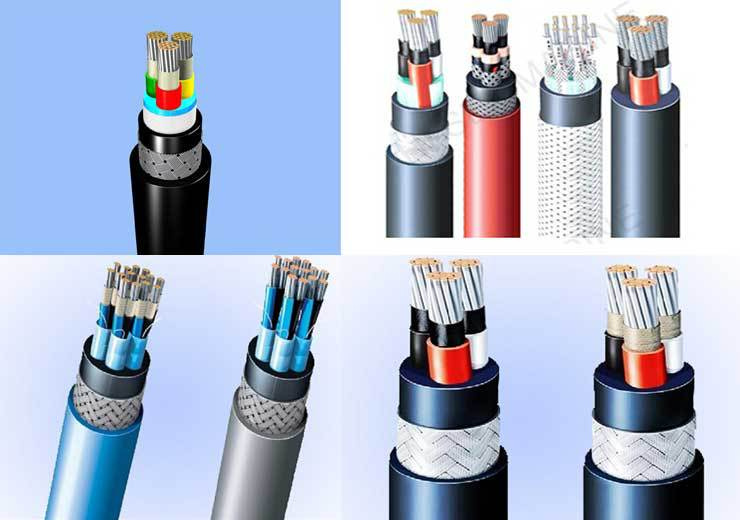

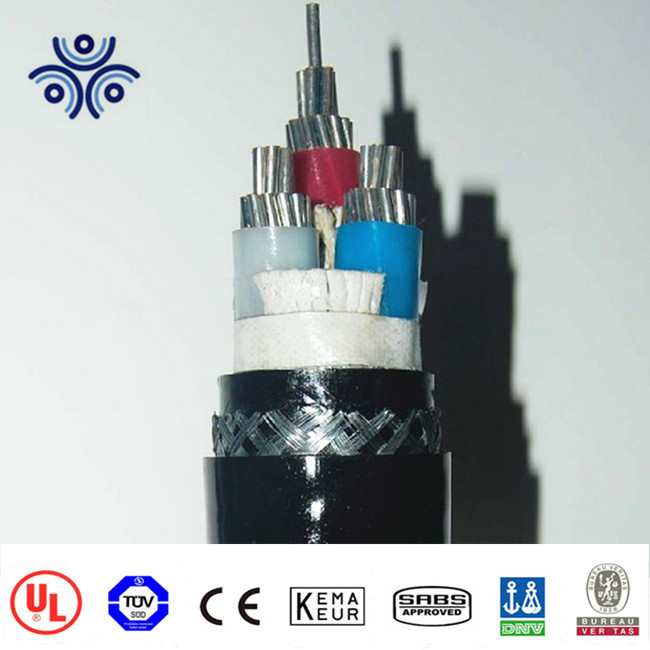

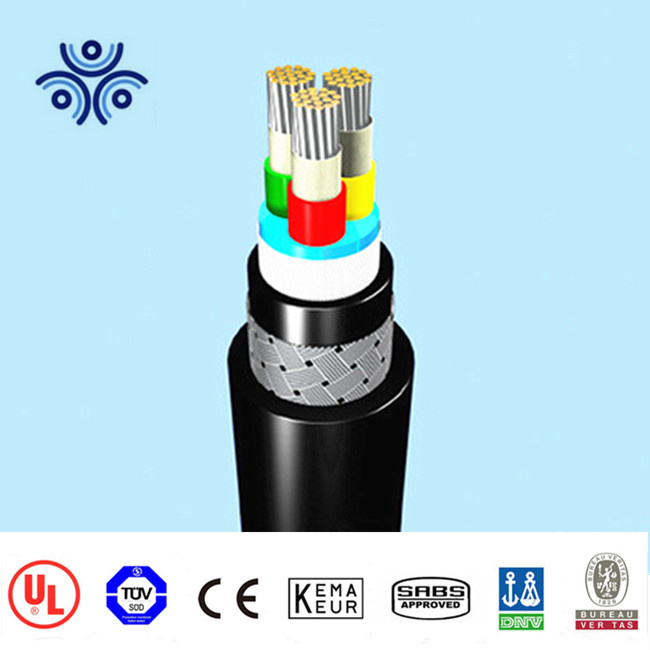

Construction:
The company have been approved by the Classification of Ship of China (CCS) in 2001and have been approved for rated voltage 1KV and 3KV,6-15KV power cable, rated voltage 150/250V control and instrumentation circuit cable by DEE NORSKE VERITAS CALSSIFICATION (DNV) in 2004.We have acquired Type Approval Certificate. Our shipboard cable cover 2 series altogether over 3000tyoe and dimensions that are extensively used in ship' power, communication, navigation system and modern warship. The products can also use in oil platform, nuclear power, crane, skyscraper and other electric project.
1. Conductor: tinned copper
2. Insulation: EPR /XLPE
3. Tape
4. Individual screen: tinned copper wire braided
5.Tape
6. Inner sheath: PCP/PO (SHF1, SHF2)
7. Screen/Armored: tinned copper wire braid
(Galvanized steel wire braided)
8. Outer sheath: PVC/PO (SHF1, SHF2)
Flammability Features:
NA: Fire-resisting cable
NC/NSC: Fire-resisting cable halogen-free, low-smoke, low-toxicity.
Specifications:
Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
Nominal Cross-section Areas: 1 mm2, 1.5mm2, 2.5mm2
2 Standards applied
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2
3 Type and NamePart one: Shipboard power cable rated voltage 0.6/1kV | Cable type | Description |
| CJV/DA/SA | XLPE insulated PVC outer sheath shipboard power cable, type DA,SA |
| CJY/SC | XLPE insulated PO outer sheath Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard power cable, type SC |
| CJVR/DA/SA | XLPE insulated PVC outer sheath shipboard flexible power cable, type DA,SA |
| CJYR/SC | XLPE insulated PO outer sheath Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible power cable, type SC |
| CJV90DA/SA | XLPE insulated PVC inner sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CJV80/DA/SA | XLPE insulated PVC inner sheathed tinned copper wire braided shipboard power cable, type DA,SA |
| CJY90/SC | XLPE insulated PO inner sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard power cable, type SC |
| CJY80/SC | XLPE insulated PO inner sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard power cable, type SC |
| CJVR90/DA/SA | XLPE insulated PVC inner sheathed galvanized steel wire braided shipboard flexible power cable, type DA,SA |
| CJVR80/DA/SA | XLPE insulated PVC inner sheathed tinned copper wire braided shipboard flexible power cable, type DA,SA |
| CJYR90/SC | XLPE insulated PO inner sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible power cable, type SC |
| CJYR80/SC | XLPE insulated PO inner sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible power cable, type SC |
| CJV92/DA/SA | XLPE insulated PVC inner sheath galvanized steel wire braided PVC outer sheath shipboard power cable, type DA,SA |
| CJV82/DA/SA | XLPE insulated PVC inner sheathed tinned copper wire braided PVC outer sheath shipboard power cable, type DA,SA |
| CJY93/SC | XLPE insulated PO inner and outer sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard cable, type SC |
| CJY83/SC | XLPE insulated PO inner and outer sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard cable, type SC |
| CJVR92/DA/SA | XLPE insulated PVC inner sheath galvanized steel wire braided PVC outer sheath shipboard flexible power cable, type DA,SA |
| CJVR82/DA/SA | XLPE insulated PVC inner sheathed tinned copper wire braided PVC outer sheath shipboard flexible power cable, type DA,SA |
| CJYR93/SC | XLPE insulated PO inner and outer sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible cable, type SC |
| CJYR83/SC | XLPE insulated PO inner and outer sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible cable, type SC |
| CEF/DA/SA | EPR insulated PCP sheath shipboard power cable, type DA,SA |
| CEH/DA/SA | EPR insulated CSP sheath shipboard power cable, type DA,SA |
| CEV/DA/SA | EPR insulated PVC sheath shipboard power cable, type DA,SA |
| CEF90/DA/SA | EPR insulation PCP inner sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEF80/DA/SA | EPR insulation PCP inner sheath tinned copper wire braided shipboard power cable, type DA,SA |
| CEH90/DA/SA | EPR insulation CSP inner sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEH80/DA/SA | EPR insulation CSP inner sheath tinned copper wire braided shipboard power cable, type DA,SA |
| CEV90/DA/SA | EPR insulation PVC inner sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEV80/DA/SA | EPR insulation PVC inner sheath tinned copper wire braided shipboard power cable, type DA,SA |
| CEF92/DA/SA | EPR insulation PCP inner sheath PVC outer sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEF82/DA/SA | EPR insulation PCP inner sheath PVC outer sheathed tinned copper wire braided shipboard power cable, type DA,SA |
| CEH92/DA/SA | EPR insulation CSP inner sheath PVC outer sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEH82DA/SA | EPR insulation CSP inner sheath PVC outer sheathed tinned copper wire braided shipboard power cable, type DA,SA |
| CEV92/DA/SA | EPR insulation PVC inner sheath PVC outer sheathed galvanized steel wire braided shipboard power cable, type DA,SA |
| CEV82/DA/SA | EPR insulation PVC inner sheath PVC outer sheathed tinned copper wire braided shipboard power cable, type DA,SA |
| CEFR/DA/SA | EPR insulated PCP sheath shipboard power flexible cable, type DA,SA |
| CEHR/DA/SA | EPR insulated CSP sheath shipboard power flexible cable, type DA,SA |
| CEVR/DA/SA | EPR insulated PVC sheath shipboard power flexible cable, type DA,SA |
| CEFR90/DA/SA | EPR insulation PCP inner sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEFR80/DA/SA | EPR insulation PCP inner sheath tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEHR90/DA/SA | EPR insulation CSP inner sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEHR80/DA/SA | EPR insulation CSP inner sheath tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEVR90/DA/SA | EPR insulated PVC inner sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEVR80/DA/SA | EPR insulated PVC inner sheath tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEFR92/DA/SA | EPR insulation PCP inner sheath PVC outer sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEFR82/DA/SA | EPR insulation PCP inner sheath PVC outer sheathed tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEHR92/DA/SA | EPR insulation CSP inner sheath PVC outer sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEHR82/DA/SA | EPR insulation CSP inner sheath PVC outer sheathed tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEVR92/DA/SA | EPR insulation PVC inner sheath PVC outer sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEVR82/DA/SA | EPR insulation PVC inner sheath PVC outer sheathed tinned copper wire braided shipboard power flexible cable, type DA,SA |
Details Show

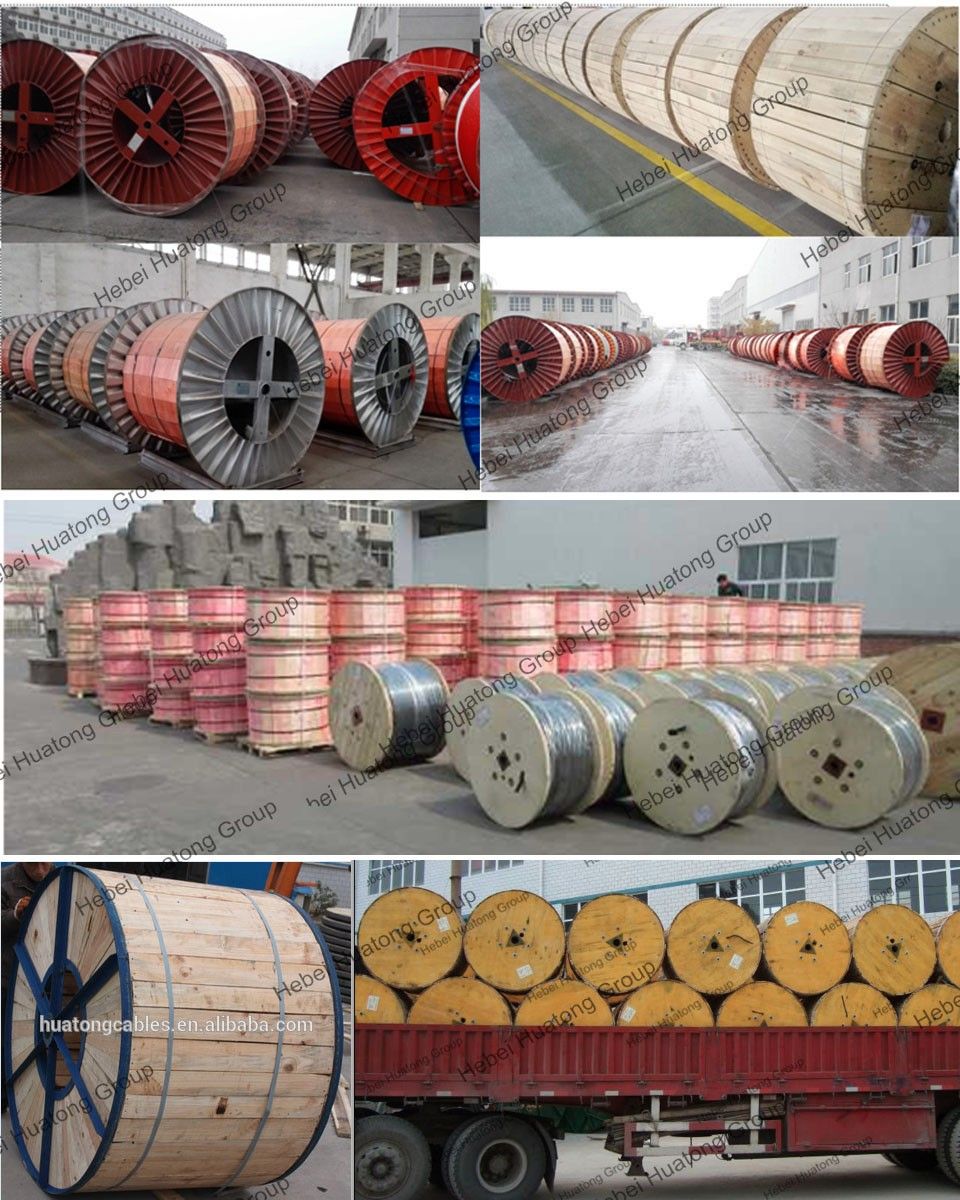

Shipping & Packaging
Certification
We are one of China top rank cable&wire manufacturer.
Our products meet standards of GB, IEC DIN ASTM, JIS,NF, AS/NZS CSA GOST and so on.
we have obtained ISO9001,ISO14001,OHSAS18001,
UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
Our services
1.22 years production experience and 13 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

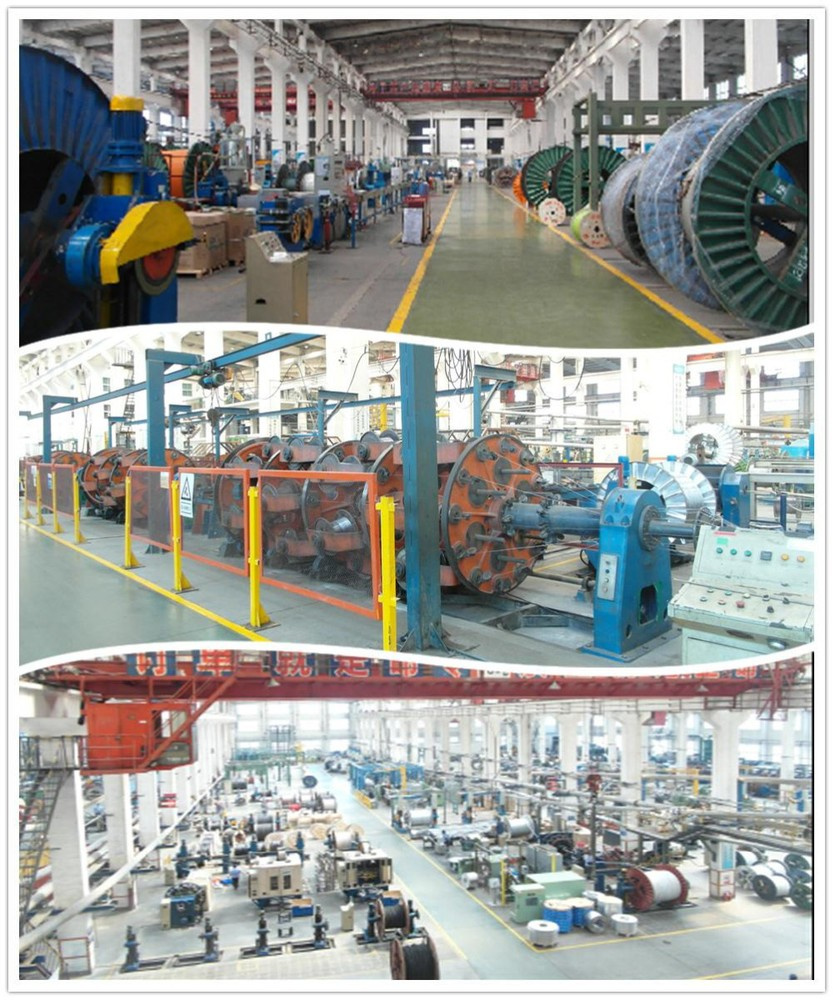

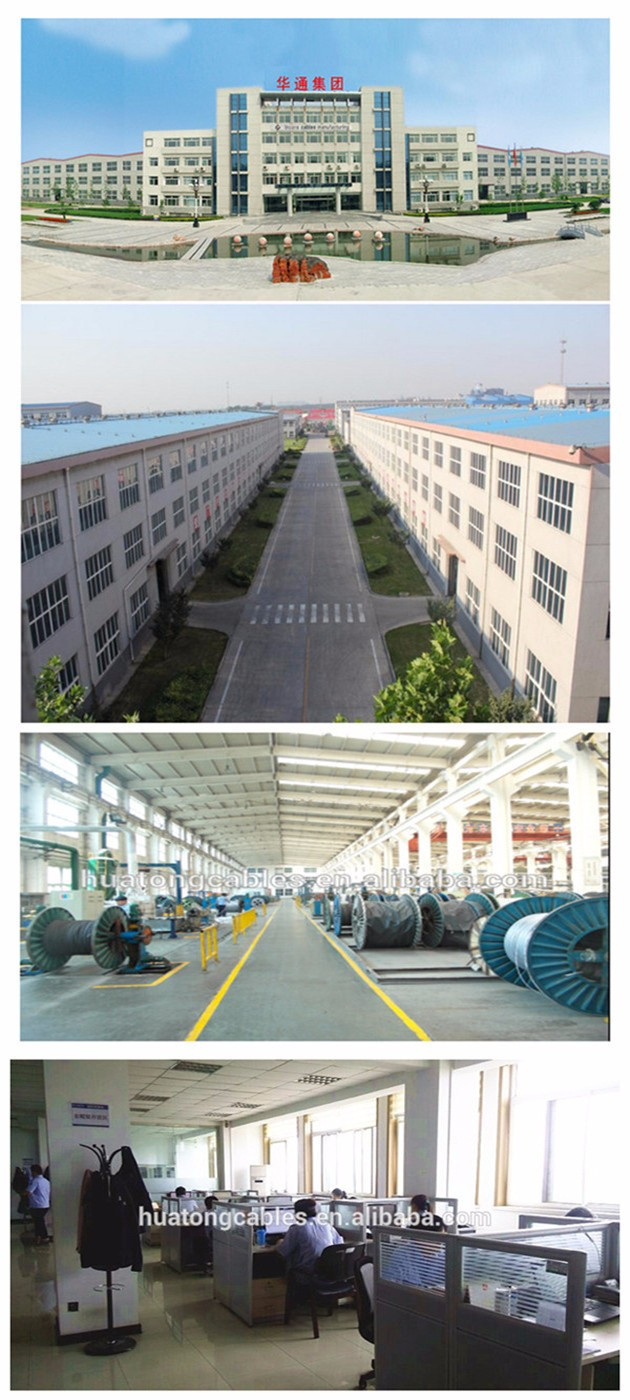

Company Information
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993.
Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables,conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
