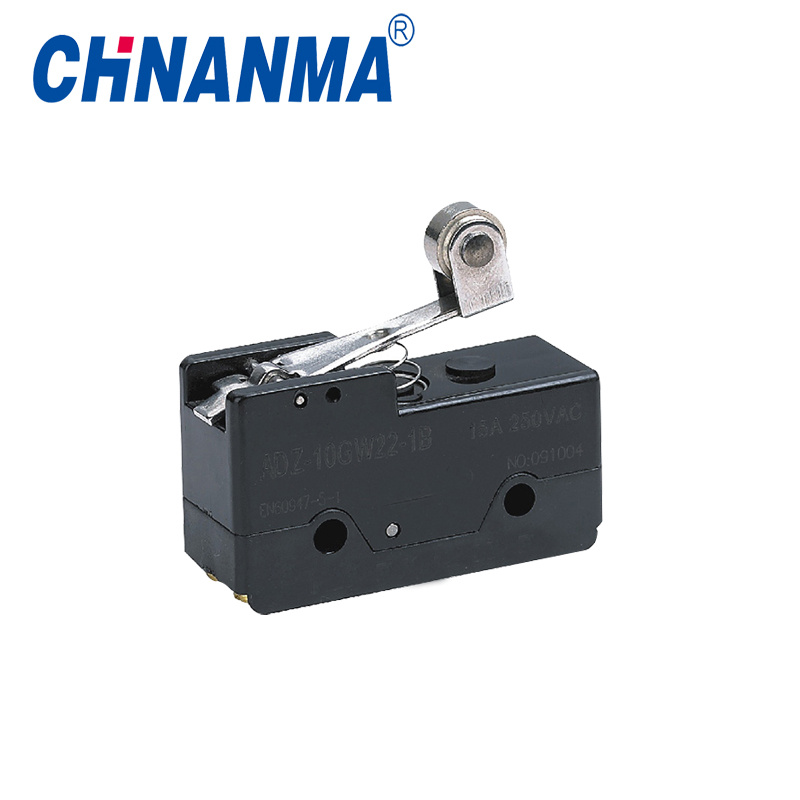

Short One-Way Roller Lever Pivot Type

Name: Short One-Way Roller Lever Pivot Type
Brand: all-electronics-online.com
SKU: 729134712
Availability: InStock
Rating: 4.3 (48 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	15GW2277-B
Pressing Type:	Spring Roller
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Electronic Equipment
Brand:	Chnanma

Product Description

eading to move machine has many catergories,action position is adjustable(such as AZX15GW-B)High switch on and off capacity(15A)
High accuracy
Wide range of operation speed
Every model of AZX15G series has weld end,screw and quich speed end are selective.
The model with A is weld end,with C is quick speed end,black is screw end.

Product characteristics

Model No.	15GW2277-B
Name	Micro switch
Operation speed	0.01mm-1m/sec
Operating frequency	Mechanical:240 operations/minute, Electrical: 20 operations/minute
Contact resistance	15mΩ max.(initial value)
Insulation resistance	100mΩ min.(below 500VDC)
Dielectric strength	1000VAC,50/60HZ for 1 minute between terminals of the same polarity
	1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts
	1500VAC,50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable:1000m/Sec²;Malfunction:300m/Sec²(about 30G'S)
Life	Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above
Weight	About 130 to 190g
Degree of protection	IP65
Payment term	30% deposit in advance,70% before shipment,100% T/T in advance
Certificate	TUV, CCC,CE,ISO9001
Logo	Customized logo with Decal / Frosted / Print are available as request
Design ability	We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
