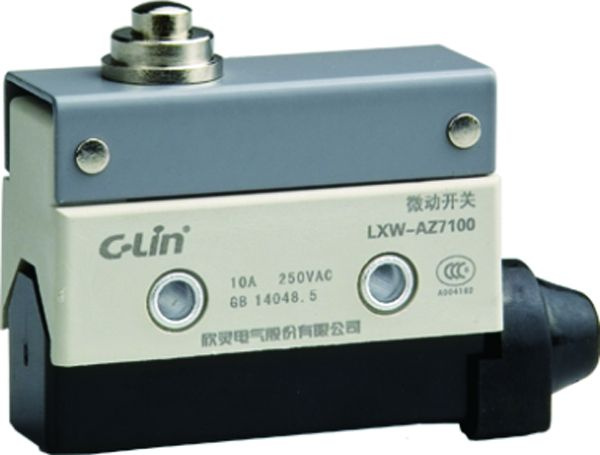

Short Pin Plunger Micro Switch (AZ7100, TZ7100, MN-5100)

Name: Short Pin Plunger Micro Switch (AZ7100, TZ7100, MN-5100)
Brand: all-electronics-online.com
SKU: 695398975
Availability: InStock
Rating: 4.6 (88 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	AZ7100, TZ7100, MN-5100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation Speed:	0.5mm to 50cm/S
Operation Frequency:	120times/Min (Mechanical) 40times/Min(Electrical)
Version:	with Cone Bumper
Contact Resistance:	25m Ohm( Initial Value)
Contact Capacity:	1A 380VAC/220VAC 0.3A 220VDC
Vibration Resistance:	10-55Hz, 1.5mm Double Amplitude
Shock Resistance:	1000m/S2
Ambient Temperature:	Minus 10 to 80 Centigrades
Ambient Humidity:	90% Max
Degree Of Protection:	IP63
Pressing Type:	Push-Button
Size:	Small-Sized
Environment:	≧250℃﹤400℃
Breaking Capacity:	General Type

Product Description

General Introduction
LXW-AZ series microswitch is widely used in food machinery, automatic packaging machinery, machine tool equipment, conveying machinery, automatic production line control, light industry machinery etc.
Approved standards: GB 14048.5, IEC 60947-5-1

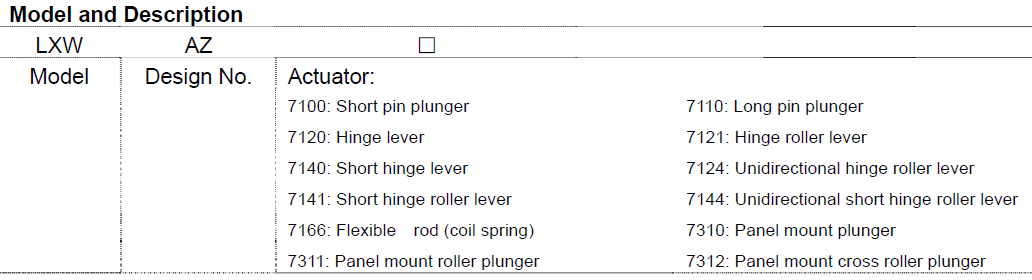

International Model	C. lin Factory Model	OF max.	PT max.	OT min.	OP
International Model	C. lin Factory Model	OF max.	PT max.	OT min.	OP
AZ-7100, TZ-7100, MN-5100	LXW-AZ7100	5.9N (0.6KGF)	2.0 mm	0.8 mm	30.5± 0.8mm
AZ-7110, TZ-7110, MN-5110	LXW-AZ7110	5.9N (0.6KGF)	2.0 mm	5.0 mm	44.5± 1.2mm
AZ-7120, TZ-7120, MN-5120	LXW-AZ7120	5.9N (0.6KGF)	13.5 mm	4.0 mm	25± 1mm
AZ-7121, TZ-7121, MN-5121	LXW-AZ7121	1.8N (0.18KGF)	11.0 mm	3.0 mm	40± 1mm
AZ-7124, TZ-7124, MN-5124	LXW-AZ7124	2.0N(0.2KGF)	11.0 mm	3.0 mm	50± 1.2mm
AZ-7140, TZ-7140, MN-5140	LXW-AZ7140	2.2N(0.22KGF)	8.5 mm	2.5 mm	25± 1mm
AZ-7141, TZ-7141, MN-5141	LXW-AZ7141	2.0N(0.2KGF)	6.5 mm	2.0 mm	40± 1mm
AZ-7144, TZ-7144, MN-5144	LXW-AZ7144	2.7N(0.28KGF)	6.5 mm	2.0 mm	50± 1.2mm
AZ-7130, TZ-7130, MN-5310	LXW-AZ7310	5.9N(0.6KGF)	2.0 mm	6.0 mm	21.8± 1.2mm
AZ-7311, TZ-7311, MN-5311	LXW-AZ7311	5.9N(0.6KGF)	2.0 mm	6.0 mm	33.3± 1.2mm
AZ-7312, TZ-7312, MN-5312	LXW-AZ7312	5.9N(0.6KGF)	2.0 mm	6.0 mm	33.3± 1.2mm
AZ-7166, TZ-7166, MN-5166	LXW-AZ7166	1.2N(0.12KGF)	250 mm	11.0 mm

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
