Short Roller Subminiature Micro Switch
| Price: |
US $ 0.22/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T |
| Prod Model: |
MS2-Z5F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Theory: |
Subminiature Micro Switch |
| Operating Force: |
0.5n~3n |
| Rated Current: |
5A/10A |
| Rated Voltage: |
125/250VAC |
| Connect Forms: |
Spdt |
Product Description
Breif information:Subminiature Micro Switch controls of "On and Off" action. It is easy to manipulate the applications. We could provide you our high quality Microswitch products. Just take one simple action, you can set up all your electronic equipment. All our micro switches are activated by leaver or button. If you like some special forms, please contact us for further custom switches. We, Xiamen Universal Electronic Co., Ltd make our 16A Micro Switch to fit kinds of your max-needs.Function and Characteristics:*Long life, high reliability.
*Safe reliable basic switch.
*Variety of levers and connect terminals.
*A variety of models with low operating force to high force are sensitivity.
*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Mainly used in microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc.Connect Forms of Switch:

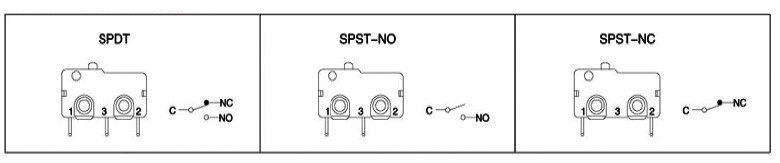

Terminal types of Switch:

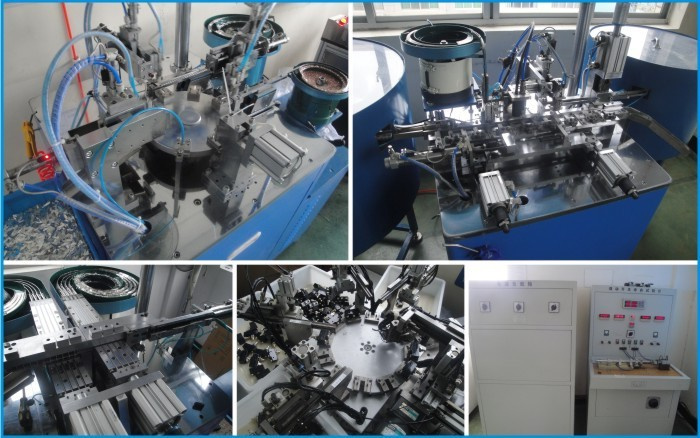

Automatic Machine:
Why Choose Us?Xiamen Universal Electronic Co., Ltd, is a professional company of switch control device and semiconductor component separator, shutter motors etc electrical appliance company. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R & D and manufacturing of the medium and small electronic switches; The Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, tact switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world. Xiamen Universal Electronic Co.,Ltd
No.318. South Tongji Road, Jimei District, Xiamen City, Fujian,China
Name: James Yan
Mobile: +86 13388659290
Tel: 86-579-86878277
Thank you for visiting our website. If you have more questions, please connect us freely. We will answer you as soon as possible.
| Item | Value |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 30 cycles/min |
| Insulation Resistance | ≥ 100 MΩ (500VDC) |
| Contact resistance | OF> 0.5N: ≤ 30mΩ (see note)
OF≤ 0.5N: ≤ 50 mΩ (see note) |
Test Voltage | Between terminals of the same polarirty | AC1000V, 50/60Hz, 1min |
Between current-carrying metal
And ground(case), and between
Each terminal and non-carrying
metal parts |
AC1500V, 50/60Hz, 1min |
| Vibration resistance | 10-55Hz, 1.5mm Double amplitude |
Shork Resistance | Destruction: OF> 0.5N: 1000m/s ² (approx. 100G)max
OF< =0.5N: 500m/s ² (approx. 50G)max
Malfunction: OF> 0.5N: 300m/s ² (approx. 30G)max
OF< =0.5N: 200m/s ² (approx. 20G)max |
| Life Expectancy | Mechnical> =1000000 cycles
Electrical> =50000 cycles |
| Degree of protection | IEC IP40 |
| Degree of protection against electric shock | Class I |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | -25~+85Degree60%RH below(No ice and dew) |
| Ambient air humidity | 85% RHbelow(about +5~+35 Degree) |
| Weight | Approx. 1.6g(No lever) |
| Degree of temperature | No mark: 25T85 |
6. Operating Force
(max)
| 050: 0.5N
100: 1N
150: 1.5N
200: 2N
300: 3N | |
3.
Connect Forms | Z: SPDT
T: SPST-NO
D: SPST-NC
(See Diagram) | |
7. Plunger specs | No mark: Standard Plunger
A: Short Plunger
B: Long Plunger
C: Abnormality Plunger
( see dirgram )
Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company) | |
4.
Acuator Forms | 0: No lever
1: Short lever
2: Long lever
3: Middle lever
4: Short Roller
5: Long Roller
6: Arc lever
Note:
Indicate not standard lever | |
8. Additional Specis Numbers
Apply to:
| 1)When used not standard parts such as not standard terminals;
2)When Customer has particular Operating value or other requirement
3) When the case is mot black, for example, grey shows as G.
Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant | |
5.
Terminal Type | F: Solder terminal
P: PCB terminal
L: Left side PCB terminal
R: Right side PCB terminal
T: Quick-connect terminal
Y: Not standard terminal | |
