Shunt Adjustable Precision Reference IC Ts431bct Integrated Circuit

Name: Shunt Adjustable Precision Reference IC Ts431bct Integrated Circuit
Brand: all-electronics-online.com
SKU: 800821325
Availability: InStock
Rating: 4.6 (65 reviews)

Price:	US $ 0.021/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	TS431BCT
Category:	References Voltage
Output Voltage:	2.495 V to 36 V
Initial Accuracy:	0.5 %
Average Temperature Coefficient Typical:	50 Ppm / C
Partial Current Max:	100 Ma
Max Operation Temp:	125
Min Operation Temp:	0
Mounting:	Through Hole
Certification:	RoHS
Function:	Adjustable Precision Shunt Regulator

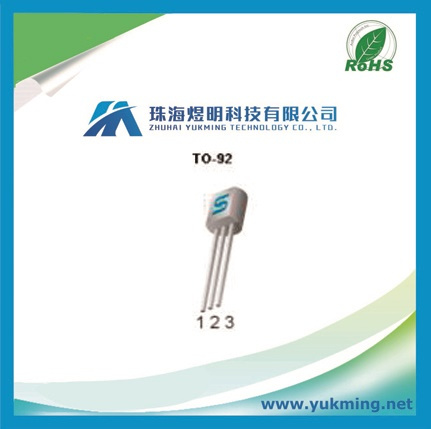

Encapsulation Structure:	To92

Product Description

Adjustable Precision Shunt Regulator

Description
The TS431/431A/431B integrated circuits are three-terminal programmable shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient zener which is programmable from Vref to 36 volts with two
external resistors. These devices exhibit a wide operating current range of 1.0 to 100mA with a typical dynamic impedance of 0.22Ω. The characteristics of these references make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies, and op amp circuitry. The 2.5volt reference makes it convenient to obtain a stable reference from 5.0volt logic supplies,
and since The TS431/431A/431B operates as a shunt regulator, it can be used as either a positive or negative stage reference.

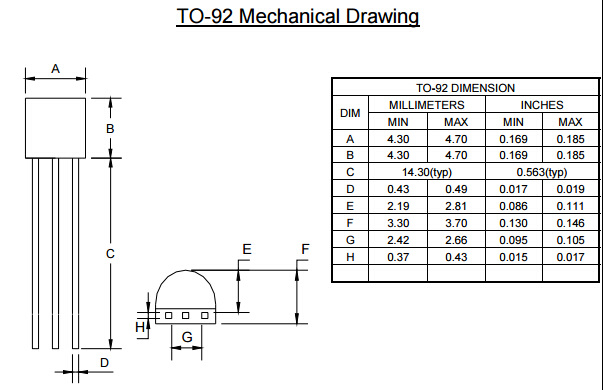

This series is offered in 3-pin TO-92, SOT-89, SOT-23 and SOP-8 package.

Features
Precision Reference Voltage
TS431 2.495V±2%
TS431A 2.495V±1%
TS431B 2.495V±0.5%
Equivalent Full Range Temp. Coefficient: 50ppm/ oC
Programmable Output Voltage up to 36V
Fast Turn-On Response
Sink Current Capability of 1.0 to 100 mA
Low Dynamic Output Impedance: 0.22Ω
Low Output Noise
