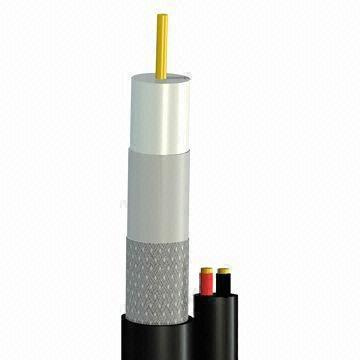

Siamese Rg59 Coaxial Cable with Power Cords

Siamese Rg59 Coaxial Cable with Power Cords
Price: US $ 10/Meter
Trade Terms: FOB
Min Order: 50000/Meter
Pay Type: L/C,T/T
Prod Model: Coaxial Cable
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color: Black
Application: RF Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: UL
Model: Rg59
Brand: OEM

Product Description


Product Description:
RG59 Siamese, SC, FPE, 60% Al Braid, PVC Jacket.
Center Conductor:
20 AWG Solid Copper
Diameter: 0.813mm+/-0.01mm
Dielectric:
Foamed PE
Diameter over Dielectric: 3.66mm+/-0.13mm
1st Shield:: Aluminum Laminated Tape Bonded to the Dielectric
2nd shield: Aluminum Alloy Wire, 4*16*0.127mm, 60% Coverage
Jacket:
Material: PVC
Diameter Over Jacket: 6.10mm+/-0.20mm
Color: Black
Power Cords:
Center Conductor: Bare Copper, 24*0.193mm
Dielectric: PVC, 2.20 mm +/-0.10 mm , Black and Red
Jacket: PVC, 5.40+/-0.20mm, Black
Electrical Properties:
Impedance: 75Ohm+/-3Ohm
Nominal Structure Return Loss: 5MHz~1000MHz≥20dB, 1000MHz~3000MHz≥15d
Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
