Sick Optical Fiber Ll3-dB01 2meter/Piece
| Price: |
US $ 33-35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
LL3-DB01 |
| Application: |
Sensor |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Brand: |
Sick |
Product Description

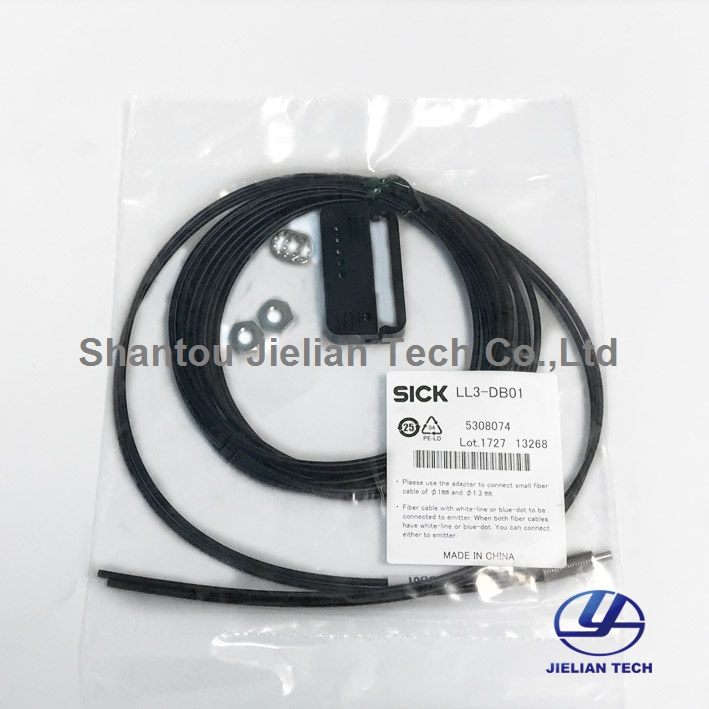

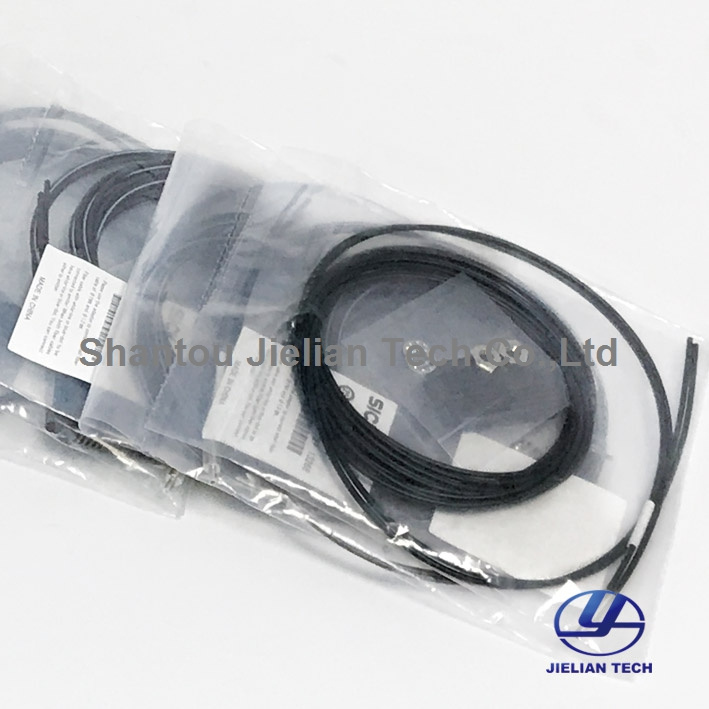

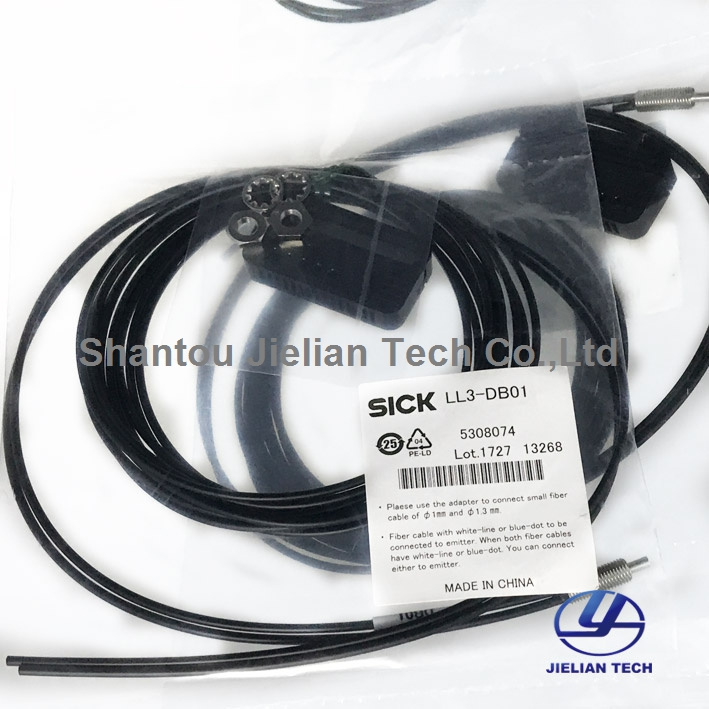

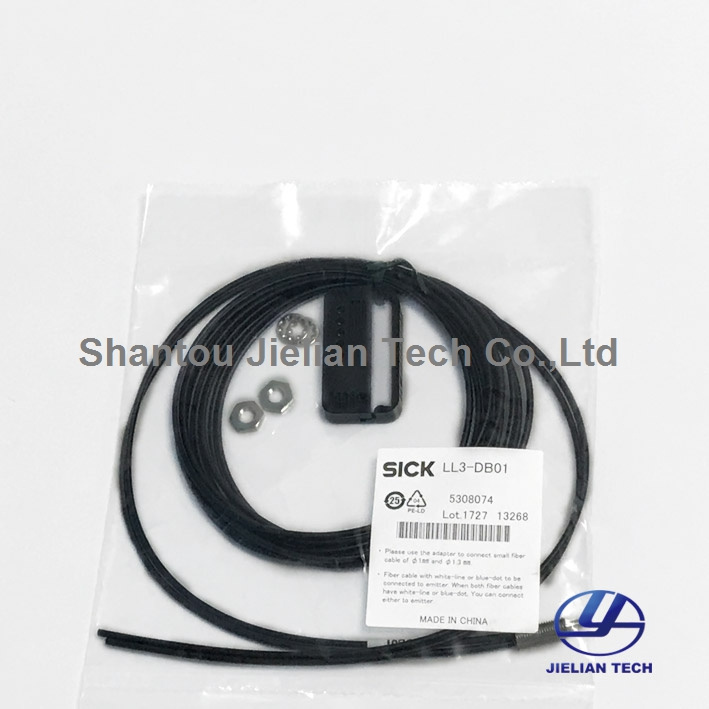

Sick Optical Fiber LL3-DB01 2Meter/pieceSICK fiber LL3 - DB01
Brand: SICK
Model: LL3 - DB01
Name: optical fiber
Length: 2 m.Technical details:Downloads
Accessories
Show all Hide all
FEATURES
Device type Fibers
Detection principle Proximity system
For fiber-optic sensor GLL170(T), WLL180T, WLL24 Ex
Fiber length 2 m
Fiber material Polymethylmethacrylat (PMMA)
Jacket material Polyethylen (PE)
Fiber head material Stainless steel 1)
Outer diameter, fiber-optic cable connection 2.2 mm
Fiber-optic cable cuttable 2)
Thread size M6
Fiber-optic head design Threaded sleeve
Fiber arrangement Coaxial arrangement
Core structure S: Ø 1 mm, R: 16 x Ø 0,25 mm 3) Coaxial arrangement
Bend radius, fibre-optic cable 25 mm
Angle of dispersion < 60° No
Compatibility with infrared light (1,450 nm) No
Ambient operating temperature -40 °C ... +70 °C
Diameter/thread size from 2 mm taper ≥ 2.8 mm
Length of taper ≥ 5 mm
Highly flexible/elastic fibers (bend radius 1-4 mm) No
Adapter end sleeves required No
Angle of dispersion 60°
Integrated lens No
Minimal object diameter 0.015 mm 4)
Special features Coaxial construction for exact switching. Standard, large sensing range
Included with delivery Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)
Compatibility tip adapters No
1) Stainless steel.
2) FC fiber optic cable cutter included in delivery.
3) C = Coaxial, S = Sender, E = Receiver.
4) Minimum detectable object was determined at optimum measuring distance and optimum setting.
