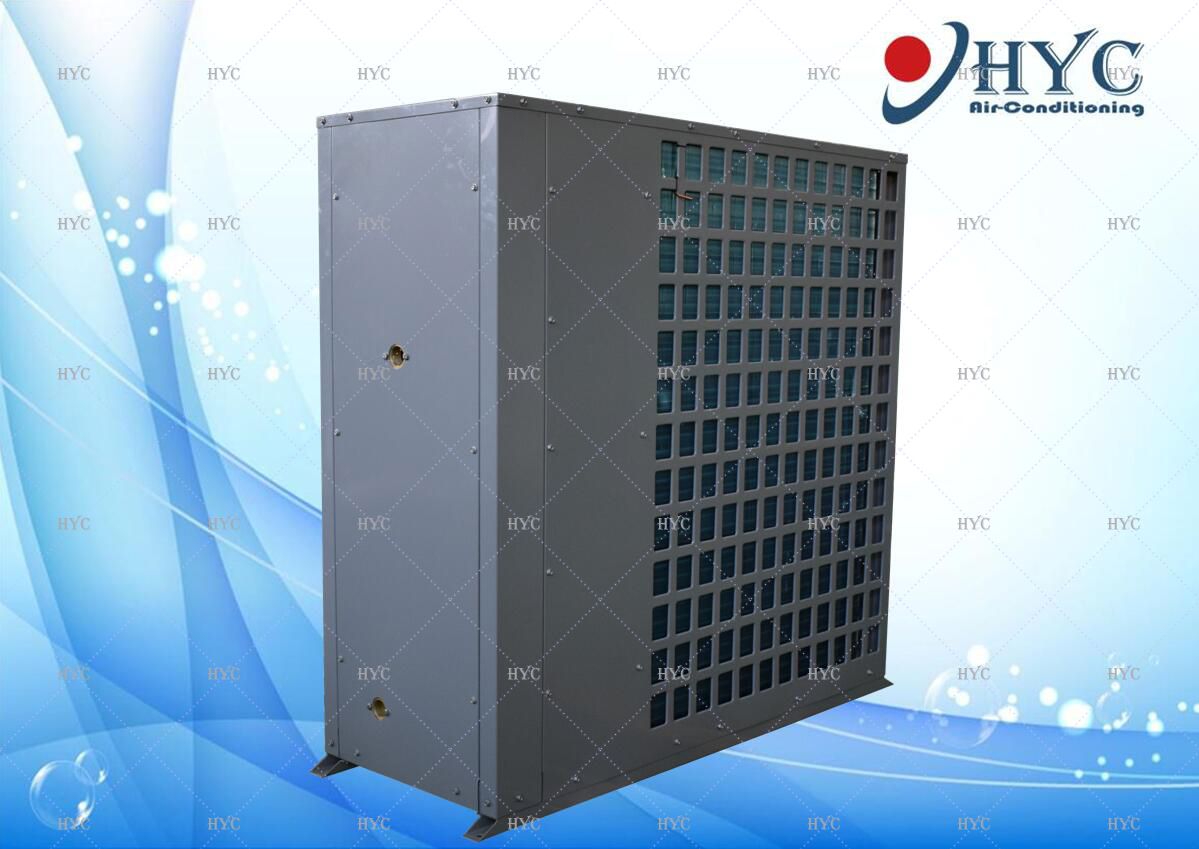

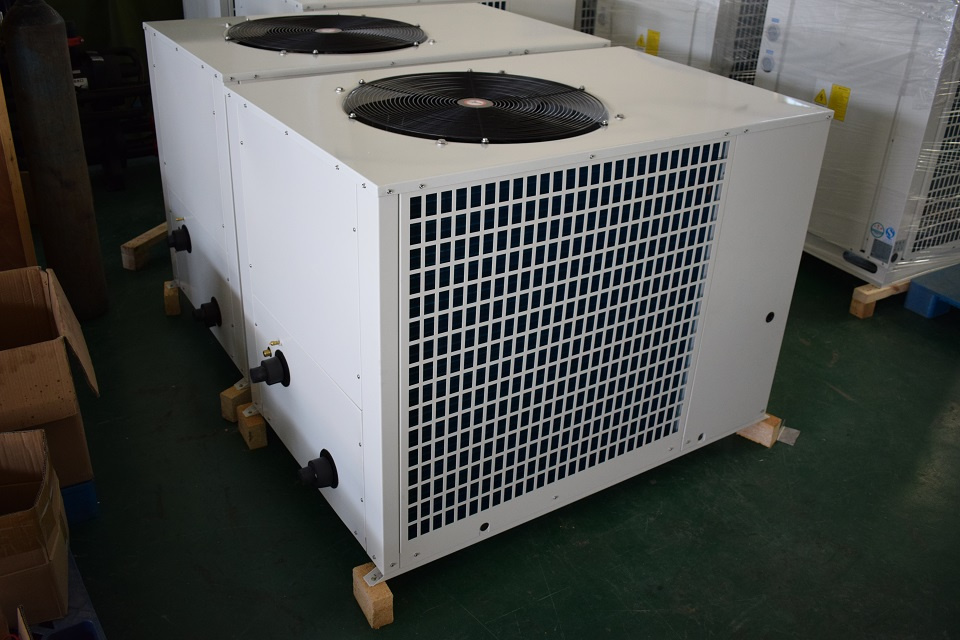

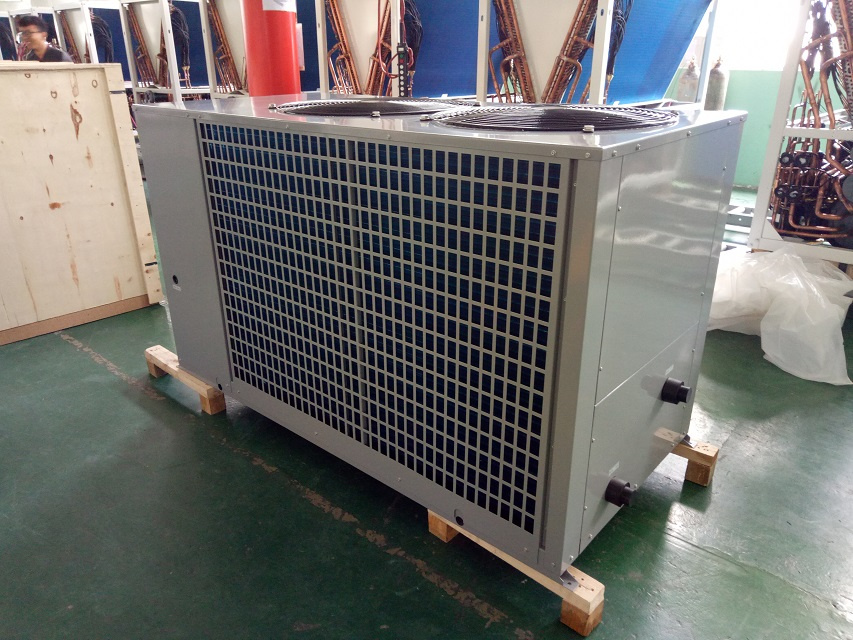

Side Discharge Integrated Chilled Water Chiller

Color:	Whilte/Optional Other Colors
Delivery Time:	30days
Tailor Made:	Avaiable
OEM/ODM:	Avaiable
Capacity:	8-50kw
Refrigerant:	R22/R407c/R410A/R134A
Compressor Type:	Rotary/Scroll
Compressor Brand:	Copeland/Danfoss/Daikin/Panasonic/Hitachi
Type:	Chiller
Certification:	CCC
Operating Voltage:	220V,380-415V,50/60Hz
Application Fields:	Apartment,Office Building,Villa,Industrial

Product Description

STRUCTURE
Panels and base frame are made from galvanized steel
protected with polyester powder painting to ensure total
resistance to atmospheric agents.
HERMETIC COMPRESSOR
The units use high efficiency, hermetically sealed,
compressors, oil return lubrication and rubber vibration
damper. The thermal overload cut-out, phase sequence
relay and crankcase heater are integrated as the security
protection to enhance reliability and performance.
AXIAL FAN
External rotor type axial fans, equipped with three phase
direct drive motors, low noise 8 poles, protection level
IP54, provided with a protective outlet grille.
EVAPORATOR
Evaporator built with high efficiency plate type heat
exchanger, factory insulated with flexible close cell
material.
CONDENSER
Condenser built with seamless internal screw thread
copper tubes mechanically expanded into blue wave
hydrophilic aluminum fins.
HYDRAULIC CIRCUIT
Hydraulic circuit built with galvanized pipe, complete with
water discharge connection for tube in tube heat exchanger
and flange type hydraulic connectors in two directions easy
for connections from both sides of the units.
ELECTRIC PANEL
Electric panel consist of: Compressor contactor, fan motor
contactor, compressor protection breaker, fan protection
breaker, phase sequence relay and microprocessor with
function display (display only for master/packaged unit)
Automatic operation dramatically reducing maintenance
cost thanks to reliable microprocessor system.
OPTIONAL
• Pressure differential/Flow switch;
• Metallic filter for hydraulic circuit;
• Water pump;
• Rubber anti-vibration mounting..
• BMS
• Stainless steel covering

Model		8	10	12	14	20	25	30	35	40	50
Power supply	/	220-240V/1Ph/50Hz		380-415V/3Ph/50Hz
Cooling
Cooling capacity	kW	8.3	10	12	14	21	25	28	35	40	52
Heating capacity	kW	9.5	11.9	13.8	16.5	24	27.5	33	38.4	46	58
Rated power input	kW	3.05	3.61	4.27	5.13	7.09	8.61	10.05	11.62	13.66	17.58
Compressor
Qty	/	1	1	1	1	2	2	2	2	2	2
Input power	kW	2.81	3.37	4.03	4.65	6.54	8.06	9.3	10.52	12.56	16.08
Running current	A	13.12	16.43	7.02	8.32	12.52	14.04	16.64	20.06	24.02	29.58
Axial fan qty	/	1	2	2	2	1	1	1	2	2	2
Expansion type	/	thermal expansion type
Evaporator
Type	/	Plate type or tank type heat exchanger
Water flow	m3/h	1.4	1.7	2.1	2.4	3.4	4.3	4.8	6.2	6.9	8.6
Water pressure drop	kPa	33	33	33	36	36	38	42	50	52	52
Water pipe in/out	mm	DN25	DN25	DN25	DN25	DN32	DN32	DN32	DN32	DN32	DN40
Dimension
Length	mm	1250	1250	1250	1250	1600	1600	1600	2000	2000	2000
Width	mm	452	452	452	452	940	940	940	900	900	900
Height	mm	1180	1180	1180	1180	1080	1080	1080	1080	1080	1080
Net weight	kg	150	155	150	180	282	310	339	310	470	520
Noise	dB(A)	58	58	60	64	64	66	68	70	70	70
