Side Motor Remote Controller Magic Functions for Garage Door

Product Description

Side Motor remote controller Magic functions for garage door

 Controller:

1. Frequency:433MHz

2. Motor Voltage:220VAC/50hz,Power<500W

3. Remote spection:SA ABCD/12V27A,be learned about 50pcs control

4. Motor:Side motor

5. Safeguard procedure:during the process of up or down,switch failure that motor can  not stop itself,after 3minutes will stop aumomatically to protect motor!

6. Material:PVC

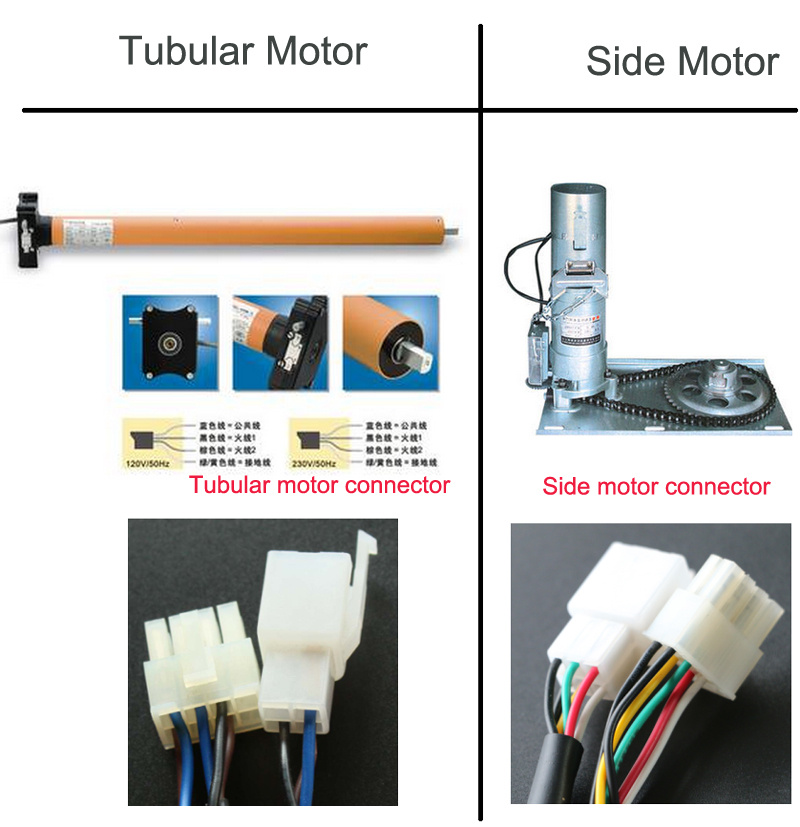

7.  Connection:2*4  wiring mouth 5569

8. Modulation system: amplitude ASK/OOK

9. Receive Sensitivity(dBm):-95DB

10. Working Tempeture: -10ºC~+70ºC

11. PCB size/Weight:95*75*30mm/132g

12. Outside case size/weight:125*85*38mm/68g

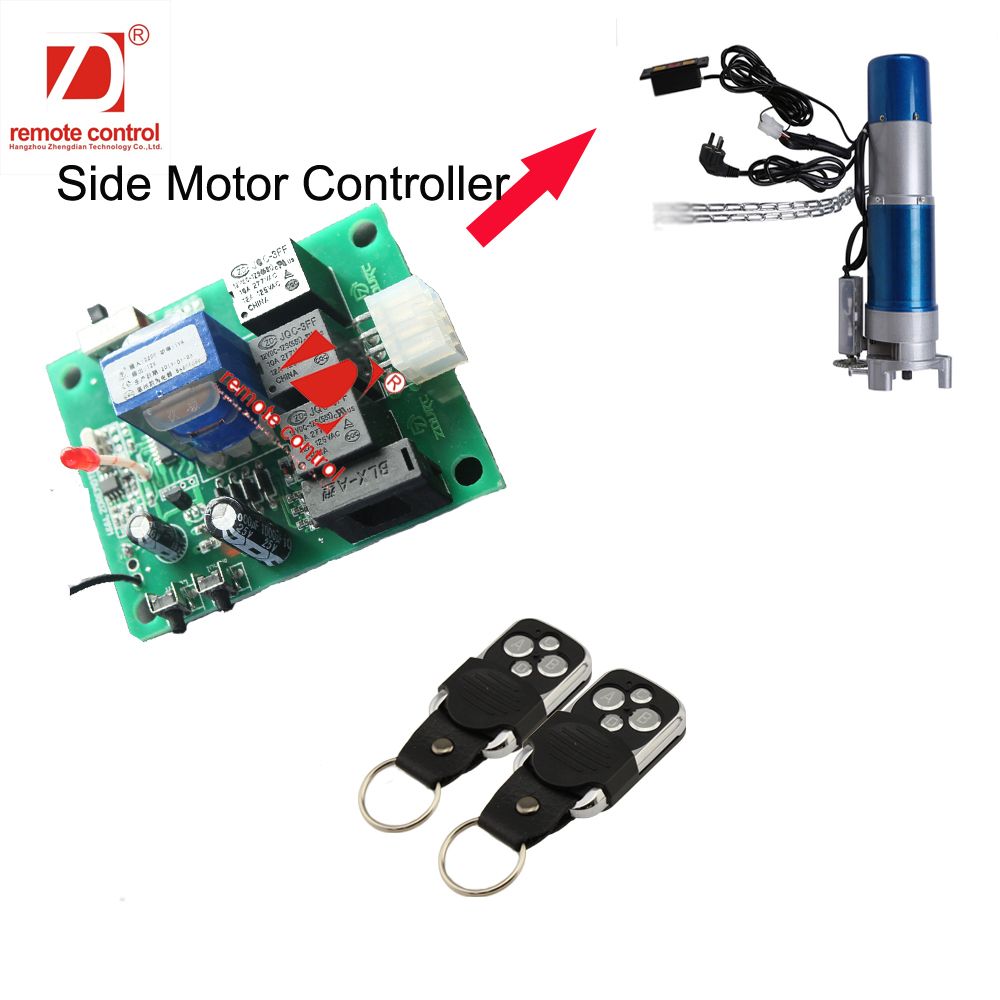

13. One kit:one controller + two pcs transmitters

14. Communication range:normally 50-100meters,test it base on actually circumstance

install instruction:

1. Power  off;

2. First check the motor function,up /down/stop,all are right!

3. Then check the wire to connection the right function

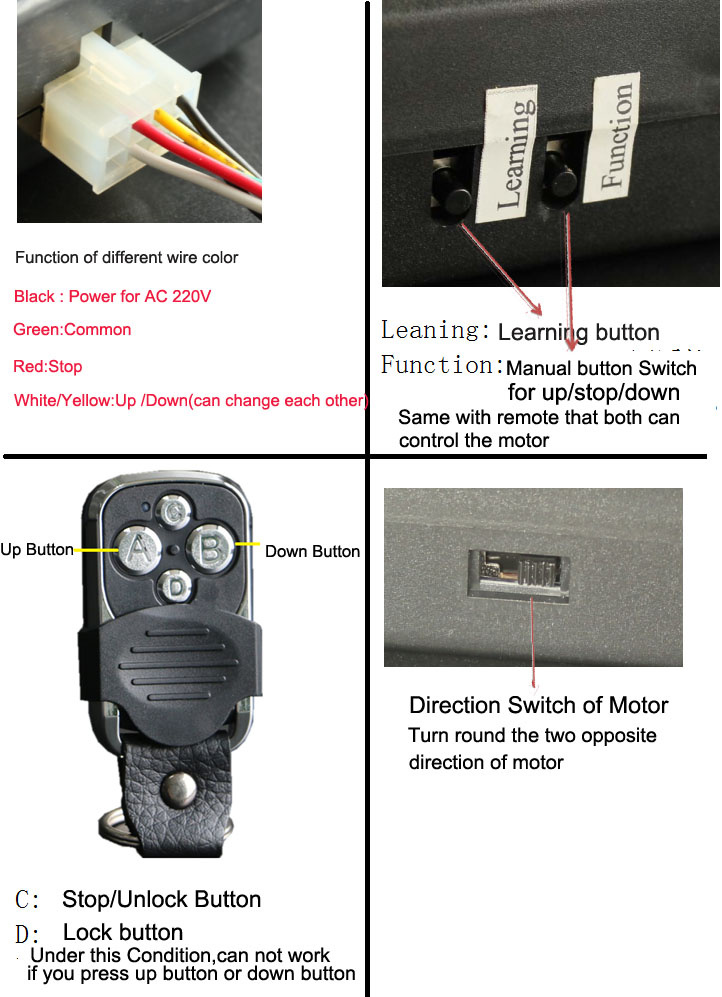

There will be 6 pcs of different  colors wire

Black Black:AC 220V votalogue

Red:stop

White/yellow: up/down(reverse)

Green:Common

Check the function with motor,if the same,connect direct

If not pls adjust the wire till the same function

4. Make sure the wire connection is right then test up function,if it is Down,pls reset the direction button in the side of controller.

5. Pls use the antenna in the best place.

6. Pls install the controller near the door to reach the best communication range

7. Pls do not install in the rainy or sunshine place

8. It should be at least 30 cm between the room ceiling and controller,at least 120cm between floor and controller

 Remote set instruction:

    The receiver can work with one channel and three channel.

You can judge it by the LED flash, the LED flash once and off,it is one channel, the LED flash three times and off once, that means it is three channel.

During learning process,LED flash lower and even

1. how to learn the transmitter

We have matched transmitter and controller before ship,if you want to add additional transmitter,pls check below steps:

2. learning status(make sure the same frequency and the same chip code):

Press the learning button about 3s,led flash lower and even mean it is the learning status

Press  any button in the remote for 2S,led off once,mean learn successfully

Release the button,if led still flash lower and even,mean in the learning status,pls go on learning accrording above manual.

During the process of learning,if there is not the remotes to be learned,about 3 seconds will stop the learning process,and LED flash same with working.

3.Clear code:

Press  the learning button,LED flash lower and even,after 10s,LED flash quickly mean clear code is successfully

(all remotes clear code,It can be learned about 50pcs of remotes )

Controller instruction:

The receiver can work with one channel and three channel.

You can judge it by the LED flash, the LED flash once and off,it is one channel, the LED flash three times and off, that means it is three channel.

For example:

One channel:

When button A learned in the controller,

press button A once it open, press button A again it stop, press button A the third time it close.

So same with button B/C/D,that mean one remote can control four gates.

Three channel.

How to  change it to three channel?

Press button D once, then press A and B at the same time, then press the button C. When the LED flash three times and off, that means it is three channel.

Function:Press button A it open, press button C it stop, press button B it close.

Shipment: DHL, UPS, TNT, Fedex and EMS or by sea/air optional

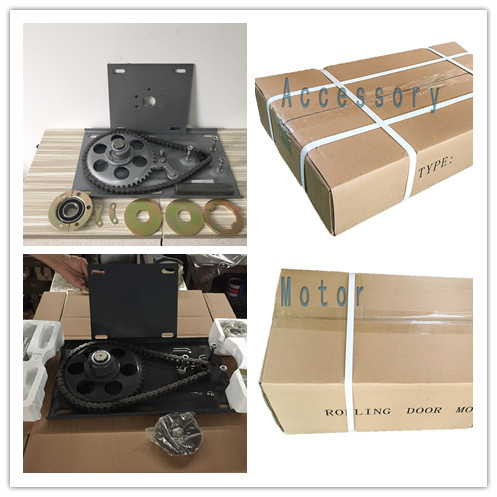

Package: Paper box, poly bag, blister or as per your request
