Siemens Simotics 3 Phase High Efficiency AC Induction Electric Motor

Name: Siemens Simotics 3 Phase High Efficiency AC Induction Electric Motor
Brand: all-electronics-online.com
SKU: 827211025
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	US $ 58-6000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1LE0001-0DA22-1-
Rated Power:	0.75~315kw
Color:	Stone Grey
Insulation Class:	F
Working Duty:	S1
Frame Material:	Cast Iron
Rotor Structure:	Squirrel-Cage
Frame Size:	80~355
Rated Voltage:	220V/380V,415V,400V/690V,400V
Protection Degree:	IP55
Efficiency Class:	Ie3
Number Of Stator:	Three-Phase
Function:	Control
Application:	Industrial, General Purpose
Certification:	Ce

Product Description

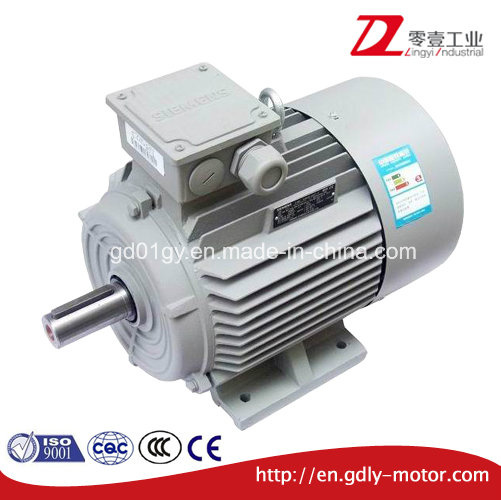

SIEMENS SIMOTICS GP 1LE001 Series 3 Phase Asynchronous Electric Motor

Motor Summary

Frame size	80- 355
Pole	2-8
Rated voltage	380V
Frequency	50Hz
Power	0.75kw ~ 315Kw
Protection degree	IP55 (IEC 60034-5)
Cooling method	IC411
Insulation class	F
Ambient Temperature	-20°C~40°C
Altitude	up to 1000m over sea
Working Duty	S1(Continuous)

Product Description

1. Available in 2,4,6 pole motor(0.75kw and up) with efficiency grade 3. According to GB18613-2012 and efficiency class IE2(50HZ) according to IEC 60034-30.

2. Optimized compact style construction.

3. standard mounting construction according to IEC 60034-7:IMB3, IMB5, IMB35 and etc.

4. Re-greasing devices for frame size 280-355 as standard, and for frame size 100 ~ 250 as option.

5. Winding protections with PTC, PT100 and KTY84-130 as option.

6. Converter-fed operation at mains voltage up to 460V,1LE0001 motors are capable for converter-fed operation with certain characteristics load.

Application fields

1LE0001 motors are suitable for pumps, fans, compressors, texitle machine and mechanical machine applications where variable or constant speed is required.

FAQ

Q: What is your MOQ of this item?
A: 1pcs. For the first time cooperation, we accept trial sample order.

Q: What's your payment terms?
A: 30% T/T deposit, 70% balance before shipment.

Q: What's the leed time?
A: standard product 20 days after get your deposit payment.

Q: How long is your warranty?
A: 12 months after B/L be issued.
