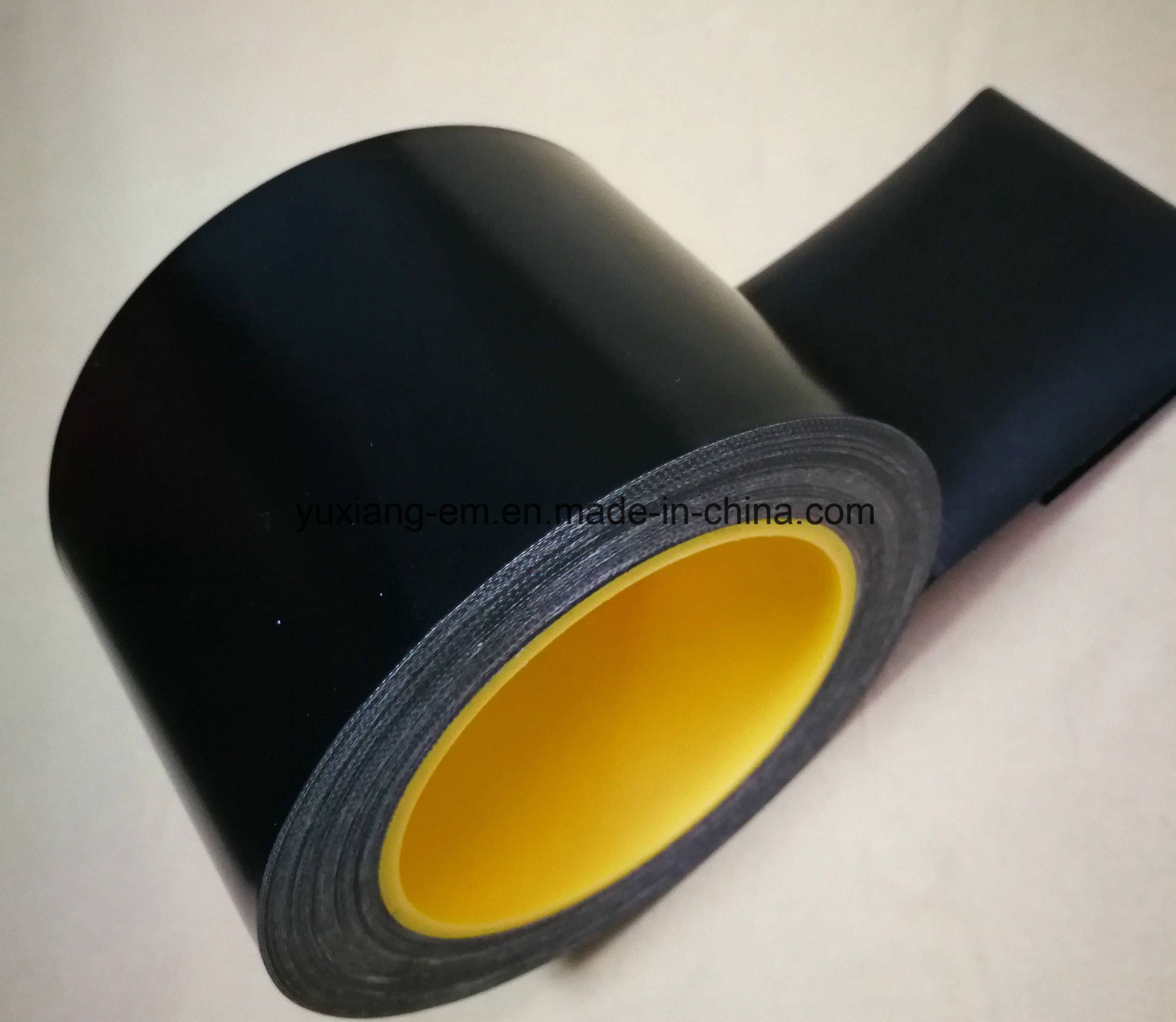

Silicon Covered Glass Cloth Tape with Silicon/Acrylic Adhesive

Name: Silicon Covered Glass Cloth Tape with Silicon/Acrylic Adhesive
Brand: all-electronics-online.com
SKU: 814515495
Availability: InStock
Rating: 5 (129 reviews)

Price:	US $ 7.85-14.50/Square Meter
Min Order:	1000/Square Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YX-20
Application:	Bus Bars/Transformer\Capacitor\Reactor
Type:	Insulation Tape
Chemistry:	Organic Insulation
Thermal Rating:	200 200
Material:	Glass Cloth
Color:	White, Black
Brand:	Yuxiang/OEM

Product Description

Properties:
• Improve the thickness and softness of the glass cloth tape
• Excellent high-temperature resistance- Class C(200ºC-220ºC)
• Good adhesion and excellent conformability
• Very flexible and no crease
• High dielectric strength and insulation resistance
• Oil resistant
• FR V0
Applications:
•Used in the bus-bars, motor, transformer, etc. with the demands of high flexibility, high adhesion and high dielectric strength, such as the corner, folding requirement and so on.

Item	Unit	Normal 1
Backing	-	Silicon-glass cloth
Backing Thickness	mm	0.45
Total Thickness	mm	0.50±10%
Adhesive	-	Acrylic	Silicon
Adhesion to steel	N/25mm	≥4
Tensile strength	N/25mm	≥800
Elongation	%	≥5
Dielectric breakdown	KV	≥10
Heat resistant temperature	_	Class C/200ºC

Shanghai Yuxiang electrical material Co., Ltd established in Pudong district of Shanghai in 2004.

The headquarters and manufacturing base has moved to Shanghai Nanxiang in 2008. The area of factory is about 5000 Square meters. There are lamination, slitting, coating and stamping lines in our factory.

Yuxiang is one of the most famous electrical flexible lamination coating production supplier in China, and has a very good reputation in the industry.

Yuxiang adhering to the business philosophy of "Beyond Customer's Expectations", providing all kinds of insulation products for the motors, generators, transformers, electronic products, solar energy backs and new energy vehicles, and also providing professional technology consulting, inspection and service for the insulation products.

We established Shanghai Xiyaxin Electronic Materials Co., Ltd and Shanghai Honggong New Materials Co., Ltd in order to serve our customers. These two company is specialized in all kinds of electronic products, electronic materials, insulation materials, chemical products sales and import and export business.

Besides, Honggong is primary dealer of DuPont™ Nomex® Insulation paper in China, provides Nomex® Paper product and service.
