| Prod Model: |
D11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transformer Type: |
Transformer Price 5kVA |
| Rated Capacity: |
5kVA |
| Material: |
Oil,CRGO,Copper |
| Install Method: |
Pole-Mounted Type |
| Package: |
Wooden Case |
| Color: |
Gray,Green or Customized |
| Radiator Design: |
Can Be Customized |
| Place Of Orignal: |
Zhejiang,China |
| Apply Standard: |
IEC60076/ANSI/GB |
| Tank: |
Cy Linder Tank |
| Application: |
Power |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Certification: |
Ctqc |
| Brand: |
Farady |
Product Description

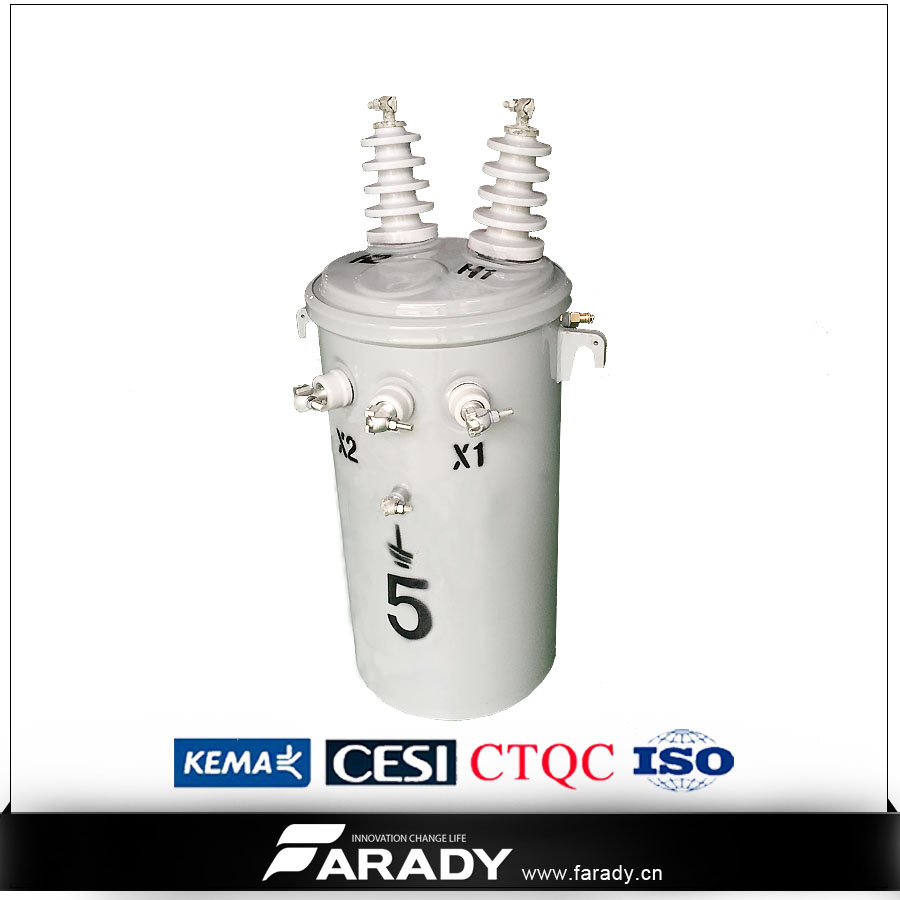

silicon iron core step down power transformer price 5kva
Product Description
Overhead single phase electrical transformer is commonly used in
various places including rural areas, remote regions and scattered villages to
provide high quality power supply for daily lighting, agricultural production
and industrial plants.
1,single pole mounted electrical transformer
2,Cutting down installation size
3,Small capacity
4, low-voltage power supply radius
5,Low line loss and better power supply quality
6,high overload capacity
| Model | Rated Capacity (kVA) | Primary rating (V) | Tapping Range
(%) | Secondary rating
(V) | Loss(W) |
| No load loss | Load loss |
| DH15-3 | 3 | 34500/19920
33000/17321
20000/11547
13200/7620
11000/6350
or others | ±2x2.5%
Or thers | 120-240
240-480
250-500
Or thers | 8 | 45 |
| DH15-5 | 5 | 8 | 75 |
| DH15-10 | 10 | 12 | 120 |
| DH15-15 | 15 | 15 | 195 |
| DH15-25 | 25 | 18 | 290 |
| DH15-37.5 | 37.5 | 30 | 360 |
| DH15-50 | 50 | 32 | 500 |
| DH15-75 | 75 | 45 | 650 |
| DH15-100 | 100 | 50 | 850 |
| DH15-167 | 167 | 65 | 1410 |
| DH15-250 | 250 | 90 | 2000 |
| DH15-333 | 333 | 120 | 2500 |
Company Information
We are professional manufacturer of power transformer,electrical transformer,step voltage regulator,oil immersed and cast resin dry type transformer
ISO9001&14001 approval company
Each series transformer we manufacutured was type tested
Professional technical team ensure our product was always advanced amony your competitor
OUR PAKAGE:
Long time shipment & Seaworthy wooden box
Wooden package optional:
1,choose one unit/ wooden box
2,choose 2unit/ wooden box to save cost
OUR SERVICE:
1,Quick response in before sales period help you got order
2,Excellent service in production time let you know each step we made
3,Reliable quality solve you aftersale headache
4,Long period quality waranty ensure you can buy without hesitate
FAQ:
1,Why I buy Farady transformer
After compare quality,delivery and price you will find out answer
2,How is your farady electrical transformer waranty
12+12month after manufacture date,you total got 2 year waranty
3,Is that possible to be one of distributor of Farady Electric in my country
Yes,once you action is fast enough
4,More question......
Feel free to contact you you will get immediately reply
Certification
Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.
Farady is located in Liushi of Yueqing, Zhejiang, China, main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid
With ISO9001/14001/18001, we are strike for create value for our partner and customer
There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.
WE COMMITTED TO PROVIDE A BETTER POWER
