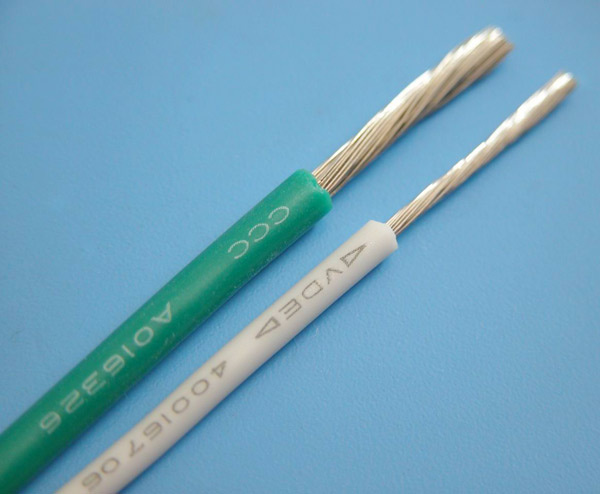

Silicon Rubber Wire (UL 3135)

Name: Silicon Rubber Wire (UL 3135)
Brand: all-electronics-online.com
SKU: 637978925
Availability: InStock
Rating: 4.9 (34 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	2000/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL 3135
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Voltage:	600V
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	UL
Application:	Household Appliances, Lightings
Brand:	Yuanda

Product Description

UL AWM 3135 high temperature resistant wire
Nominal voltage: 600V
Temperature range: -60deg. C -+200deg. C
The standard for reference: UL758, UL1581, UL62
Conductor: 26-12AWGTinned copper

Insulation: Silicone Rubber
Test by UL VW-1 and CSAFT-1
USE: Internal wire of appliance or electronic equipment where exposed to high temperature
Certificate NO.: UL E216252 CSA 2299260

spec AWG	Number /mm	Conductor diameter (mm)	Insulation thickness (mm)	Nominal diameter (mm)	Max diameter mm
10	35/0.45	3.12	0.78	4.7	4.9
12	45/0.32	2.5	0.78	4.1	4.3
14	41/0.25	1.96	0.78	3.6	3.8
16	7/0.50	1.5	0.78	3.1	3.3
18	7/0.40	1.2	0.78	2.8	3.0
20	7/0.30	0.9	0.78	2.5	2.7
22	7/0.254	0.762	0.78	2.4	2.6
24	7/0.20	0.60	0.78	2.2	2.4
26	7/0.16	0.48	0.78	2.1	2.3

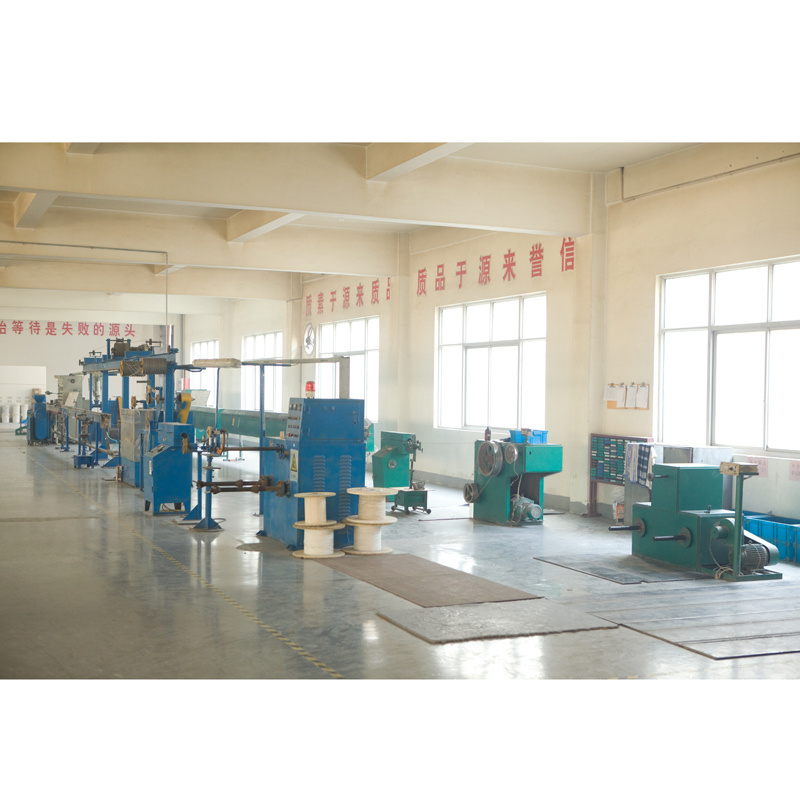

Jiangyin Yuanda Electrical Material Co. Ltd. (Wuxi yuanda Electrical Materical Co. Ltd) is locked in Jiangyin, the most developed city in China, Jiangsu Province. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique advantages and convenient transportation could be your ideal business choice.

Our main products include:

1. Heat-resistant silicone rubber wires which are widely used in household appliances and electronic instruments such as UL3122, UL3135, UL3512 and VDE HO5S-K, VDE HO5SJ-K, CCC245IEC, H3Cable and teflon wires such as UL1330, UL1332, UL10362 and so on.

2. Steel industry heat-resistant cables applicable to aviation, navigation and such as YG, H05SS-F.

3. JG and JYJ cables applicable to electric machines metallurgy, engines, transformers and nuclear Powers.

4. Wires such as GXL, AEX and SGR used in automobiles.

5. Coaxial cables such as RG and RF series used for communications in cell phones, computers 3G and military industry.

We have abundant technical strength, advanced equipments, functional testing facilities and good quality-ensuring systems and have acquired the certificates of ISO9001-2000 and ISO/TS16949: 2009 for Automotive wires and tubes. Our main products, silicone rubber insulated wires and cables Teflon sires, silicone glass fiber pipers, rubber-inside and fiber-outside pipes are certified by UL, VDE, CSA and CCC and all our products can meet the requirements of RoHS.

Our annual output of heat resistant sleeve is 120, 000Km, all kinds of high temperature cable is 8, 600, 000Km, RF coaxial cable is 150, 000Km, and we can process all kinds of nonstandard cable according to the requirement of clients. With the excellent products, punctual delivery, we'll be your ideal partner.

With high qualify products, reasonable price and perfect after-sales service, we believe that we can achieve win-win situation with you. Looking forward to your cooperation!
