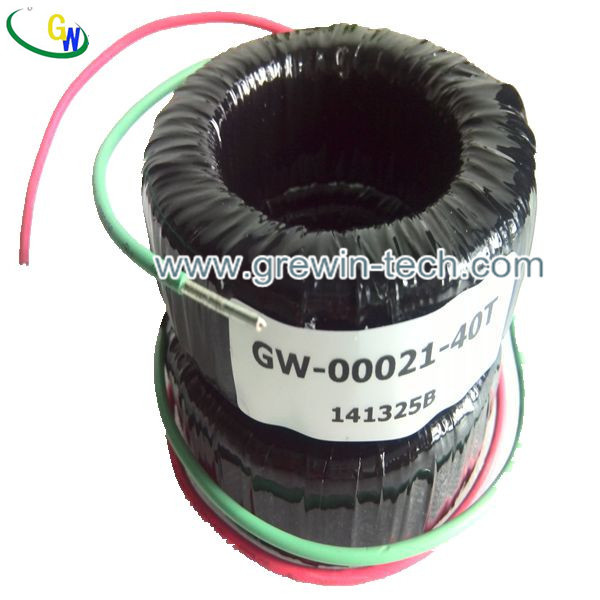

Silicon Steel 5 to 5000A Low Voltage Current Transformer

Prod Model:	GWPR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Input:	5A-30000A
Measuring Range:	5%in-130%in
Rated Output:	0-5A
Ratio:	≤ ± 0.2%
Phase Angle:	≤ ±10min
Dielectric Strength:	3.0kv/1mA/1min
Insulation Resistance:	DC500V/100m Min
Case:	PC /UL94-V0
Bobbin:	PBT
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Certification:	Ce,SGS
Usage:	Current Measurement
Frequency Characteristics:	50-60Hz
Shape Of Coil:	Silicon Steel
Brand:	Grewin

Product Description

The GREWIN CTTseries of 600V instruction current transformers are designed for minimum phase angle error are required.Seven different window openings and four different mounting styles along with numerous secondary ratios are availableto meet most applications. This short form catalog shows an overview of our production.Contact factory for different sizes or style.




instrument current transformer/single phase transformer

Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer


Single Phase Instrument Current Transformer(specifications)
Exterior Material	PBT Resin UL flame retardant rating 94-V0
Interior Insulation	Epoxy Encapsulated
Isolation Voltage	2500 Vrms for 1 minute
Dielectric Resistance	1000 M Ohms @ 500 Vdc
Surge Withstand	5000V(1.2/50μs standard  shock wave)optional
Rated Load Resistance	100K Ohms
Operating Temperature	-25 to +55ºC,-40 to +85ºCoptional
Operating Voltage	600Vac
Frequency	50 to 400 Hz
Accuracy Class	defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2
Certification	RoHS Compliant CE Approved




Single Phase Instrument Current Transformer(features)

Low cost

More than 30 outline sizes

5.0,1.0Aac secondary ratios available

Single Phase Instrument Current Transformer(applications)

For applications that require exceptional accuracy with minimal phase angle error

Applications would include Current,Power,Energy monitoring devices  Relay protection device


 Typical Products

Series	Rated  Input	Frequency (Hz)	Outline Dimensions (mm) ID-L-W-H
16	60,75,80,100,120,125,150,200,250	50~400	16.3- 50.5-31.5-50.5
25	50,60,75,80,100,120,125,150,200, 250,300	50~400	25.4-32.5-44.5-69.0
39	100,150,200,250,300,400,500,600, 750,800,1000,1200	50~400	39.6-92-28.0-101.5
52	100,150,200,250,300,400,500,600, 750,800,1000,1200,1500	50~400	52.3-108-27.9-108
63	100,150,200,250,300,400,500,600, 750,800,1000,1200,1500,1600	50~400	63.5-121-27.9-130.9
82	200,250,300,400,500,600,750,800, 1000,1200,1500,1600,2000,2500,3000, 4000	50~400	82.6-146-31.7-146
1A	200,250,300,400,500,600,750,800, 1000,1200,1500,1600,2000,2500,3000, 3500,4000	50~400	108-171.5-31.7-171.5



Series	Rated  Input	Frequency (Hz)	Outline Dimensions (mm) ID-L-W-H
12	25,33,40,50,60,75,80,100, 120,125,150,200,250,300	50~400	12.7-50-38-55
35	15,20,25,30,40,50,60,45,80,100 ,120,125,150,200,250,300,400,500	50~400	35-98.5-30-80
45	100,150,200,250,300,400,500, 600,750	50~400	45-120-36-101.5
50	150,200,250,300,400,500,600,750, 800,1000,1200,1500,1600	50~400	50-100-38.5-109
55	100,150,200,250,300,400,500,600, 750, 800,1000,1200,1500,1600,2000	50~400	55-150-36-126
72	100,150,200,250,300,400,500,600, 750, 800,1000,1200,1500,1600,2000 2500,3000	50~400	72-175-44-150 (72-125-30-140)
