Silicone Extra Flexible Cable 10AWG with 005

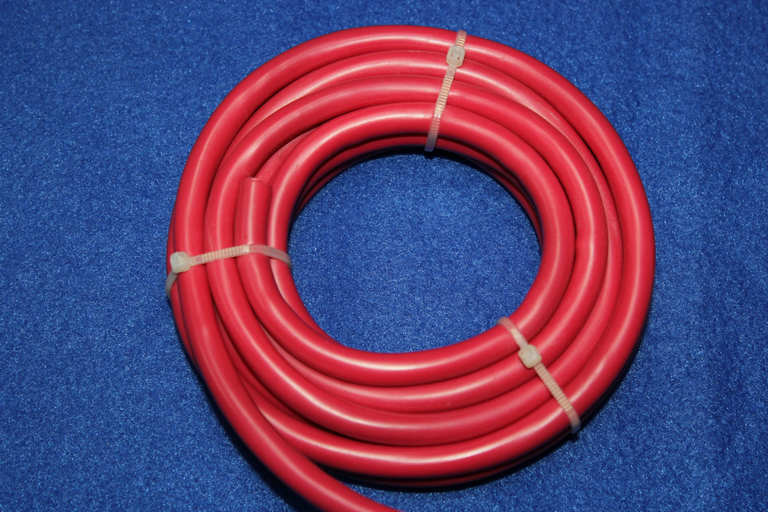

Name: Silicone Extra Flexible Cable 10AWG with 005
Brand: all-electronics-online.com
SKU: 808790305
Availability: InStock
Rating: 4.6 (130 reviews)

Price:	US $ 0.189-8.5/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	10AWG
005silicone Insulated Extra - Flexible W:	005--10AWG
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Brand:	Dewei Wire

Product Description

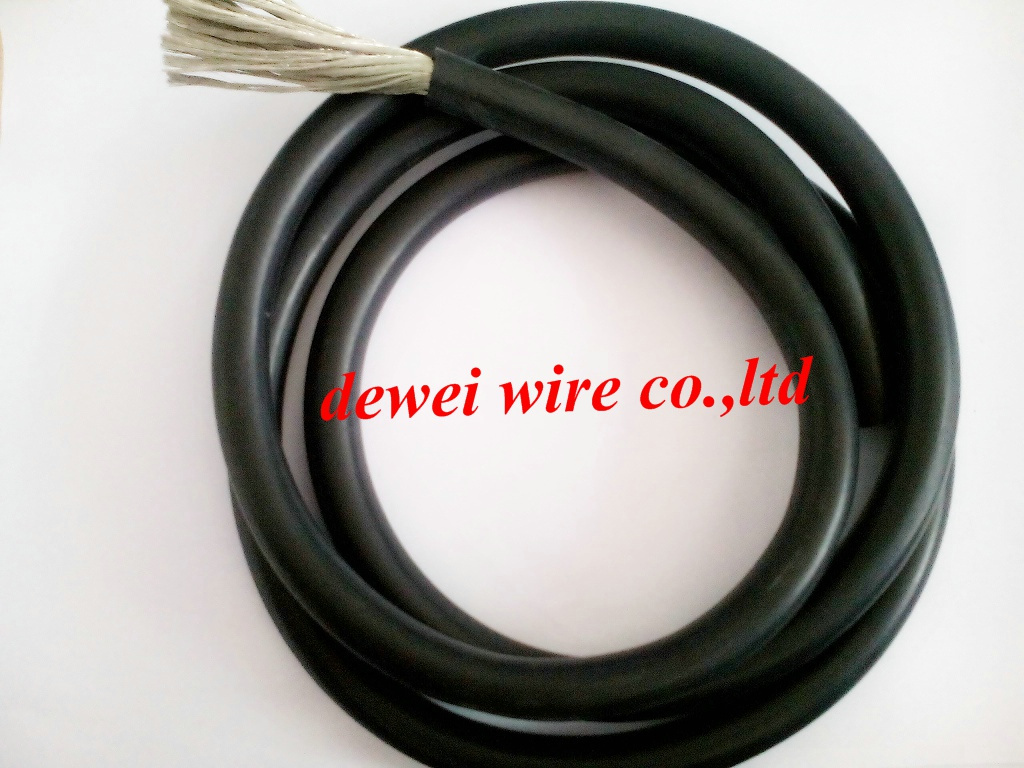

005Silicone Insulated Extra - Flexible Wire (SDW03)--10AWG

Nominal Voltage: 300V OR 600V
Temperature Range: -60º C to 200º C

Conductor: Tinned, Nickeled, siliver plated, gold plated copper, bare copper
Testing Voltage: 2000V
Insulator: Silicone rubber

O. D. Tolerance: ± 0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
Con. Of conductor.: 2576/0.05

Diameter: 2.95mm
Thickness of insulator: 5.05mm

Over diameter: 5.00mm
Packing: 200m/coil
<

AWG	con.of conductor.	Diameter	Thickness of insulator	over diameter	Packing
	NO/mm	mm	mm	mm	mt/coils
26#	86/0.05	0.53	0.17	1.50	200
24#	117/0.05	0.65	0.23	1.60	200
22#	170/0.05	0.75	0.34	1.70	200
20#	280/0.05	0.96	0.55	1.90	200
18#	423/0.05	1.18	0.83	2.50	200
16#	698/0.05	1.52	1.37	3.00	200
14#	1052/0.05	1.85	2.00	3.40	200
12#	1530/0.05	2.25	3.00	4.20	200
10#	2576/0.05	2.95	5.05	5.00	200
8#	4229/0.05	3.75	8.29	6.50	200

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
