Silicone Rubber Electrical Insulation Wires

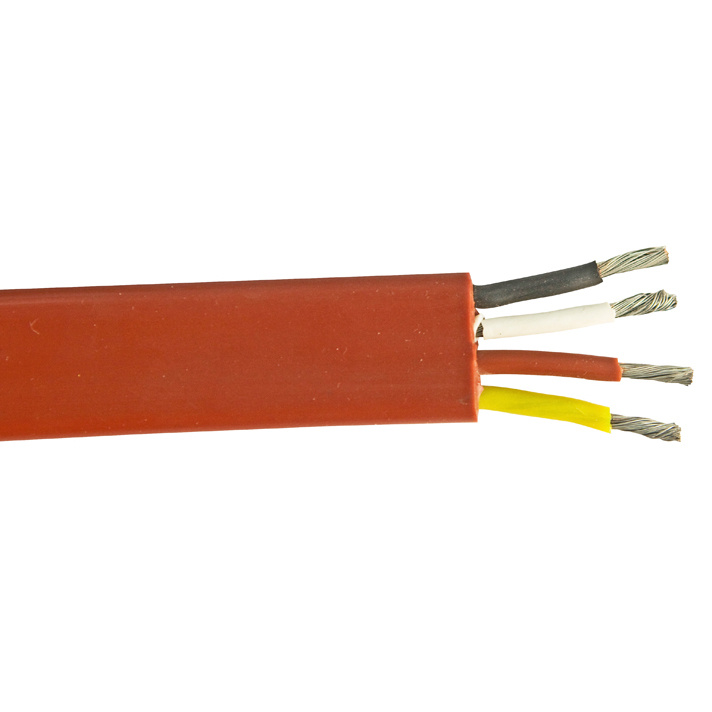

Name: Silicone Rubber Electrical Insulation Wires
Brand: all-electronics-online.com
SKU: 613063072
Availability: InStock
Rating: 4.3 (55 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	3000/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Silicone Rubber
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White,Black,Red,Brown,Blue
Nominal Voltage:	450/750V
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Silicone Rubber
Certification:	VDE
Application:	Fixing Wire
Conductor Material:	Tinned Copper
Sheath Material:	Silicone Rubber
Range Of Application:	Electric Appliances, Lightings Electric Equipments
Brand:	Yuanda

Product Description

We are a manufacturer specialized in silicone rubber wire/cable, such as, VDE silicone rubber-non knitting high temperature resistant wire, VDE silicone rubber -insulated and high temperature resistant wire with glass fiber braided, UL high temperature resistant wire, high voltage resistant fixing wire, silicone rubber flexible cable.

Nominal voltage:450/750V

Temperature range:-60ºC~+180ºC

O.D. Tolerance:±0.20mm

Testing voltage:2000V

Conductor:Tinned copper

Pleach:Fiberglass or Nylon

Jacket:Silicone rubber

Insulation:Silicone rubber

Use: Inner fixed wires for home electric appliances, lightings, electronic equipment and sensors etc.

Conductor		Insulation
section mm2	Conductor construction No./mm	Insulation thickness mm	Diameter mm	Jacket thickness mm	Over outer diameter mm


2×0.50	28/0.15	0.60	2.1	1.2	5.8
2×0.75	24/0.20	0.60	2.4	1.3	6.5
2×1.00	32/0.20	0.60	2.5	1.3	6.6
2×1.50	30/0.25	0.70	3	1.5	7.9
2×2.00	40/0.25	0.70	3.30	2.00	9.4
3×0.50	28/0.15	0.60	2.1	1.5	7.2
3×0.75	24/0.20	0.60	2.40	1.5	7.8
3×1.00	32/0.20	0.60	2.50	1.5	8.00
3×1.50	30/0.25	0.70	3	1.8	9.60
3×2.00	40/0.25	0.70	3.3	2	10.60

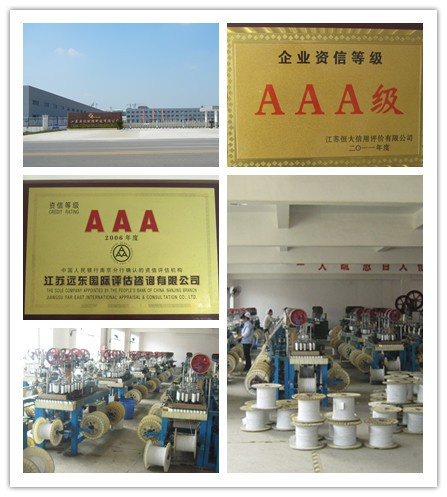

Jiangyin Yuanda Electrical Material Co. Ltd. (Wuxi yuanda Electrical Materical Co. Ltd) is locked in Jiangyin, the most developed city in China, Jiangsu Province. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique advantages and convenient transportation could be your ideal business choice.

Our main products include:

1. Heat-resistant silicone rubber wires which are widely used in household appliances and electronic instruments such as UL3122, UL3135, UL3512 and VDE HO5S-K, VDE HO5SJ-K, CCC245IEC, H3Cable and teflon wires such as UL1330, UL1332, UL10362 and so on.

2. Steel industry heat-resistant cables applicable to aviation, navigation and such as YG, H05SS-F.

3. JG and JYJ cables applicable to electric machines metallurgy, engines, transformers and nuclear Powers.

4. Wires such as GXL, AEX and SGR used in automobiles.

5. Coaxial cables such as RG and RF series used for communications in cell phones, computers 3G and military industry.

We have abundant technical strength, advanced equipments, functional testing facilities and good quality-ensuring systems and have acquired the certificates of ISO9001-2000 and ISO/TS16949: 2009 for Automotive wires and tubes. Our main products, silicone rubber insulated wires and cables Teflon sires, silicone glass fiber pipers, rubber-inside and fiber-outside pipes are certified by UL, VDE, CSA and CCC and all our products can meet the requirements of RoHS.

Our annual output of heat resistant sleeve is 120, 000Km, all kinds of high temperature cable is 8, 600, 000Km, RF coaxial cable is 150, 000Km, and we can process all kinds of nonstandard cable according to the requirement of clients. With the excellent products, punctual delivery, we'll be your ideal partner.

With high qualify products, reasonable price and perfect after-sales service, we believe that we can achieve win-win situation with you. Looking forward to your cooperation!
