| Prod Model: |
BST-SCS |
| Near Port: |
Shanghai, Ningbo |
| HS: |
392099 |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Organic Insulation |
| Material: |
Rubber |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
Upon Thickness |
| Color: |
Any Color |
| Brand: |
Bstflex |
Product Description

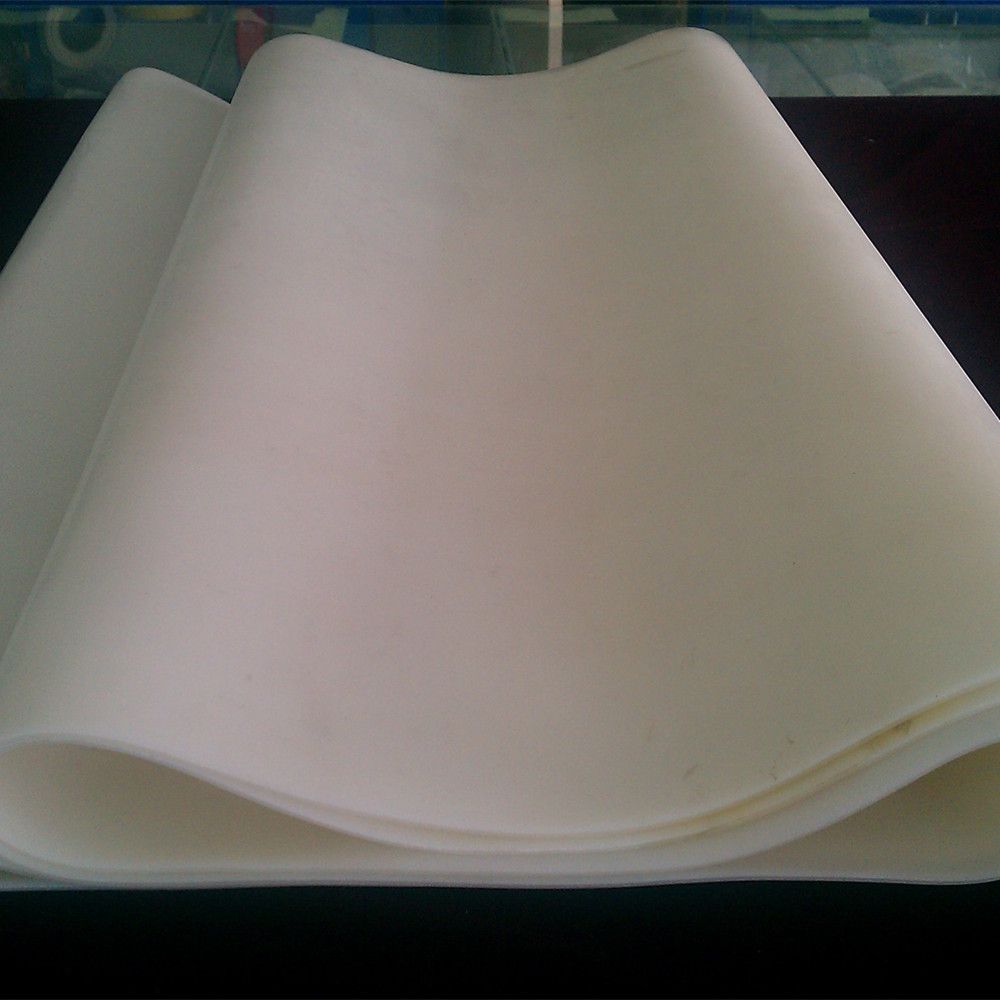

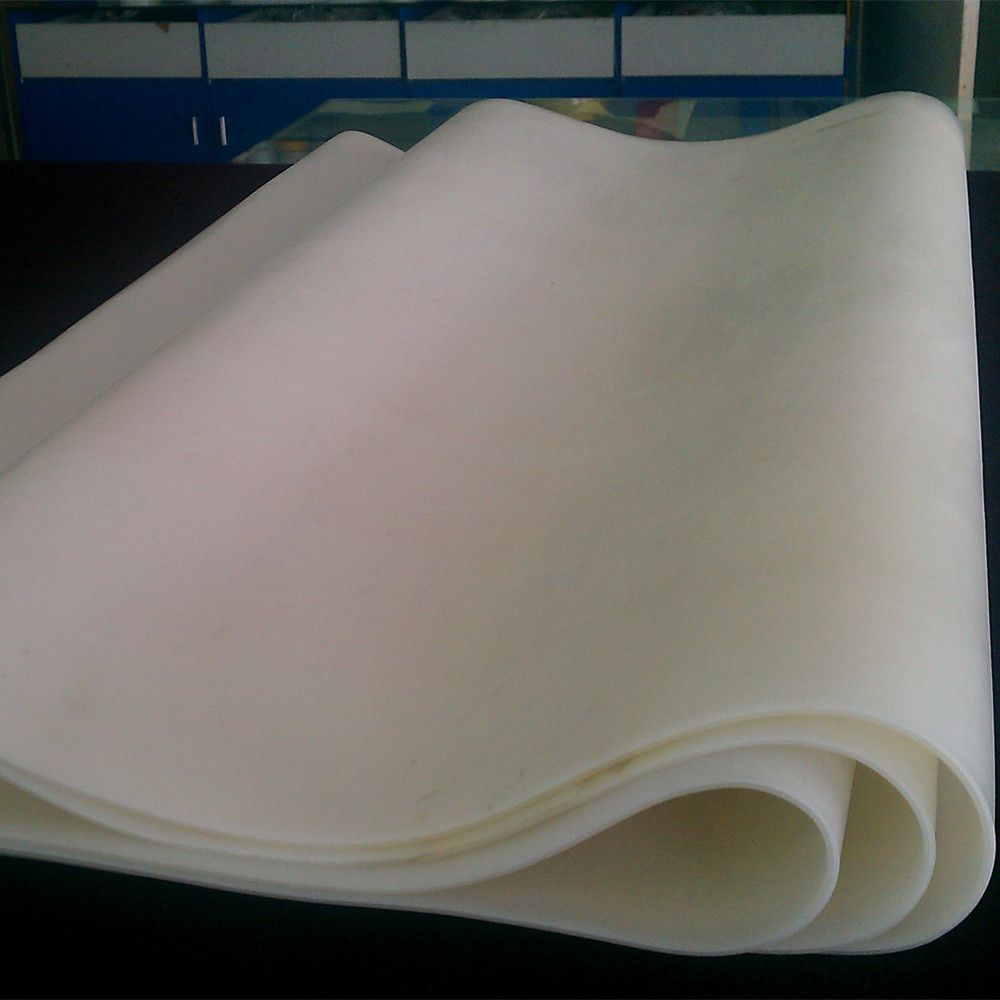

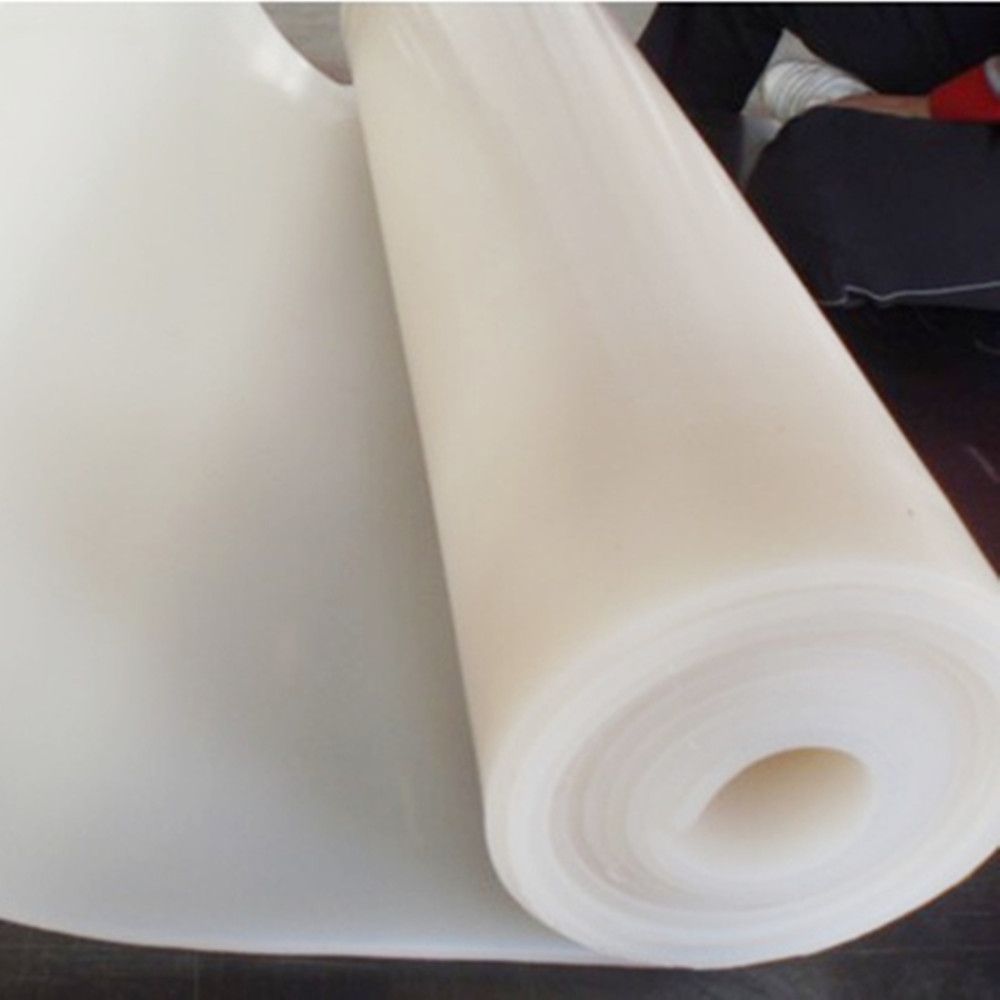

Silicone rubber sheet is designed to be used in applications where physical properties are not critical but extreme temperature resistance is still needed. This material can be manufactured in a variety of colors and hardness with the most common colors being red, gray, black and white. Commercial silicone is an excellent gasket material that has extreme high and low temperature resistance. This material is non-toxic, chemically inert and fungus resistant.
Excellent resistance to heat (dry air), at +200°C continuous and +220°C intermittent.
Remains flexible at low temperatures of -70°C.
Resistant to ultra-violet light, ozone and weathering.
Exhibits low flammability and low smoke toxicity.
Good electrical insulation properties.
High temperature silicone rubber is formulated to withstand intermittent spikes of 500° F temperature operation. Aside from temperature resistance and inherent high flexibility, this silicone rubber has an excellent resistance to water, good electrical insulation properties and inert compounds to resist fungus and mold growth. Exceptional electrical, moisture and chemical resistance, extremely stable and suitable for using with many acids and alkalis. Retains high flexibility.
Application: Commonly used in applications over 500° F. Industrial applications include food processing, packaging, refrigeration, furnaces, lighting, gaskets for crank shaft housings, sumps, gear boxes, water pumps, gas appliances, flues, pipes. heaters, and electrical and electronic devices.
Specifications:
| Dimension | Length | 10m, 15m |
| Width | 0.8m-2m |
| Thickness | 0.8mm-50mm
(0.8mm-20mm in roll, 20mm-50mm in sheet) |
| Physical Properties | Density(g/cm3) | 1.25, 1.3, 1.4 |
| Tensile Strength(Mpa) | 5,6,7,8 |
| Hardness(Shore A) | 40±5,50±5,60±5,70±5 |
| Elongation(%) | 200-500 |
| Color | Black,Red,White,Blue,Green,Grey etc. |
| Surface Finish | Smooth/ Smooth, Smooth/Fabric finished, double Fabric finished |
