Silicone Rubber Heater 12V 5W Heating Element

Name: Silicone Rubber Heater 12V 5W Heating Element
Brand: all-electronics-online.com
SKU: 811738085
Availability: InStock
Rating: 4.7 (50 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V 5W Heating Element
Maximum Thickness:	1.5-4mm
Working Temperature:	-60-250 C
Rated Voltage:	12-360V
Min Size:	20*20mm
Withstand Voltage:	1.5 Kv
Wire Type:	Silicone Braided Wire
Wire Tension:	15n*15n
Structure Material:	Non-Metallic Material
Heat Transfer Surface:	Plate Heat Exchanger
Principle:	Regenerative Heat Exchanger

Product Description

Silicone Rubber Heater 12V 5W Heating Element

Specifications for 12V 5W Heating Element

Temperature Rating	250°C maximum operating
Size/Shape Limitations	Min size 20mm*20mm
Thickness	~0.06 inch(Single-Ply)~0.12 inch(Dual-Ply)
Voltage	Any AC or DC
Wattage	Customer specified(Normal maximum of 0.8-1 watts per square mm)
Power lead wire	Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire
Attachment	Hooks, lacing eyelets, Or Velcro closure. Temperature control(Thermostat)
Description	1. Thinness, lightness, sticky and flexibility 2. Improve heat transfer, accelerate warming and decrease power under the process of operation 3. Heat fast and high thermal conversion efficiency
Features for 12V 5W Heating Element (1) Heating fast and long time using (2) Flexibility and customized shape (3) Waterproof and non-toxic(Waterproof grad:IP68)

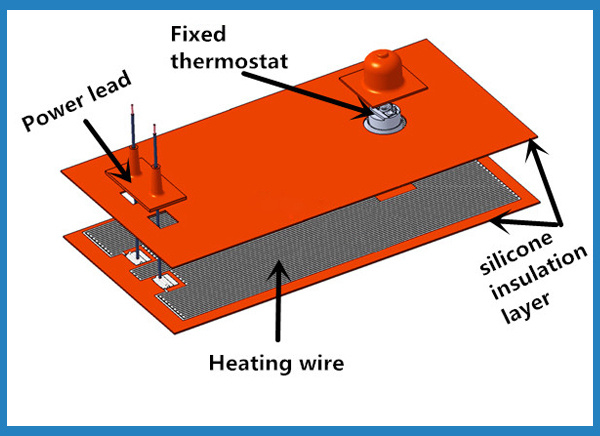

Structure for 12V Heater Pad

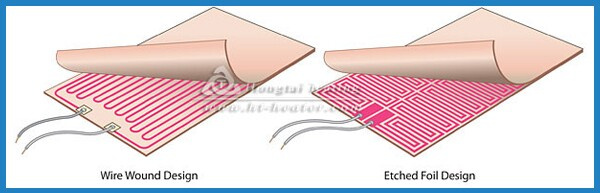

12V 5W Heating Element can be made with etched foil heating elements and wire wound heating elements.

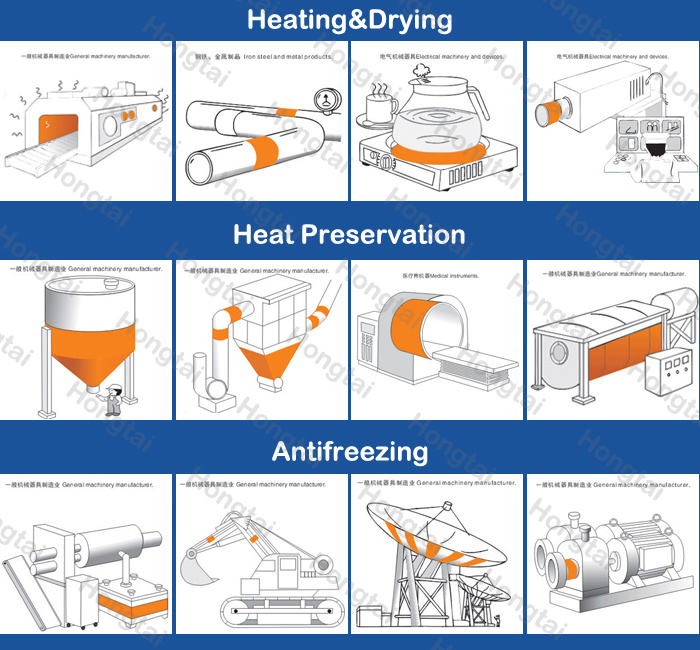

Application for Heating Element

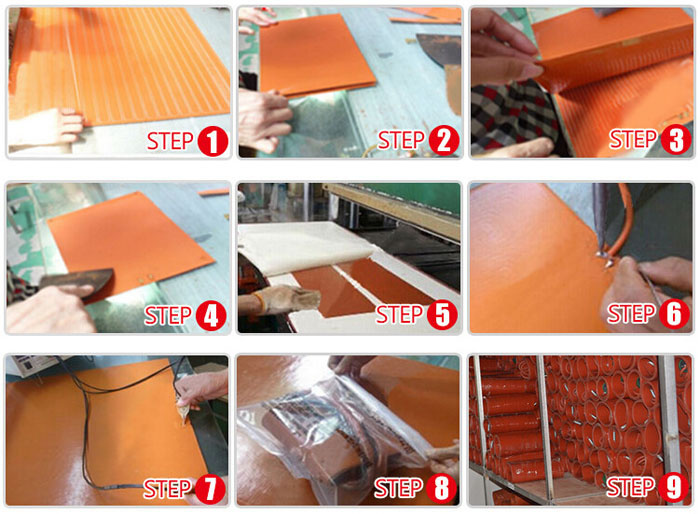

Production Line for 12V 5W Heating Element

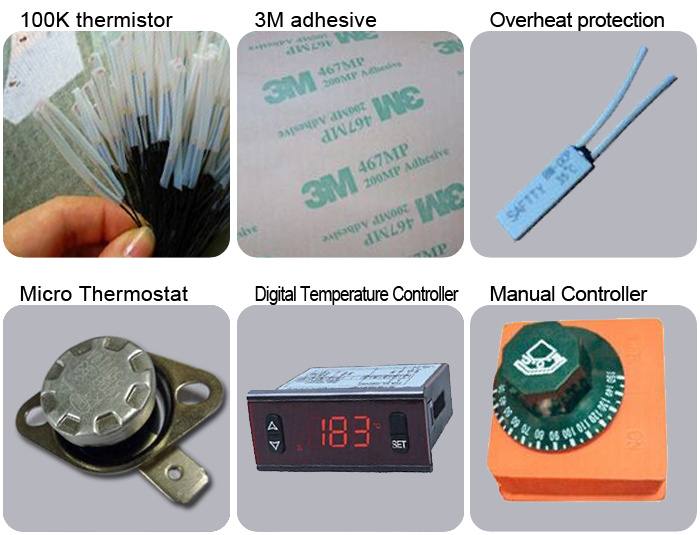

Accessories for 12V 5W Heating Element

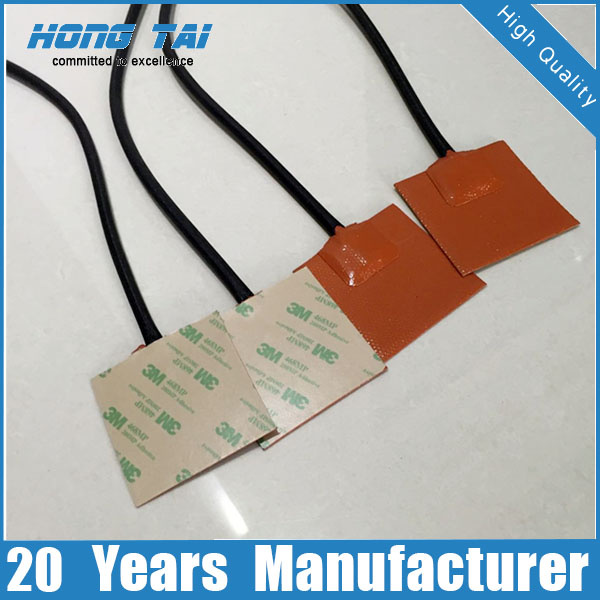

Products Show for 12V 5W Heating Element

Susan Cai

Mobile: 86-153 9672 2106
Fax: 86-515-88353228

Web: www.ht-heater.com

Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).

With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.

We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.

We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.

Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.

Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.

We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
