Silicone Rubber Heating Mat

Name: Silicone Rubber Heating Mat
Brand: all-electronics-online.com
SKU: 720991655
Availability: InStock
Rating: 4.4 (44 reviews)

Price:	US $ 3-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HGBR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Red:	Colour
Voltage:	Any Votage on Request
Power:	Any Votage on Request
Dimension:	Customize
Samples:	Available
OEM/Customize:	Available

Product Description

Product Structure:

The heating element has two types. One of types is a Nickel-Chromium or a Copper-Nickel resistance wire wound around a small diameter fiberglass core, other type use Nickel-Chromium or Copper-Nickel resistance wire.

This resistance is then being placed between two layers of silicone impregnated glass cloth.
The heating mats are very robust, but at the same time very flexible.
The silicone heating mats are manufactured on request, and their dimensions are consequently adapted to any specific requirements.

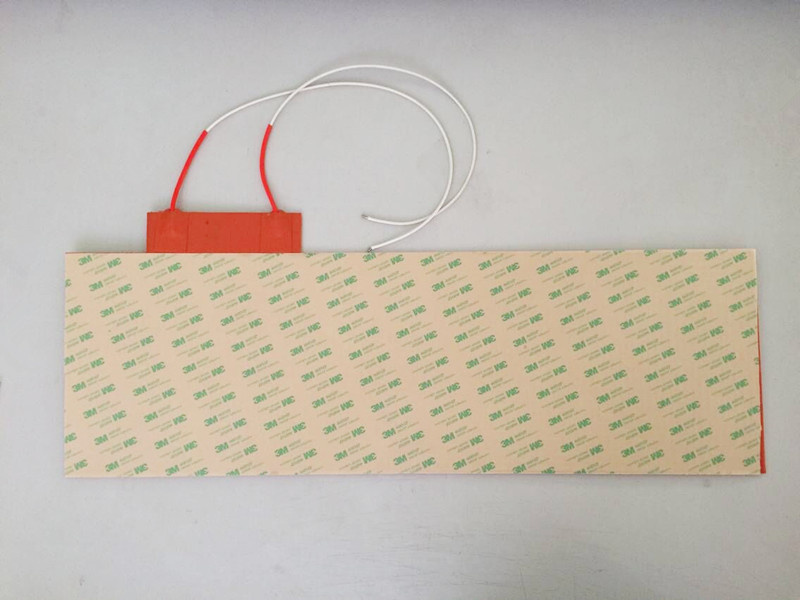

The mounting can be done by the mean of eyelets, hooks or any other type of fastener. The back side of the heating mat can be supplied with a self-adhesive surface.

Product Application:

1. Freeze protection and temperature maintenance of vertical and horizontal tanks.
2. Hopper heating to prevent from clogging and acid corrosion.
3. Heating of press plates.
4. Freeze protection for control boxes.
5. Heating of Freon bottles.
6. Battery warming and freeze protection
7. Equirements temperature maintenance.
8. etc……

Technical Data:

	HGBR	HGBS
Dimension	Dimensions on request

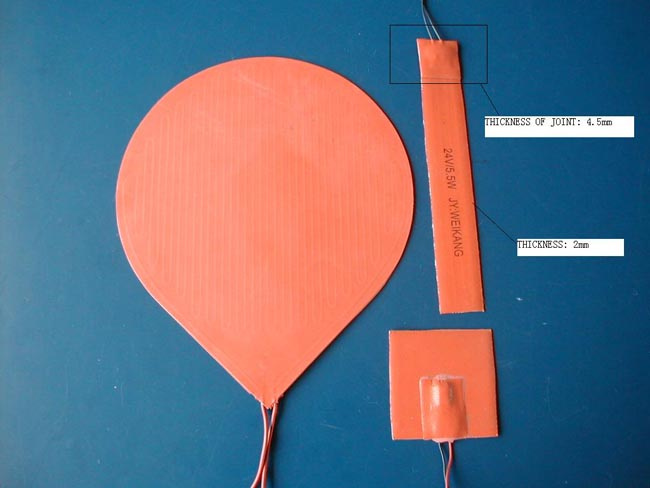

Thickness	2mm Note: There is an extra thickness at the connection point.
Heating element	Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core	Nickel-Chromium or a Copper-Nickel resistance wire
Voltage	Any voltage on request
Output	Up to 5KW/M 2
Tolerance	±10% on resistance
Max surface temperature	200degree
Min exposure temperature	-60degree

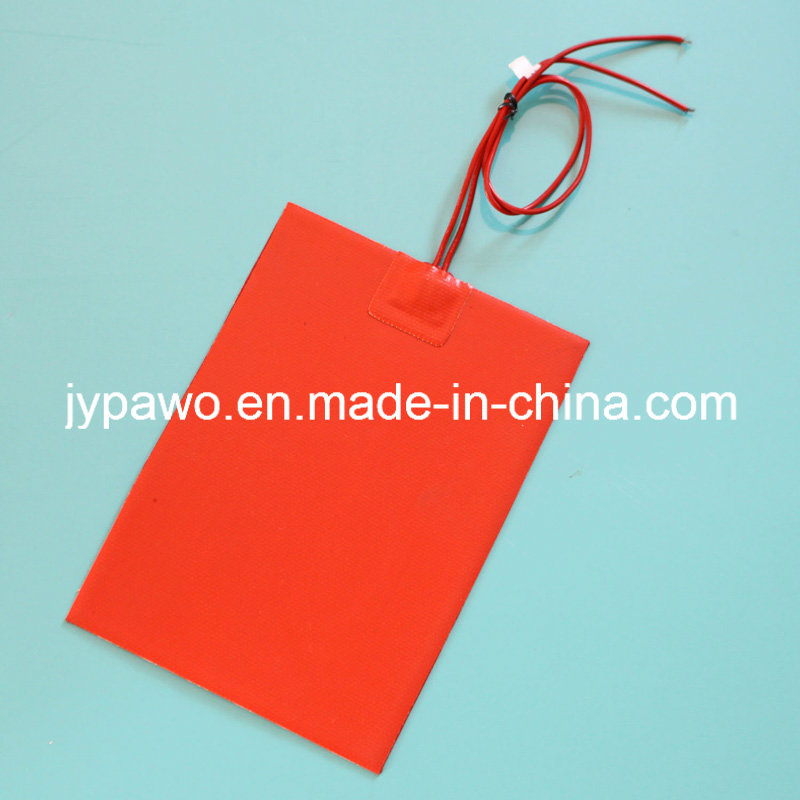

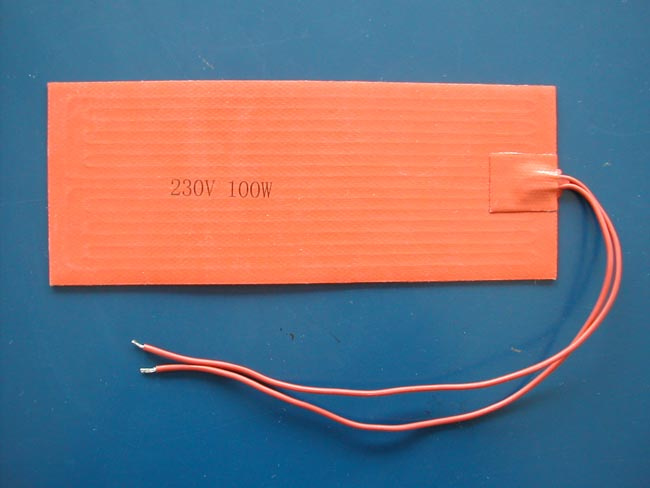

Product Pictures:

Jiangyin Pawo Electronics Co., Ltd. is specializing in supplying heating cable etc.

The supple electric heating element made by our company not only conforms to the strict quality requirement in the position of technology but also keeps a closed cooperative partner relationship with different departments and clients. Since the year of 1999, Pawo has got the ISO9001 certificate and also updates each nation's certificates and product qualification accreditations in every year.

Each day, our engineers and technicians will discuss and research to improve the quality of the product to confront the severe product needs. Our production facility, professional skill of the manufacturing process and the abundant marketing knowledge enable us to provide integrated products which meet to the specific needs of the customer.

Upholding the principle of quality first and user first and propagating the tenet of meticulosity and seeking perfect from perfect, we insist on ceaselessly pursuing consummations to realize a better aim. We will try our best to update and enrich the product range to satisfy your various needs. Through the wide internet agent, dealer and assemble trader, we will build Pawo into a world-class resource platform, a forever reliable defrosting and heat preservation system product in all areas and also an eternal hand-joining friend with the customers in all walks of life.
