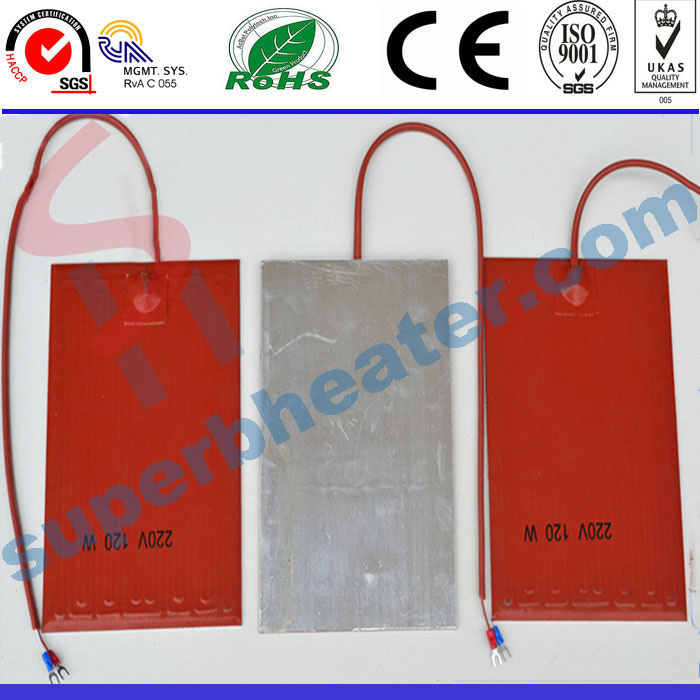

Silicone Rubber Heating Plate with Aluminum Plate
| Price: |
Negotiable/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
with Aluminum Plate |
Product Description
Superb Heater Technology has been focused on the production of new silicone rubber heater since 1985, which is well-known as one of the leading manufacturers and suppliers of new silicone rubber heater. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Silicone rubber heater
Silicone rubber heater produced by superb heater is extremely thin, light and flexible. And the heater with the silicon rubber electric heating plate can transfer heat to any required place. In processing, it can improve heat transfer, accelerate temperature rising and reduce power need. Glass fiber-reinforced silicon rubber can ensure the heater to be stable in dimension, without losing flexibility.
(1) Design according to actual shape and dimension, and adopt three-dimensional geometry to satisfy the requirements of your equipment.
(2) Moisture-proof chemical defense silicon rubber material makes the service life of heater much longer.
(3) It can be simply pasted or attached to your component by vulcanizing, adhesive or fastener, etc.
Applications
Freezing and compression prevention for various instruments and devices.
Medical equipment such as blood analyzer, test tube heater.
Computer auxiliary equipment, such as laser printer.
Vulcanized surface of plastic film.
Technical Data
| Rated Power | Customized | Lead Length | 200mm |
| Rated voltage | 12V-380V | Wire tension | 15N×15N |
| Maximum size | 1000m-1200m | Minimum size | 20mm×20mm |
| Ambient Temperature | --60-----250ºC | Highest temperature | 250ºC |
| Maximum thickness | 1.5mm-4mm | Withstand voltage | 1.5KV |
| Insulation resistance | ≥5MΩ | Size deviation | ±0.5% |
| Power deviation | ±5% | Wire Type | Silicone braided wire |
Oil drum heater
It is beneficial to take out liquid and coagulum in drums easily by heating, such as adhesive, oil, asphalt, paint, paraffin wax, oil and various resin raw materials in the drum. It can make viscosity of materials descending and uniform by heating the drum, and reduce the power of pump. Therefore, the heater does not be restricted by seasons, and can be used throughout the year.
Product Specification
| | Oil Drum Heater
200Liter | Oil Drum Heater
20Liter | Oil Drum Heater
200Liter | Oil Drum Heater
200Liter |
| Size | 250×1740 | 200×860 | 125×1740 | 150*1740 |
| Capacity | 200V 2000W | 200V 800W | 200V 1000W | 200V 1000w |
| The temperature regulates | 30~150ºC |
| Weight | Invite:0.5kg | Invite:0.4kg | Invite:0.3kg | Invite:0.35kg |
For other size,please consult us.
