| Nominal Voltage: |
1000V |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Insulation Material: |
Silicone Rubber |
| Certification: |
CSA |
| Conductor Material: |
Bare Copper or Tinned Copper |
| Range Of Application: |
Household Appliances,Lightings,Electric Equipments |
| Brand: |
Yuanda |
Product Description
Wuxi Yuanda Electrical Material Co., Ltd. Is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and ROHS Environmental Protection Instruction of European Union.

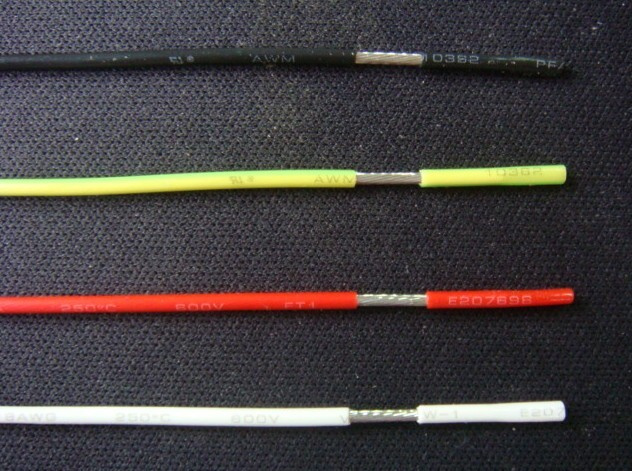

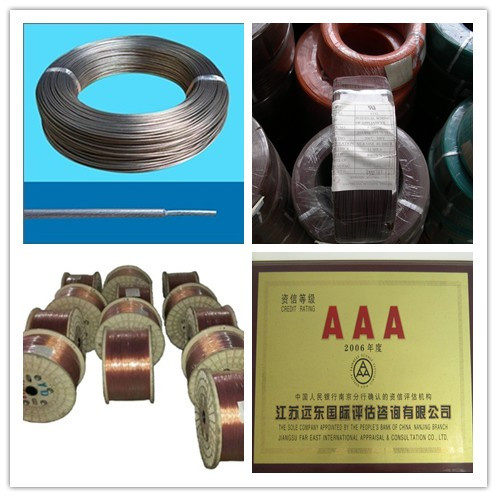

UL3644 High voltage silicone rubber insulated wire:
Technical Data:Nominal Voltage: 1000V
Temperature Range: -60 ° C ~+200° C
Testing Voltage: 2000V
Conductor: Bare Copper or Tinned Copper
Insulator: Silicone Rubber
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Use: Inner fixed wires for Home electric Appliances, lightings, electronic equipment.
Certificate No.: E216252 CSA229260
Specification:| Conductor | Insulation | Resistance
20ºC
Ω/km |
Spec
AWG | Conductor
construction
No./ φmm | Diameter
(mm) | Nominal
thickness
(mm) | Nominal outer
diameter
(mm) | Max outer
diameter
(mm) |
| 30 | 7/0.10 | 0.3 | 0.78 | 1.86 | 2.05 | 364.0 |
| 28 | 7/0.12 | 0.36 | 0.78 | 1.92 | 2.1 | 252.0 |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 2.2 | 143.0 |
| 24 | 7/0.20 | 0.6 | 0.78 | 2.16 | 2.4 | 92.0 |
| 22 | 7/0.25 | 0.75 | 0.78 | 2.31 | 2.5 | 56.8 |
| 20 | 7/0.31 | 0.93 | 0.78 | 2.49 | 2.7 | 40.1 |
| 18 | 7/0.395 | 1.19 | 0.78 | 2.75 | 3 | 23 |
| 16 | 7/0.495 | 1.49 | 0.78 | 3.05 | 3.4 | 14.6 |
| 14 | 41/0.25 | 1.82 | 0.78 | 3.38 | 3.7 | 9.9 |
| 12 | 45/0.32 | 2.5 | 0.78 | 4.06 | 4.5 | 5.38 |
| 10 | 35/0.45 | 3.08 | 0.78 | 4.64 | 5.1 | 3.5 |
| 8 | 44/0.50 | 3.9 | 1.18 | 6.26 | 6.9 | 2.19 |
| 6 | 70/0.50 | 5.5 | 1.53 | 8.56 | 9.4 | 1.41 |
| 4 | 110/0.50 | 6.9 | 1.53 | 9.96 | 11 | 0.92 |
| 2 | 175/0.50 | 8.7 | 1.53 | 11.76 | 12.9 | 0.59 |
| 1 | 217/0.50 | 10 | 2.03 | 14.06 | 15.5 | 0.449 |
| 1/0 | 276/0.50 | 11.2 | 2.03 | 15.26 | 16.8 | 0.335 |
| 2/0 | 342/0.50 | 12.2 | 2.03 | 16.26 | 17.9 | 0.282 |
| 3/0 | 437/0.50 | 13.8 | 2.03 | 17.86 | 19.6 | 0.223 |
| 4/0 | 551/0.50 | 15.5 | 2.03 | 19.56 | 21.5 | 0.177 |
| 250Kcmil | 1009/0.40 | 16.8 | 2.45 | 21.7 | 23.8 | 0.147 |
| 300Kcmil | 1216/0.40 | 18.5 | 2.45 | 23.4 | 25.7 | 0.122 |
| 350Kcmil | 1406/0.40 | 20 | 2.45 | 24.9 | 27.4 | 0.105 |
| 400Kcmil | 1615/0.40 | 21.5 | 2.45 | 26.4 | 29 | 0.091 |
| 450Kcmil | 1813/0.40 | 22.6 | 2.45 | 27.5 | 30.3 | 0.081 |
| 500Kcmil | 2010/0.40 | 23.9 | 2.45 | 28.8 | 31.7 | 0.073 |
| 550Kcmil | 2220/0.40 | 25 | 2.8 | 30.6 | 33.7 | 0.067 |
| 600Kcmil | 2420/0.40 | 26.2 | 2.8 | 31.8 | 34.9 | 0.061 |
| 650Kcmil | 1675/0.50 | 27.3 | 2.8 | 32.9 | 36.2 | 0.056 |
| 700Kcmil | 1808/0.50 | 28.2 | 2.8 | 33.8 | 37.2 | 0.052 |
| 750Kcmil | 1935/0.50 | 29.3 | 2.8 | 34.9 | 38.4 | 0.049 |
| 800Kcmil | 2060/0.50 | 30.1 | 2.8 | 35.7 | 39.3 | 0.046 |
| 900Kcmil | 2320/0.50 | 32 | 2.8 | 37.8 | 41.6 | 0.041 |
| 1000Kcmil | 2580/0.50 | 33.7 | 2.8 | 39.3 | 43.2 | 0.036 |
