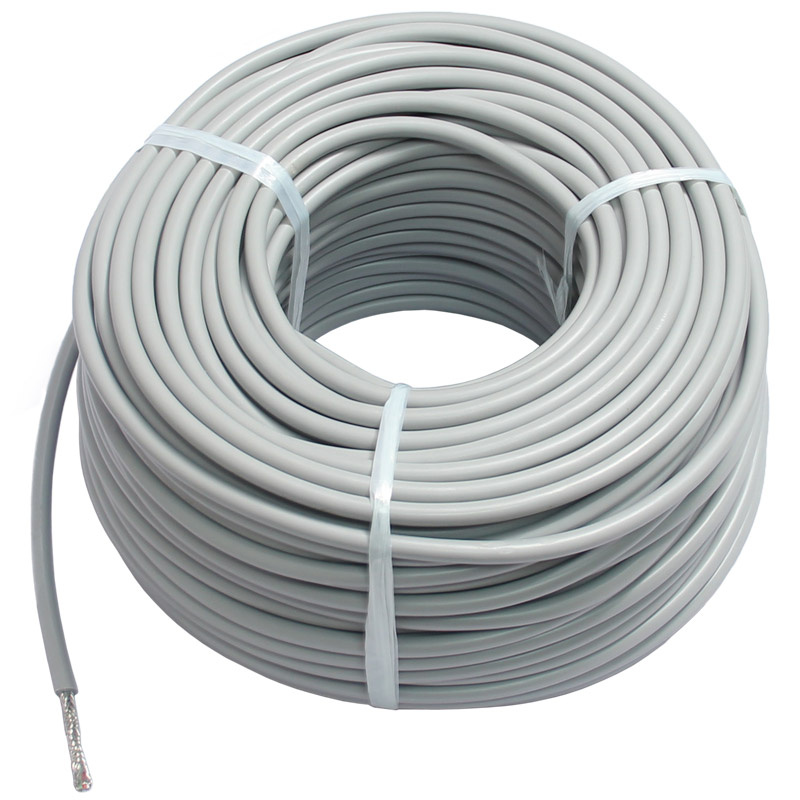

Silicone Rubber Insulated Shield Wire

Name: Silicone Rubber Insulated Shield Wire
Brand: all-electronics-online.com
SKU: 764523955
Availability: InStock
Rating: 4.4 (110 reviews)

Price:	US $ 2.36-8.23/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	dw07
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Shield Wire:	with High Voltage
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Sheath Material:	Silicone Rubber
Brand:	Dwwei

Product Description

Nominal Voltage:600V
Temperature Range:-60ºC~200ºC
O.D Tolerance:±0.2mm
Testing Voltage:1500V
Conductor:Tinned copper
Insulator:Silicone & PVC
Colours:Black-white-grey-brown-blue,etc
They are the same with the inner fixed wires for various models, headlamps,home appliance,machanical
and electrical machine,etc

Conductor			Insulator		Packing
AWG	Conductor construction NO*ømm	Diameter(mm)	Insulator thickness(mm)	Over diameter(mm)	Mt/coils
24	40*0.08	0.58	0.55	3.44	305
22	60*0.08	0.72	0.55	3.58	305
21	49*0.10	0.81	0.55	3.78	305
20	100*0.08	0.90	0.55	3.88	200
18	105*-0.10	1.18	0.55	4.08	200
16	168*0.10	1.50	0.55	4.4	100

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
