Silicone Rubber Insulated Solid Wire

Name: Silicone Rubber Insulated Solid Wire
Brand: all-electronics-online.com
SKU: 712158945
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	US $ 0.04-1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AGR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Agr
Type:	Insulated
Conductor Type:	Solid
Application:	Heating
Insulation Material:	Silicone Rubber
Certification:	RoHS
Conductor Material:	Tinned Copper
Sheath Material:	No Jacket
Range Of Application:	Flame Resistance
Brand:	Werle

Product Description

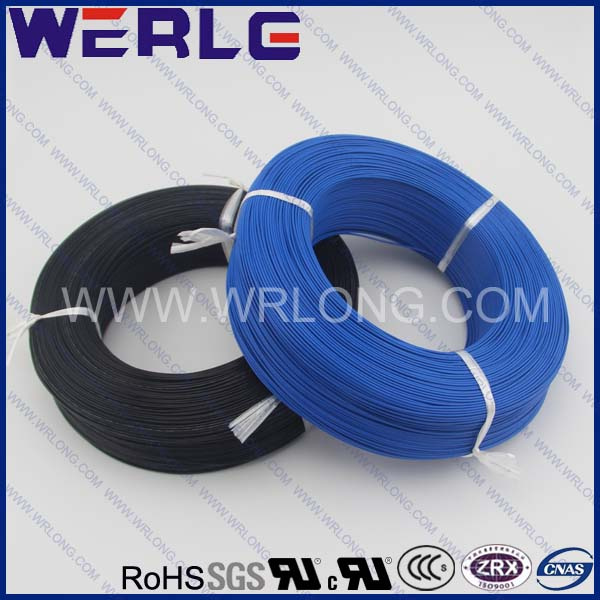

Silicone rubber insulated solid wire

RoHS, CCC
GB/T19001, ISO9001
Rated temperature: -60oC~+180oC
Rated voltage: 500V
Conductor: Solid or stranded wire (0.07~25 mm2 ) of tin-plated or bare copper wire.
Insulator: Silicone rubber.

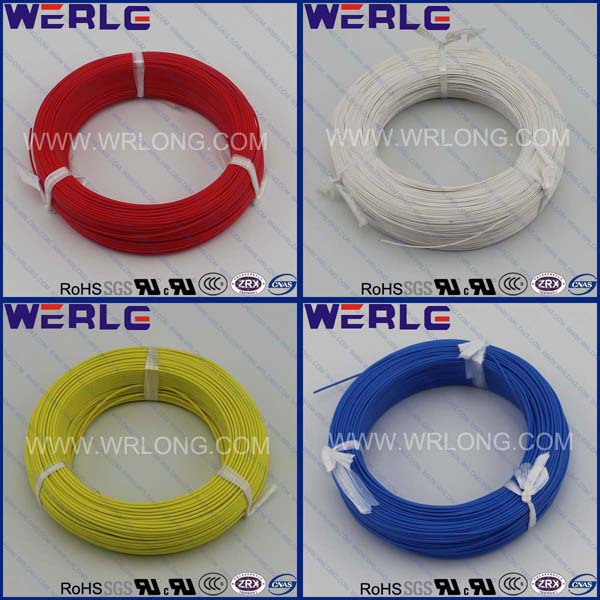

Color: : Red \blue \white \yellow \green \brown \black
Application areas: Insulated protective wire of electronic appliances, lighting equipments, industrial machinery and heated products.
We can make all kinds of special specification silicone wires and braided silicone wires to customer's order.

Conductor		Over Diamter mm		Packing mt/coils
Nominal section mm2	Conductor Construction No./mm	without braid	with braid	Packing mt/coils
0.12	7/0.15	1.30	1.50	500
0.20	7/0.20	1.40	1.60	500
0.30	17/0.15	1.50	1.70	500
0.35	20/0.15	1.60	1.90	500
0.50	20/0.18	1.85	2.05	500
0.75	24/0.20	2.20	2.40	200
1.00	32/0.20	2.30	2.50	200
1.50	30/0.25	2.75	2.95	200
2.00	40/0.25	2.85	3.05	200
2.50	49/0.25	3.45	3.65	200
4.00	56/0.30	4.20	4.30	100
6.00	84/0.30	4.85	4.95	100
10.00	84/0.39	6.40	6.50	100
16.00	126/0.39	8.00		100
20.00	161/0.40			100
25.00	196/0.40	10.00		100

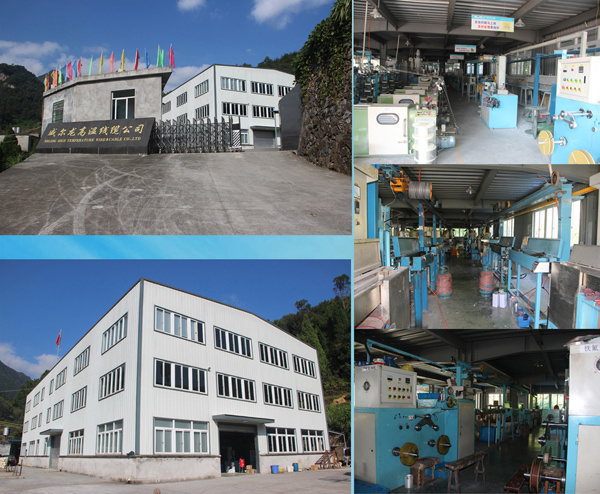

ZHEJIANG WRLONG HIGH TEMPERATURE WIRE & CABLE Co., Ltd is a modernized enterprise which has specialized in high-temperature wire and cable for many years. It locates in the biggest production base of low-voltage appliance in China_YUEQING CITY, ZHEJIANG PROVINCE and it is next to OUJIANG rivers whose throughput is beyond thousands of ton every day as well. It is obvious that its transportation or traffic is very convenient and expeditious.

Our company owns the most advanced production equipment in China at present and we have imported the direct inverter microcomputer-controlled production line device from England. It has all sorts of detection device, abundant funds and trained professionally technicians as well.

Our leading products contain the teflon wire and cable which is used in Aerospace and Astronautics and high - temperature wire and cable which contains the fluoropolymers. Its types have AF46-200, AFK-250, AFPF-200, KFFR-250 and so on. Our company also produce high-temperature precise compensating conductor and its types are KX, KC, BC, SC, EX, IX, TX, NX, NC, EX and so on.

Our products have passed the certification of ISO9001-200, CCC, RoHS, UL and other test reports for the products from relevant organizations or institutions with the persistent efforts of all of the staff in WERLE and the products can find a ready market all over the world.

Our company sticks to regard the technology as guide, quality in pursuit of development as management ideas, quality create famous brands as tenet and thinks highly of quality management of the products in order to realize the integration of production, detection, selling and service and internationalization of the markets.

Society developping and make progresses gradually, WERLE strives with pressure, explore with urgence, struggle with blueprint and contend with smile for better future with the new and old clients together!
