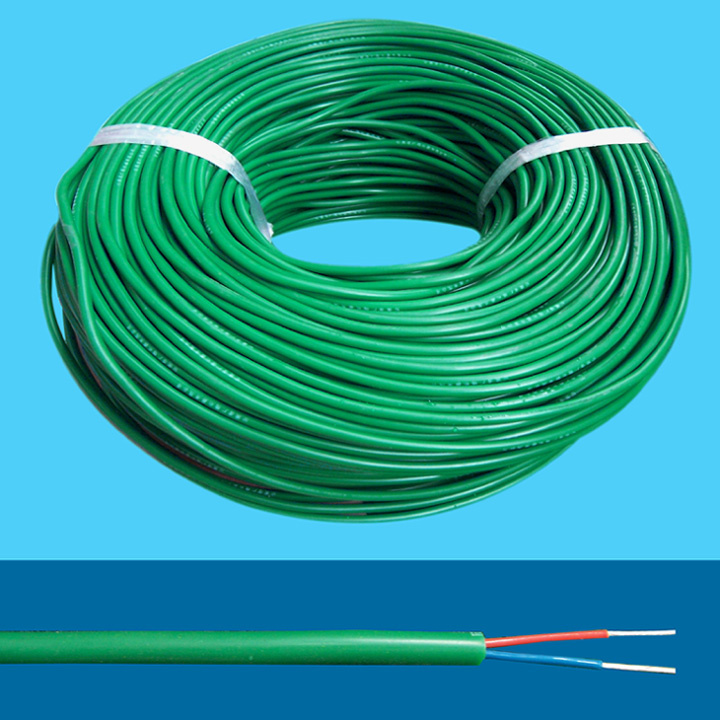

Silicone Rubber Multi-Core Wire

Name: Silicone Rubber Multi-Core Wire
Brand: all-electronics-online.com
SKU: 764693335
Availability: InStock
Rating: 4.9 (84 reviews)

Price:	US $ 0.289-5.42/Meter
Trade Terms:	FOB
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DW12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colours:	Red-Black
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Sheath Material:	Silicone Rubber
Brand:	Dewei

Product Description

Nominal Voltage: 300V
Temperature Range :-60ºC~200ºC
O.D,Tolerance:±0.2mm
Testing Voltage: 1500V
Conductor:Tinned Copper/Bare copper
Isulator:Silicone
Colours:red-black
They are the same with the Inner fixed wires for various of modles,headlamp,home appliance,mechanical and eletrical machine,etc

Conductor			Insulator		Packing
section	conductor constructionNO*ø(mm)	Diameter(mm)	Jacket THickness(mm)	Over Diameter(mm0	Mt/coils
0.05*2C	11*0.08	0.30	0.55	1.2*2.5	200
0.08*2C	16*0.09	0.37	0.55	1.3*2.6	200
0.15-2C	30*0.08	0.50	0.55	1.4*2.8	200
0.20-2C	40*0.08	0.60	0.55	1.6*3.3	200
0.30*2C	60*0.08	0.78	0.55	1.7*3.5	200
0.50*2C	10*0.08	0.92	0.55	1.8*3.7	200
0.75*2C	150*0.08	1.19	0.55	2.3*4.7	100
1.25*2C	252*0.08	1.53	0.80	3.0*6.2	100
2.00*2C	400*0.08	1.85	0.90	3.5*7.2	100
E3.40*2C	680*0.08	2.48	1.00	4.5*9.2	100

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
