Silicone Soft Wire 26AWG with 008

Name: Silicone Soft Wire 26AWG with 008
Brand: all-electronics-online.com
SKU: 755432585
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 0.19-2.98/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	26AWG 008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Silicone Insulated Soft Wire:	008--26AWG
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Brand:	Dewei Wire

Product Description

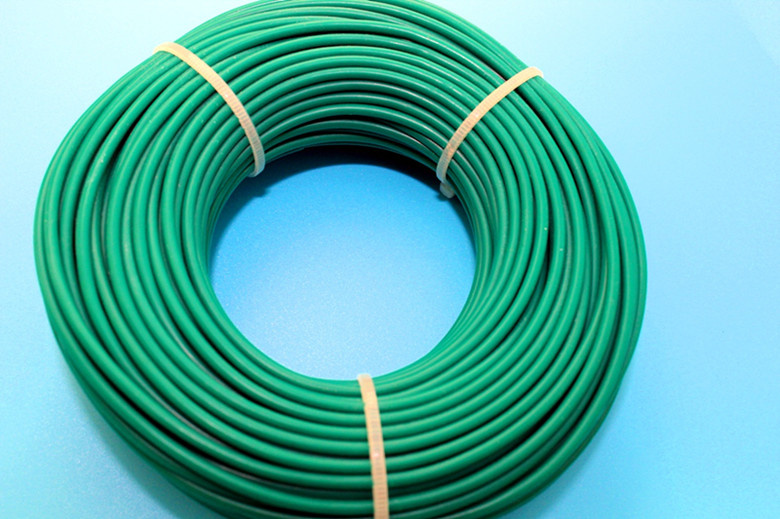

008 Silicone Insulated Soft Wire(DW01)--26AWG
Nominal Voltage: 300V OR 600V
Temperature Range: -60º C to 200º C
Conductor: Tinned, Nickeled, siliver plated, gold plated copper, bare copper
Testing Voltage: 2000V
Insulator: Silicone rubber
O. D. Tolerance: ± 0.10mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
Con. Of conductor.: 30/0.08
Diameter: 0.46MM
Thickness of insulator: 0.55MM
Over diameter: 1.5MM
Packing: 200M/COIL

AWG	con.of conductor.	Diameter	Thickness of insulator	over diameter	Packing
	NO/mm	mm	mm	mm	mt/coils
30#	11/0.08	0.3	0.55	1.2	500
28#	16/0.08	0.36	0.55	1.3	500
26#	30/0.08	0.46	0.55	1.5	200
24#	40/0.08	0.61	0.55	1.6	200
22#	60/0.08	0.78	0.55	1.7	200
20#	100/0.08	0.92	0.55	1.8	200
18#	150/0.08	1.19	0.55	2.3	200
16#	252/0.08	1.53	0.8	3.00	200
14#	400/0.08	1.78	0.9	3.50	200
12#	680/0.08	2.48	1.00	4.50	100
10#	1050/0.08	3.06	1.25	5.50	100
8#	1650/0.08	3.75	1.25	6	100

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
