Silicone Thermal Insulation Sheet

Name: Silicone Thermal Insulation Sheet
Brand: all-electronics-online.com
SKU: 793474775
Availability: InStock
Rating: 4.3 (80 reviews)

Price:	US $ 6-7/Meter
Min Order:	1/Meter
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Silicone sheet
Use Temperature:	-50ºC~200ºC
Thickness:	0.25~0.45mm
Thermal Conductivity(W/M-K):	1.0~2.0
Power:	<6W
Emitting Color:	Changeable
Voltage:	6.0kv
IP Rating:	IP33
Type:	Insulation Sheet
Color:	Pink/Blue/Grey/Yellow/Green
Certification:	RoHS, EMC, UL, SGS

Product Description

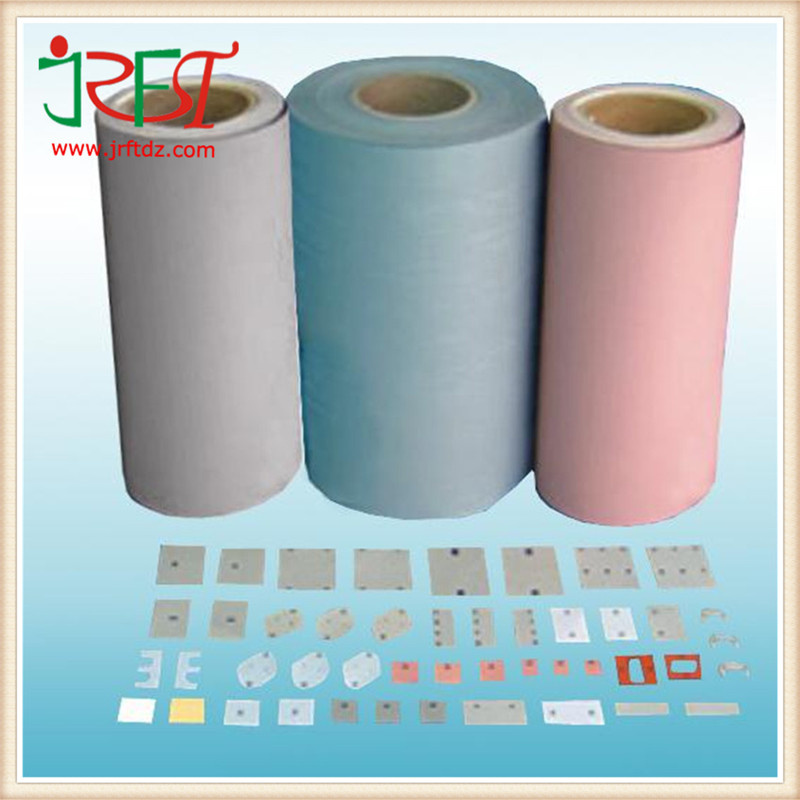

Silicone Rubber Coated Glass Fiber Cloth

Product Introduction
BM180 Insulator silicone sheet is used to high thermal insulation products. These products generally take low to tighten pressure element fixed way.

BM180 highly suitable for smooth surface, has high thermal conductivity, this feature makes the interface thermal resistance under the low pressure reduced to a minimum. Low fastening pressure applications including using reed fixed dispersive semiconductor devices.

Insulator silicone sheet has the characteristics of smooth surface that make the interfacial thermal reduce to a minimum, so as to obtain the maximum cooling performance.

Characteristic
1.Strong tension resistance,
2.wear resistance, good insulation performance,
3.Non adhesive, surface thin thickness, suitable for thermal insulation of power devices,
4.This product has a superior wear resistance and tensile, recognized by many customers, may flush type into any shape.

Application:
1. Military, aviation
2. Electronic switching equipment
3. Automobile electronic heating module
4. Motor control, communication equipment
5.Large power source , heating power device
6. Audio-visual products, TO integrated module
7. Power semiconductor, IS MOS tube IGBT chip
8. High voltage, high temperature, high power welding machine etc.

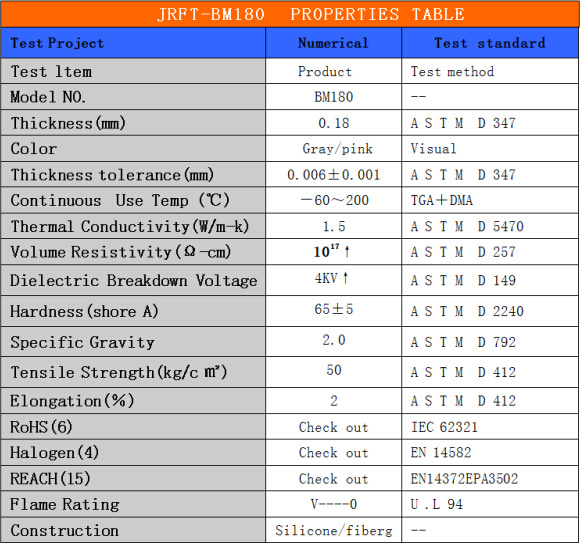

specifications:
Sheet, die-cutting, roll, with adhesive and without adhesive
Basic size
0.18mm*300mm*50m
Sheet can form different shapes according to the customer request processing, also can undertake gum processing to meet the customer demand.

Contact ways:

Mobile : +8613430438515

Website: www.jrftim.com

Add: 3th Floor,Block 2,Yinghe industrial Zone,Dalang village,Longhua New District,Shenzhen city,China 518109

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.

Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.

Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.

High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
