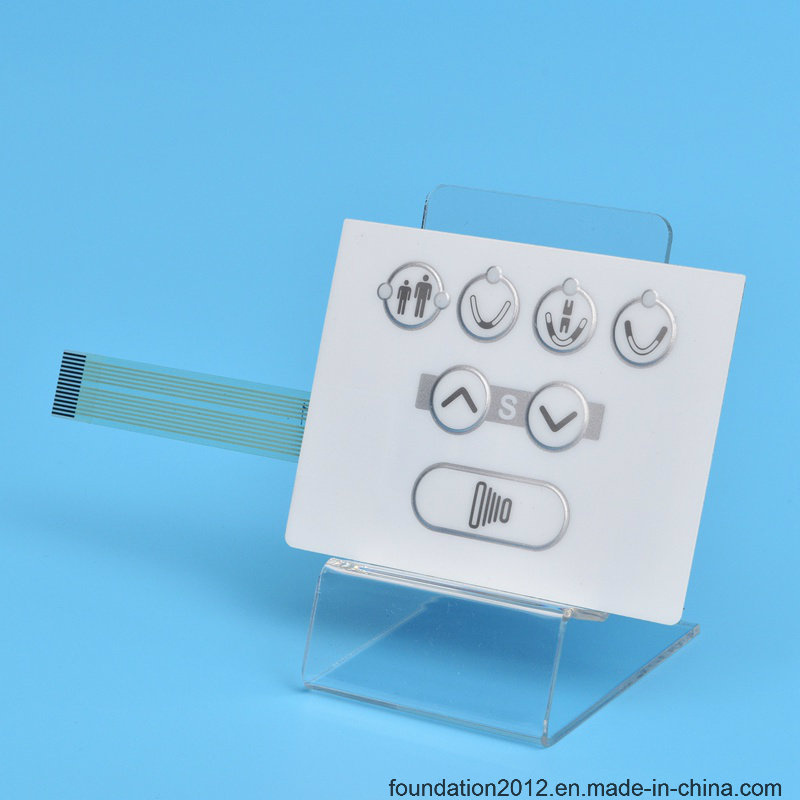

Silk Screen Printing Circuit Membrane Switch Control Keypad

Prod Model:	HC-MS-065
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
9.63'':	2.23''
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Exterior:	Good Looking
Touch Feeling:	Excellent Touch Feeling
Type:	Flexible
Material:	PET
Application:	With Remote Control
Brand:	Tkm

Product Description

Silk Screen Printing Circuit Membrane Switch Control Keypad

Overlay: Autotype PC or PET /F150, F200
Flexible printed circuit FPC, or PET membrane edition are ok.
Material: Polyester witch conductive sliver and carbon
Rear adhesive: 3M 467MP, 3m 468MP, 3m9472le, etc

Flexible circuits:
1.100% quality tested
2. Long life expectancy
3. LED inside( bi-color)
4. FPC - double side circuit/ single side circuit available.

Performance indicators:
1. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω --700Ω (according the trace length and materials to confirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms dielectric withstand: 250vrms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical properties actuation force: Flat type 57-284G (2-10 oz), tactile type 170-397g (6-14 oz) switch stroke: Flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters
Operating temperature: -40 - +80, storage temperature: -40 - +85 humidity: 40, 90% -95%, 240 hours.
Matching color: Pantone color matching system.

Production lifetime: 1 million times.
Unit price: Negotiable/
Shipment terms: EXW, FOB shenzhen or Hongkong.
Payment terms: T/T
Origin: Dongguang
Packing: In carton
Materials: Textured PC, gloss PC with matte finish, autotype pet and PVC
Thickness: 0.5, 0.7, 0.8 and 1.0mm
LED windows: Clear or translucent with all colors
Embossed keys: Polydome and rim
Metal dome: Brand of nicomatic and innovan, nickel and gold plated
Tail: With mylar and UV
Connector: Nicomatic, fci, molex and zif
Adhesive: 3m 467, 468, 3m9495, 3m7945 and 3m7959

Notice: We have the capacity to provide you membrane switches with other special requirements, such as water proof, shielding, windows/lens coating, embedded LEDs, UV glossy/ matte/ textured, etc.

	Technical Specification Of Membrane Swithc
wire lead resistance:	<1Ω/CM		Life time:	>1 Million times
rated current:	25-100mA,0~30V DC		Operation Temperature:	-104°F~158°F
Rated Voltage:	<50V, DC		Operation Humidity:	at104°F,<98%RH
Insulation resistance:	<100MΩ,250V DC		Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm		Base Material voltage withstand:	1500 V DC
	tactile type:0.3-1.5mm		Tail flexiblility:	any angle within 180 degree
