Silk Screen Printing Control Keypads Flexible Circuit Membrane Switch

Name: Silk Screen Printing Control Keypads Flexible Circuit Membrane Switch
Brand: all-electronics-online.com
SKU: 701095165
Availability: InStock
Rating: 4.4 (146 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHC-MS-027
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	198.00mm*47.00mm
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Touch Feeling:	Excellent Touch Feeling
Material:	PET
Type:	Rigid
Application:	With Remote Control

Product Description

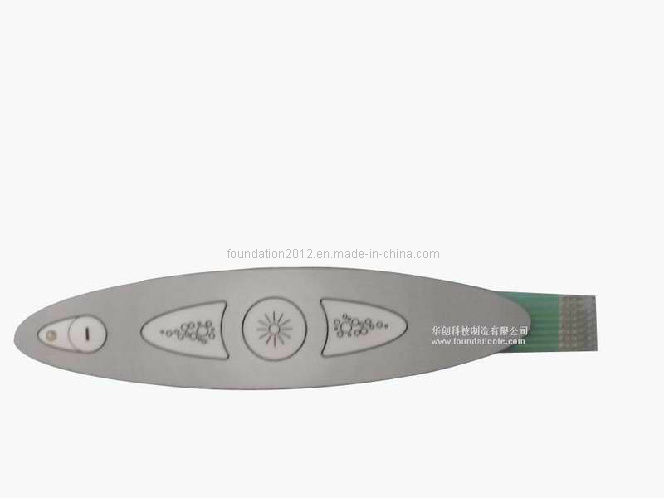

Silk Screen Printing Control Keypads Flexible Circuit Membrane Switch

Structure and Specification:
1.1) Size: 198.00mm * 47.00mm;

1.2) S/S Printing Colors: 8 Colors of S/S Printing; ( 5 Colors for Overlay + 3 Colors for Printed Circuit );

1.3) Keys: 4 Keys with Gold Plated Metal Domes and No Embossing;
1.4) LED: 1 Red/Green (with Embossing on The LED Window);
1.5) Structure: Overlay: V150 + Spacer: Kk 0.025mm + Dome Retainer: Pet0.025 + Domes Fixed: Kk 0.188mm + Switch Ciucuit: Pet0.125 + Rear Adhesive: 3m9495 300lse;
1.6) Connector: 8 Pin (Nicomatic Om08);
1.7) Total Thickness: 0.883mm;

Welcome to Your Specific Inquiry, Any Problem or Insterest in Our Products, Pls Contact Us Freely. Let's Talk Details!

	Technical Specification Of Membrane Swithc
wire lead resistance:	<1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0~30V DC	Operation Temperature:	-104°F~158°F
Rated Voltage:	<50V, DC	Operation Humidity:	at104°F,<98%RH
Insulation resistance:	<100MΩ,250V DC	Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
