Sillicon Rubber/Low Voltage/High Temperature/Electric Power Cable

Sillicon Rubber/Low Voltage/High Temperature/Electric Power Cable
Price: US $ 22/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 100/Meter
Pay Type: L/C,T/T
Prod Model: GG, FF, FG, FF22, GG22
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage Range: 0.6-1kv, 450/750V
Insulation: F Plastic, Sillicon Rubber
Conductor: Copper
Cross Section: 1.5-400mm2
Core Number: 1-5, 3+1, 3+2, 4+1
Fire Resistance: Available
Flame Retardant: Available
Waterproof: Available
Current: AC Cable
Application: Car
Certification: IEC
Model: Gg, FF, Fg, FF22, Gg22
Brand: Qiangling
Sheath Material: PVC, F Plastic, Sillicon Rubber
Voltage: 450/750V, 0.6/1kv
Insulation Material: F Plastic, Sillicon Rubber
Wire Core Material: Copper

Product Description

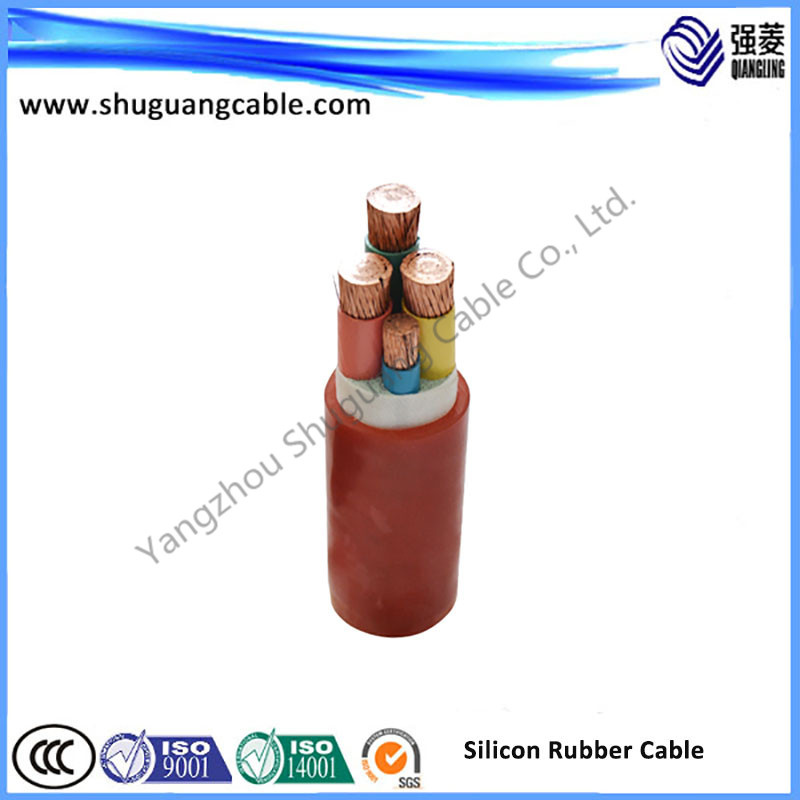

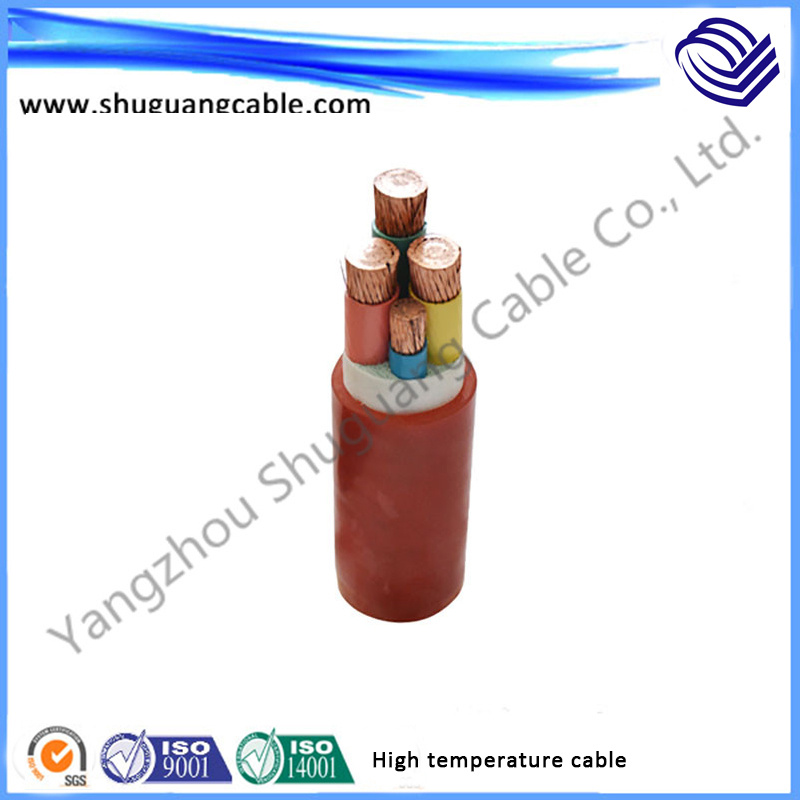

Sillicon Rubber/Electrical /Low Voltage/ High Temperature/Power Cable

1. Applicable Standard
GB/T 12706-2008, Company standard Q/321084 KLA-2013

2. Performance of Usage
1) Rated voltage UO/U: 0.6/1kV
2) Max.working temperature allowed: 200ºC for cable with fluoroplastic insulation and sheath, 105ºC focablwitfluoroplastiinsulation,105ºC heat resistanc and PVC sheath, and 180ºC for cable with fluo- roplastic insulation and silicon rubber sheath.
3) Max temperature of cable conductor is no more than 250ºC during short circuit (The longest lasting time is no more than 5s).
4) Temperature for installation is no less than -15ºC. 5: Bending radius of cable as follows:
It is no less than 20 times that of cable outer diam- eter for cable with single core
It is no less than 15 times that of cable outer diameter for cable with 3 cores
6: Power cable with fluoroplastic insulation and sheath has good features of chemical corrosion resis- tance, high temperature resistance and flame retardance.

3. TypanDescription
Type    Description
FFHigh temperature resistant power cable with F   insulation and sheath
FF22High temperature resistant power cable with F   insulation and sheath, steel tape armoring
(ZR)-FGHigh temperature resistant power cable with F   insulation ( flame retardant)and silicon rubber sheath

(ZR)-FG22
High temperature resistant power cable with F   insulation ( flame retardant), silicon rubber sheath and steel tape armoring

(ZR)-FV
High temperature resistant power cable with F  insulation ( flame retardant), 105ºC heat resistance  and PVC sheath

(ZR)-FV22
High temperature resistant power cable withinsulation ( flame retardant), 105ºC heat resistance , PVC sheath and steel tape armoring

4. Specification
Type Core number Nominal cross section area

FF


1,2,3,4,5,

3+2,3+1

1.5~95

FF22

2.5~70

(ZR)-FG,(ZR)-FV

1.5~240

(ZR)-FG22,(ZR)-FV22

2.5~240

5. TechnicaParameter
1) DC resistance of conductor at 20ºC shall meet the requirement of GB/T3956 standard.
2) Cable shall bear AC voltage test of 3500V for 5min without puncture of insulation.




Yangzhou Shuguang Cable Co., Ltd, was founded in 1985, a specialized wire and cable manufacturer lies in the northern suburb of famous and beautiful Yangzhou city with long history and culture.It is a "State-Grade Key High-Tech Enterprise", one of the "Top Hundred Chinese Electronic Information Enterprises", "Grade AAA Credit Enterprise", one of the enterprises who "Respects Contract and Keep Faith in Jiangsu province, "Excellent Provincial Private-Owned Enterprise", "Provincial Enterprise with Harmonious Labor Relations", and it obtained the first "Mayor Quality Award" in 2010.The series of "QIANG LING" branded cable products were awarded the "State Quality Inspection Exemption" and "Jiangsu Provincial Famous Brand".

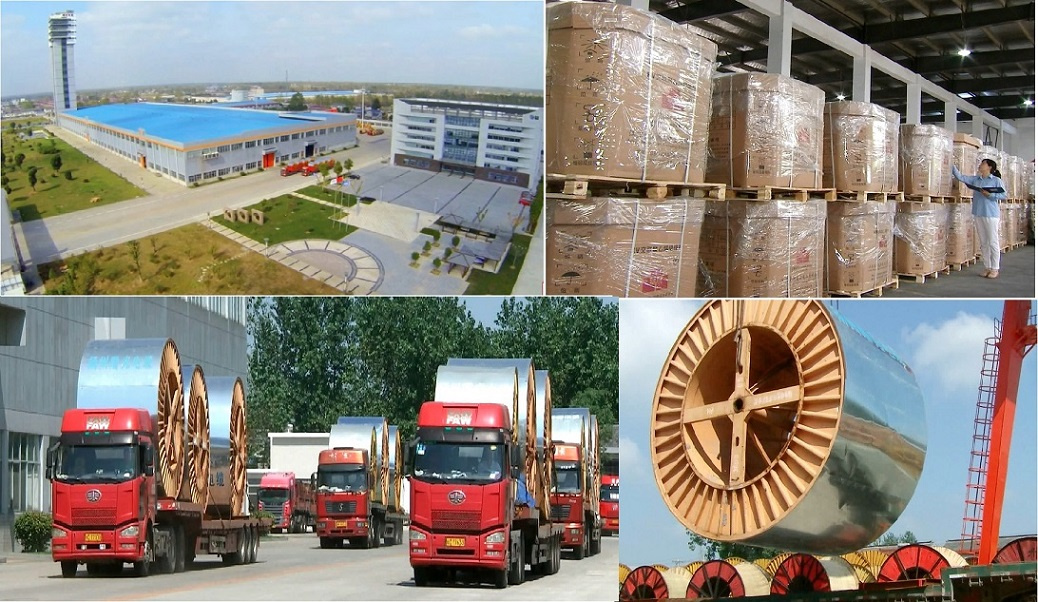

With 92,000 square meters structure area in total 280,000 facility square meters, RMB 780 million Yuan self-owned net assets and nearly 800 workers and staffs, Shuguang took lead into passing ISO9001 Quality Management System in 1996, and successively passed Products Safety Certification, ISO14001 Environmental Management System, GB/T28001 Occupation Health & Safety Management System and ISO10012 Measurement Management System.We standardized our work process by adopting ERP Management System.

We provide more than 20 series of products including:Up to 500kV and 220kV cross-linking power cables, plastic cable, overhead insulated wire, shielded control and computer cable, irradiation cross-linking cable, Grade 1E Class K3 cable for nuclear power station, mine safety cable, rubber cable, wind energy cable, direct current cable, compensation cable, high temperature resistant cable, communication optical fiber cable, etc.Which are extensively applied in power, metallurgy, petro-chemical, energy, traffic, and telecommunication systems successively served in several domestic and overseas projects such as State Grid, Southern Power Grid, Three Gorge of Yangtze River, Datang Togtoh Power Station, Qinshan Nuclear Power Station, Sanmen Nuclear Power Station, CNPC Pengzhou 1 Million Tons/Years Ethylene Project, Changqing Oilfield, Changchun Rail Transporation, Zhongnanhai Substation, railway from Beijing to Tibet, Wuhan Iron and Steel Corp., SINOPEC Wuhan 800 Thousand Tons/Years Ethylene Project, BASF-YPC, Tongli ±800kV Converting Station, Southern Anhui 1000kV Substation, Sino-Burma Oil-Gas Pipeline Project, etc.The quality and services of our products received consistent praises from the clients and market.

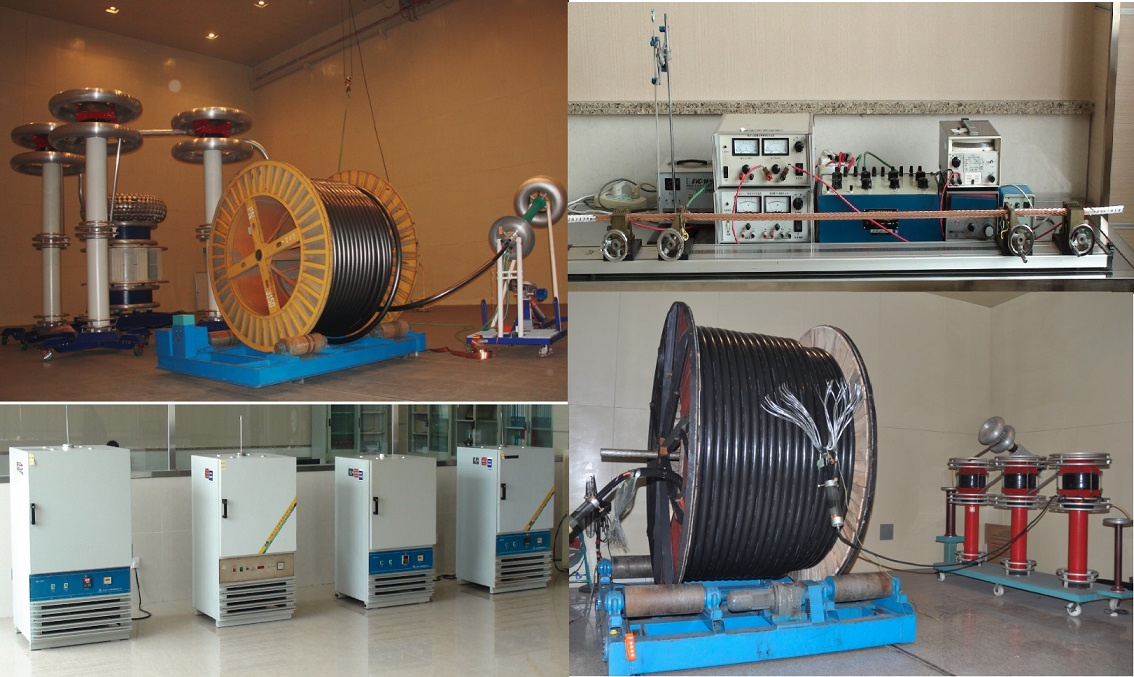

With 8 Ult-high & High voltage cross-linking cable production lines, 2 conductor stranding production lines and full set of inspection equipment imported from Finland, Germany, America, UK, Swiss, Austria and other developed countries, Shuguang Cable drives ahead in the industry of wire and cable manufacture.After a long period of recruitment and education, we have formed up an excellent technical and management team which can promote the sustainable development of our company.We are vigorously strengthening the ability of research and development and innovation through enhancing the relationship and cooperation with colleges, universities and scientific and research institutions.We have successively assumed 79 provincial and above science and technology projects, including 8 National Important New Products projects, 13 National Torch Program and Spark Program projects, 3 national Innovation Fund projects and we also participated in drafting and revising of 24 national and industrial standards in cable industry.

"Striving cohesively, devoting selflessly, keeping progress with times and challenging the future" has been keeping as the enterprise culture to Shuguang people for years.During the sustainable development, Shuguang will further play full role of our advantages, by "Market Orientation, Customer Satisfaction, Innovation for development and Lean Management for benefit".Forge ahead and keep surpassing, we will always make contributions positively to harmonious society construction.
