Silo Weighing Load Cell with Mounting Kits

Name: Silo Weighing Load Cell with Mounting Kits
Brand: all-electronics-online.com
SKU: 829853065
Availability: InStock
Rating: 4.7 (67 reviews)

Price:	US $ 30/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-22
Capacity:	0.5t to 5t

Product Description

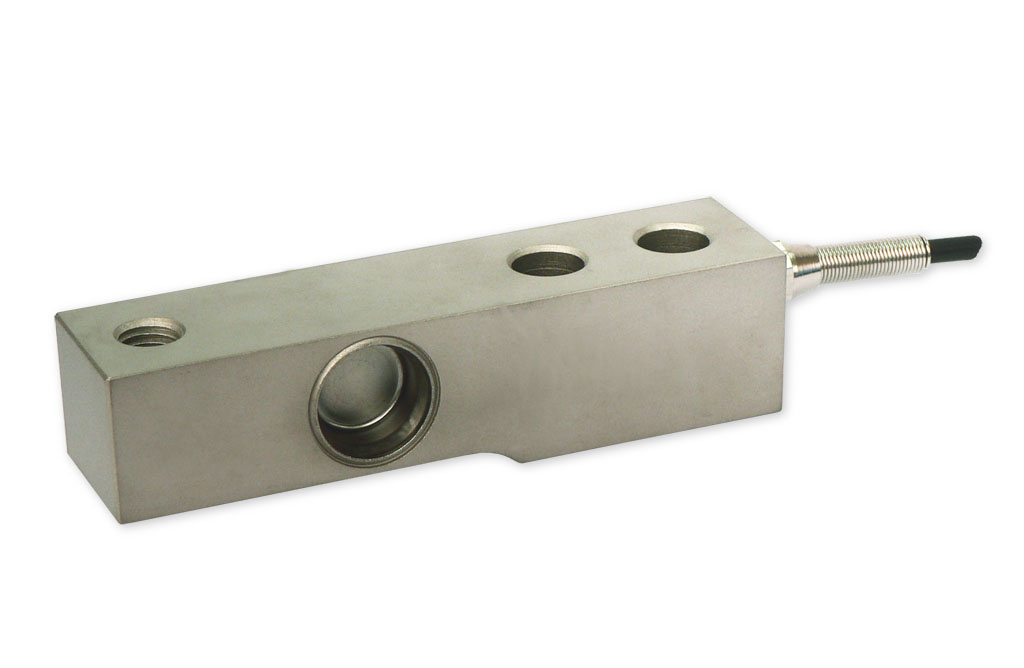

QH-22 Grain hopper weighing scale load cells are available in the capacities from 0.5t to 5t.

Alloy steel & stainless steel construction with single shear beam type.
Silicon adhesive,hermetically sealed,anti-oil, anti-corrosion and suitable for a variety of environment.
Integral structure and easy installation.
Suitable for truck scale, railway scale,weighbridge, hopper scales and other electronic weighing devices

Features:
1.Capacity :0.5t to 5t.
2.Defend grade: IP67 & IP68.
3.High accuracy,easy to install.
4.Low profile and nice exterior.

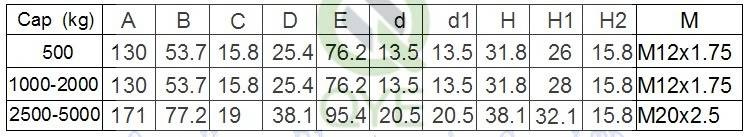

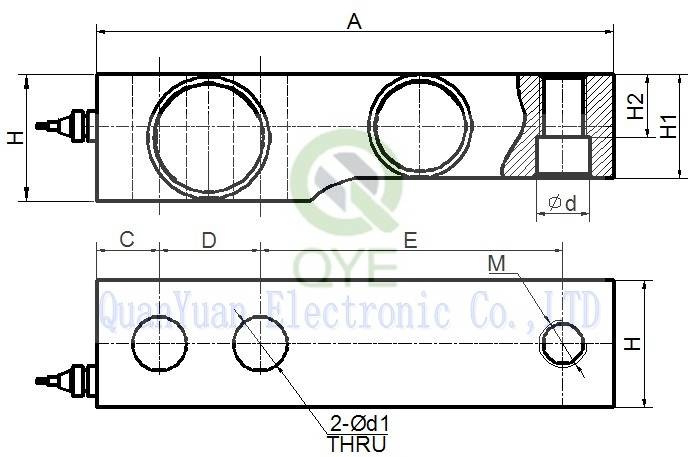

Electrical connection and Dimensions:(dimension unit:mm)

Technical Specifications

Specifications:
capacity	t	0.5,1,2,5
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	3.0 ± 0.003
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03	±0.02
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.03	± 0.02
hysteresis	%FS	± 0.03	± 0.02
repeatability	%FS	± 0.02	± 0.01
creep	%FS/30min	± 0.03	± 0.02
input resistance	Ω	350 ± 5
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	°C	-20 ~ +55
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.025	± 0.017
temperature coefficient of ZERO	%FS/10°C	± 0.03	± 0.03

Electrical connection:
Excitation+ red     Excitation- black   Signal+ green   Signal- white
Four-core shielded cable with polyethylene.
Cable diameter: 5mm
Cable length: 3 m
The cable length could be chose by customer's application.

Ordering code:model(QH-alloy steel,QB-stainless steel)-range- rated output-accuracy-defend grade- the length of cable
Example:QH-22-5t-3.0mV/V-0.03%FS-IP68-3m
