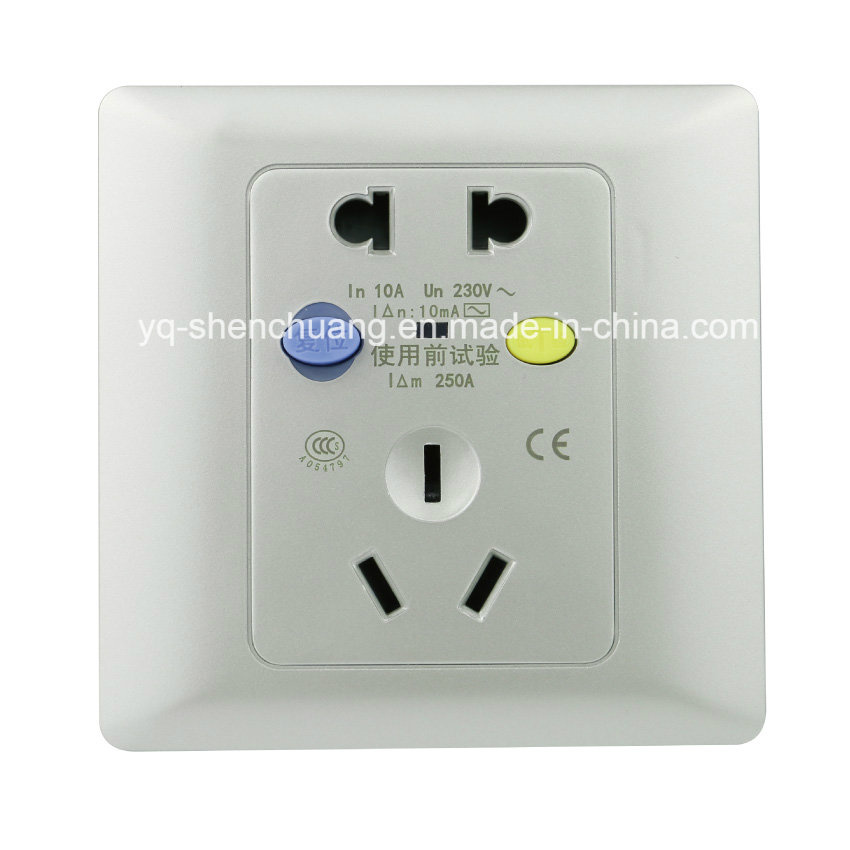

Silver New Ground-Fault Circuit Breaker Outlet

Prod Model:	CF-BL5B-2
Grounding:	Standard Grounding
Type:	With Switch
Application:	Hospital
IP Rating:	IP65
Brand:	Jingshang

Product Description

Saipwell New Ground Fault Circuit Interrupter

Product features and application

1. Matrial: ASIC and special material, with high susceptiveness and reliability.

2. Function: When appliance leakage happens or human gets an electric shock, this product
Can automatically Cut off power promptly, protecting appliance and people's life.

3. Protection Grade: . Waterproof and dustproof

4. Usage: . Users can assemble cable by themselves.

5. Applicable Area: Germany, France, Korea, Middle East, North Europe, Russia etc.

Main Data

1. Rated Supply Voltage(Un): 125V/60Hz/AC

2. Supply Voltage Range: 102V-132V AC

3. Range Current(In): 15mAps

4. Ground Trip Current(In): 4mA-6mA

5. Trip Time(T): When In=6mA, T≤ 0.1s; When In=264mA, T≤ 0.025s

6. Withstanding voltage: 1500V AC

7. Withstanding Surge Voltage: 6000V

8. Endurance operations: More than 3000 operations

9. Operating Temperature(TM): -35° C~66° C

10. Relative humidity of the environment(RH): When environment temperarure 25° C, lower than 93%

11. The product possesses rain-proof ability

12. Reset automatically while inserting the power(Put through the load power); Trip automarically when the
Power is unusual and on the low side in voltage (Disconnection load power);

13. Controller: 102X45X75mm

14. Other indexes accord with UL 943 standard demand

Application Fields:

1) Belongs to the class I portable electrical equipment and hand-held power tools (Class Ielectrical products, product protection against electric shock not only rely on basic insulation of the equipment, but also contains an additional safety precautions, such asshell ground);
