| Prod Model: |
gps103b |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE |
| Weight: |
120g |
| Size: |
83*54*26mm |
| Shipment: |
DHL, UPS, EMS etc |
| Delivery Time: |
1-3 Working Days |
| Sensitive: |
-159dBm |
| GSM Network Frenquecy: |
850/900/1800/1900MHz |
| Tracking Solution: |
SMS,GPRS Web Platform,Android Ios APP Tracking |
| Get Location Address: |
by SMS,GPRS |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Screen Size: |
No Screen |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description

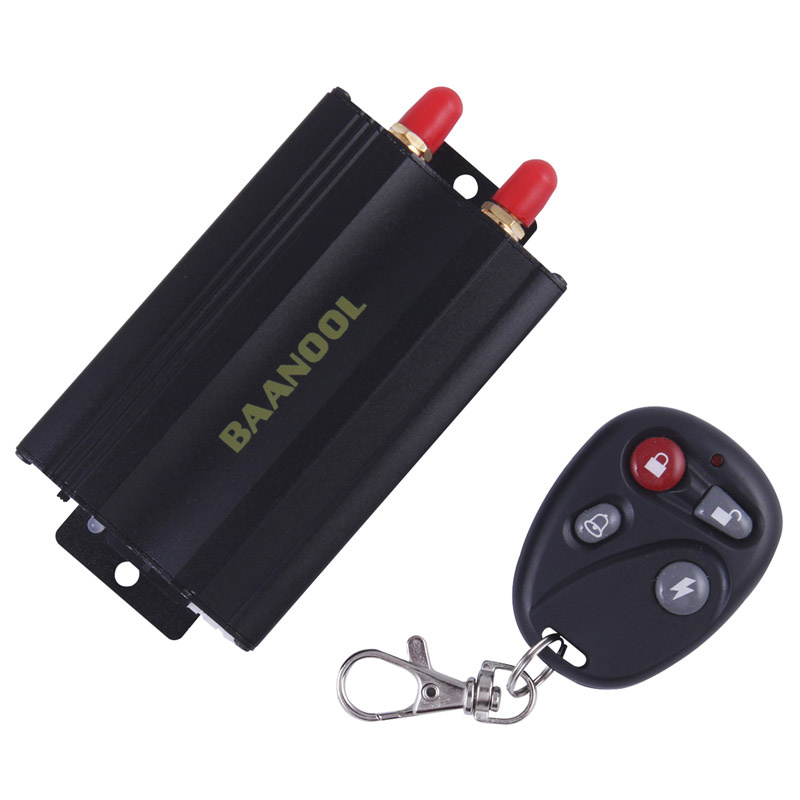

How does the GPS Car Tracker work?
All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.
The unit is powered by automotive battery, and should be installed inside a vehicle .
Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Applying directions: Vehicle fleet/logistics/Vehicle rental
Technology parameter:
*Dimension: 83mm*54mm*26mm, 120g in weight
*Network:GSM/GPRS
*GSM Network frenquecy: 850/900/1800/1900Mhz
*channel: Parallel 20 channels
*sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix: Cold status 45s, Hot status 1s
4 tracking solutions :
- SMS tracking by calling , return google map link
- Absolute street address by sms
- Optional Android IOS app tracking application
- Optional web server www.gpstrackerxy.com
What is in the box :
1x GPS unit
1x GPS antenna
1x GSM antenna
1 x MIC
1 x Harness
1x Relay
1 x Manual
(Remote controller is optional )
13 languages web platform : www.gpstrackerxy.com ( demo ID :demo ,password:8888 ) .
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
