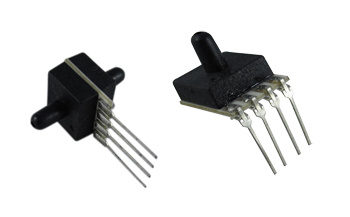

Simple Piezoresistive Silicon Air Pressure Sensor (PC24)

Simple Piezoresistive Silicon Air Pressure Sensor (PC24)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: T/T,Western Union
Prod Model: PC24
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range: 0~100PA...10kpa
Pressure Reference: Gauge, Absolute, Differential
Output: ≥30mv
Excitation: 1.5mA, 5VDC
Compensated Temp.: None
Operating Temp.: 0ºC -50ºC
Input Impedance: 2KΩ-5KΩ
Housing Material: Plastic

Product Description

Piezoresistive silicon chip employed
Without temperature compensation


PC24 pressure sensor is suitable for dry and non-corrosive air measuring. It is easy for mounting with PCB. It is a solution for low cost application with low requirements.

Medical application
  1. Hospital and portable ventilator
  2. Oxygen concentrators and O2 Therapy
  3. Sleep apnea
  4. Operating room
Industrial application
  1. Environmental
  2. Technology
  3. Manufacturing
HVAC application
      Heating Ventilating and Air Conditioning


Pressure range

Pressure range100Pa, 1kPa, 2kPa, 7kPa, 10kPa (bar and psi unit available)
Pressure referenceGauge pressure | Absolute pressure | Differential pressure
Overpressure300%F.S.
Output signal

Output30mV
Specification

Accuracy (linearity, repeatability and hysteresis)±0.25%F.S. (≥10kPa) | ±1.5%F.S. (≤2kPa) | ±1%F.S. (2kPa-10kPa)
Excitation1.5mA | 5VDC
Compensated temp.Without temperature compensation
Operating temp.0ºC -50ºC
Storage temp.0ºC -85ºC
Input impedance2kΩ-5kΩ
Long term stability≤0.2%F.S.S./year
Housing material                                    Plastic
Weight5g(approx)

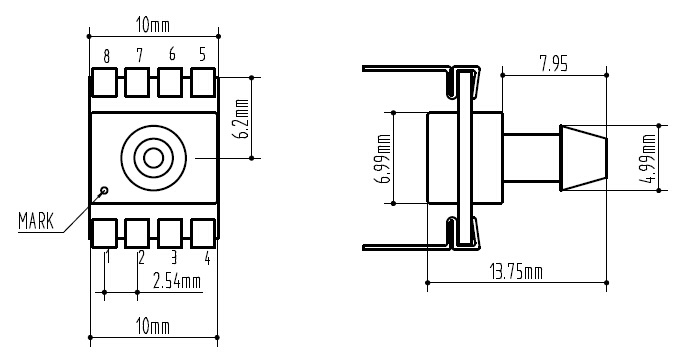

Mechanical drawing



1. +Vout

2. -1.5mA

3. -Vout

4. +1.5mA

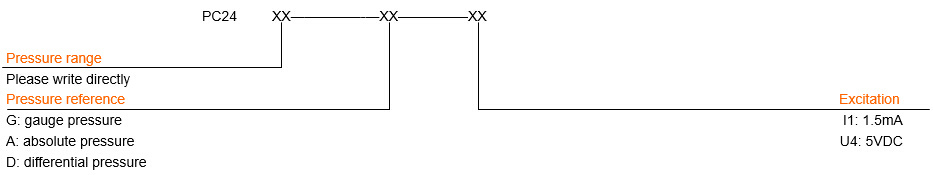

How to order
