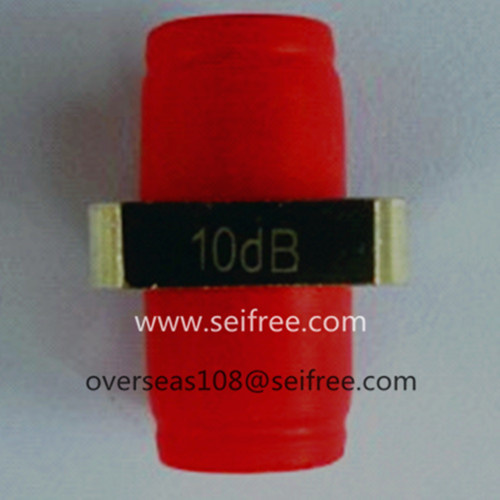

Simplex FC/Upc Fiber Optic Attenuator (CATV FTTX)

Name: Simplex FC/Upc Fiber Optic Attenuator (CATV FTTX)
Brand: all-electronics-online.com
SKU: 781829015
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 0.25-0.45/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SOFA-P-S-10-S-FC-FPC-FC-FPC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attenuator:	10dB
Sleeve:	Zirconia
Type:	FC Upc
Mode:	Single Mode
Ferrule:	FPC/Mpc
Jacket:	Metal
Config:	Plug
Core:	Simplex
Housing:	FC
Insertion Loss:	<0.2
Transmission Medium:	Single-Mode
Structure:	FC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

Optical Fiber Attenuators
Optical Fiber Attenuators are used to connect same or different type optical fiber connectors. The devices are manufactured to meet Telcordia GR-910-CORE requirements and RoHS compliant.

Applications                                                                                        Features
Optical Network Wiring                                                                      High Attenuation Precision
LAN                                                                                                     low excess loss
Test Equipment
CATV System
Telecommunication network
FTTH/FTTX

Quick Details
Place of Origin: Wuhan, China(Mainland)                       Model: Simplex/Duplex/Quad
Sleeve: ceramic sleeve                                                   Leadtime: 2 weeks
Mode: single mode

Company Profile
Business type:Manufacturer
Main products: optical passive devices, including optical coupler/splitter, PLC splitter, Fused WDM,TWDM,CWDM,OADM,DWDM, isolator, circulator, patch cord, adaptor etc.


Ordering Information
SOFA-       -       -       -       -       -       -       -

Config	Fiber mode	Attenuation	Type	Housing of 1st End	Ferrel Type	Housing of 2nd End	Ferrel Type
A=Adaptor	S=Single mode	1=1dB	S=Standard	FC	MPC= Male PC	FC	MPC= Male PC
P=Plug	/	2=2dB	F=Flange	SC	MPC= Male PC	SC	MPC= Male PC
/			0=Oval		MAPC= Female APC		FAPC= Male APC
		20=20dB	P=Pismatic	LC	MAPC= Female APC	LC	FAPC= Male APC

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Sleeve	/	Zirconia
Attenuation	dB	1±0.5 dB, 2~5±0.75 dB, 8~15±1.5 dB, 20±2 dB
Repeatability	Time	>1000

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
