Simplex Sc Fiber Optic Adapter Free Sample

Prod Model:	DTSXSC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Grade a
Warranty:	Life Time
OEM:	Acceptable
Transmission Medium:	Single-Mode
Structure:	SC
Ferrule Endface:	PC(',UPC)
Number Of Cores:	Single-Core
Brand:	Datolink

Product Description

Product Description

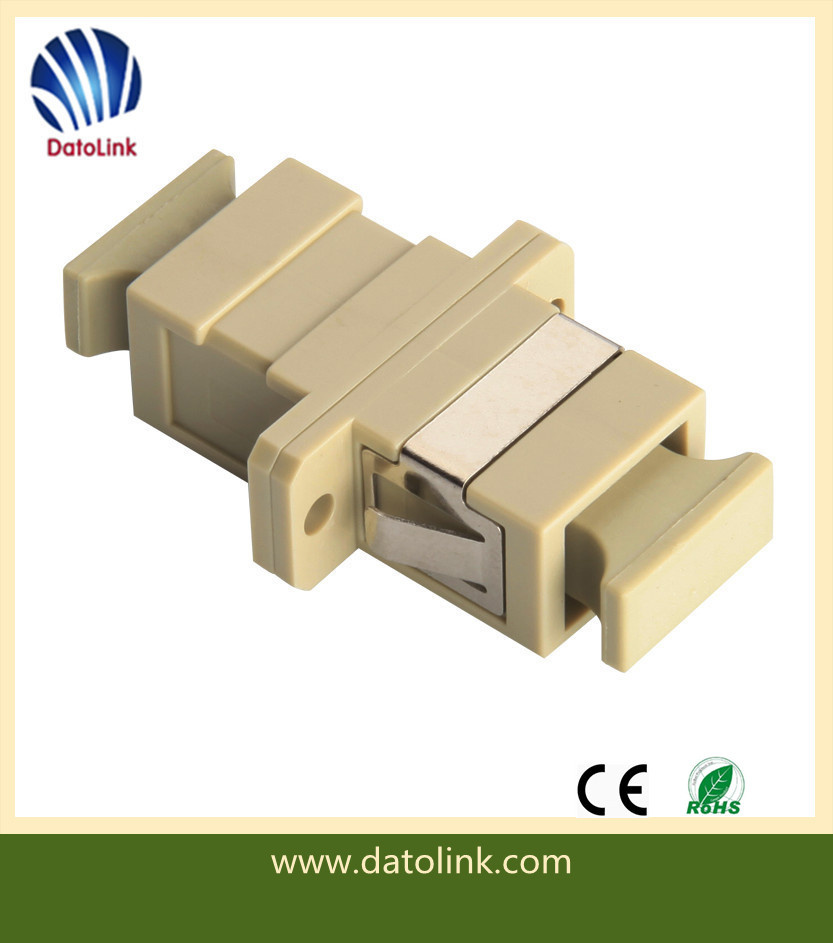

SC Simplex or Duplex Fiber Optic Adapters/Optical Fibre Adapter
Insertion loss 0.2dB
Standard RoHS Compliant

Specifications
Fiber Optic Adapter
1. Low insertin loss
2. Good repeatability, interchangeability,
3. Good environmental stability

Features:
Compliant With ANSI, TIA/EIA, NTT and JIS etc
Meets UL94-V0 Flammability Requirements
High Precision Alignment
Low Insertion Loss And Back Reflection Loss
Excellent Interchangeability
Excellent Repeatability
Good Temperature Characteristic
Choice of Housing Material And Sleeve Material

Applications:
Telecom, Access Network
Optical Fiber CATV
Terminal of The Devices and Multimedia
Testing and Medical Devices
Optical Fiber LAN and Access Network
Industry and Military Applications


Company Information

Products
We manufacture Fiber Optic System products as follows:
Active & Passive Components
Passive components
Patch cords
Pigtails
Splitter
Adapter
Termination boxes
Patch panel/ODF
Active equipment
Fiber converters
SFP/GEBIC transceivers
Receivers

Why you choose us?
1. Factory, OEM/ODM available
2. Steady quantities supply, Strict quality control
3. Excellent Datolink or your own brand box/roller design and package
4. Stirictly conform to ISO, Rohs CE certificates
5. Long time experience at domestic and export market
Welcome you visit our factory!
Relying on good prestige, creditable quality, perfect service and reasonable price, our company win the confidence of customers. We sincerely welcome old and new customers home and abroad to visit our manufactory and bulid the long term business relationshiop with us!

FAQ:
1. Are you factory?
Yes, we are factory, our factory located in Shenzhen, Longgang district.
2. What products your factory mainly produce?
Our factory mainly produce LC, SC, FC, ST Connector patch cord, pigtail, SFP transceiver module and other fiber optic components.

Insertion Loss(dB)	APC≤0.20  PC≤0.20  MM≤0.30
Repeatability(dB)	≤0.10
Exchangeability (500 cycles, dB)	≤0.20
Withdrawal Force (g/f)	2.0-6.0N
Material of Sleeve	Zirconia or Phosphor Bronze
Operating Temperature (degree)	-40 _ +80	-25_+70
Storage Temperature (degree)	-40 _ +85
