Simplex Soft Indoor Fiber Optic Cable (simplex)

Name: Simplex Soft Indoor Fiber Optic Cable (simplex)
Brand: all-electronics-online.com
SKU: 785000705
Availability: InStock
Rating: 4.6 (122 reviews)

Price:	US $ 0.15-0.25/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	indoor fiber cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Indoor Fiber Cable
Fiber Range:	2-12
Fiber Core:	12
Fiber Type:	Sm/mm
Fiber Certificate:	RoHS, Ce, ISO9001
Jacket Material:	LSZH/PVC/PE
Jacket Color:	Optional
Working Temperature:	-40~+70
Length:	1km/2km/3km
Package:	Wooden Reel
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	ISO9001
Brand:	ADP

Product Description

Simplex Soft Indoor Fiber Optic Cable (simplex)

Application

1. Used in pigtails and patch cords
2. Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distrubution frames
3. Used in indoor cabling, especially used as distrubution cable

Features

1. Good mechanical and environmental characteristics
2. Flame retardant characteristics meet the requirements of revelant standards
3. The mechanical characteristics of jacked meet the requirements of relevant strandards
4. Soft, flexible, easy to lay and splice, and with big capacity data transmission
5. Meet various requirements of market and clients.
Product can be manufactured
FTTH butterfly cable

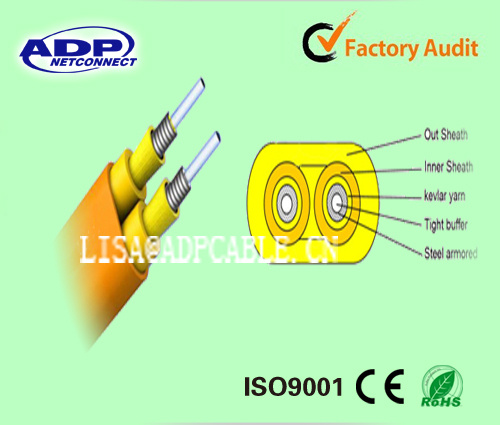

Simplex indoor fiber cable for component
Duplex indoor fiber cable for component
Simplex indoor fiber for housing wiring
Duplex indoor fiber cable
ADDS, OPGW power communication fiber optic cable
GJXDH, GJAFJVV, GJAFJBV, GYTA, GJXDH, etc
Fiber type: Single mode and multimode G652 G653 G654 G655 G657
CE/RoHs/ISO9001/SGS have passed

Data Sheet:

Fiber Count	Cable dimension mm		Cable Weight kg/km		Tensile N		Crush N/100mm		Min.Bend Radius mm		Range of Temperature
Fiber Count	250μm Coating Layer	450μm Coating Layer	250μm Coating Layer	450μm Coating Layer	Long Term	Short Term	Long Term	Short Term	Dynamic	Static	Range of Temperature
1	2.0	2.0	3.5	3.6	40	80	100	500	50	30	-20°c~+60°c
2	2.0	2.0	3.7	3.8	40	80	100	500	50	30
4	2.0	2.4	3.9	5.2	40	80	100	500	50	30
6	2.4	3.5	5.2	10.2	60	100	100	500	60	30
8	2.8	4.0	7.4	12.4	60	100	100	500	60	30
12	3.0	4.5	8.2	14.4	60	100	100	500	60	30
Note:1.All the values in the table,which are for reference only,are subject to change without notice 2.The cable core use the coating fiber of 250μm or 450μm 3.The minimumbend radius(static) is 15mm,when G657 fiber is used
Fiber Sort	Multimode	G.651	Ala:50/125	Graded-index fiber
	Multimode	G.651	Alb:62.5/125	Graded-index fiber
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2:Zero dispersion shifted
		G.655		B1.2:Cut-off wavelength shifted
		G.657(A1,A2,B3)		B4:Main technical data for positive dispersion shifted single-mode fiber

Ms.Joan Xia

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
