| Weight: |
20kgs |
| Jack Capability: |
270kn |
| Stressed PC Strand Diameter: |
12.7mm(0.5"), 15.2mm(0.6") |
| Name: |
Hollow Hydraulic Jack |
| Key Words: |
Center Hole Jack |
| Other Name: |
Hollow Jack |
| Rated Load Capacity: |
65t |
| Pump Oil Pressure: |
50MPa |
| Stroke: |
200mm |
| Dimension: |
Φ170 X 288 |
| Installation Mode: |
Automatic Pop-up |
| Type: |
Multi-Tube Jack |
| Interface Type: |
Drawer-Type |
| Shape: |
Rectangular |
| Production Process: |
Welding |
| Customized: |
Customized |
| Working Frequency: |
High Frequency |
| Feature: |
Moistureproof |
| Cards Support: |
Dual Card |
| Application: |
Bridge Construction |
Product Description

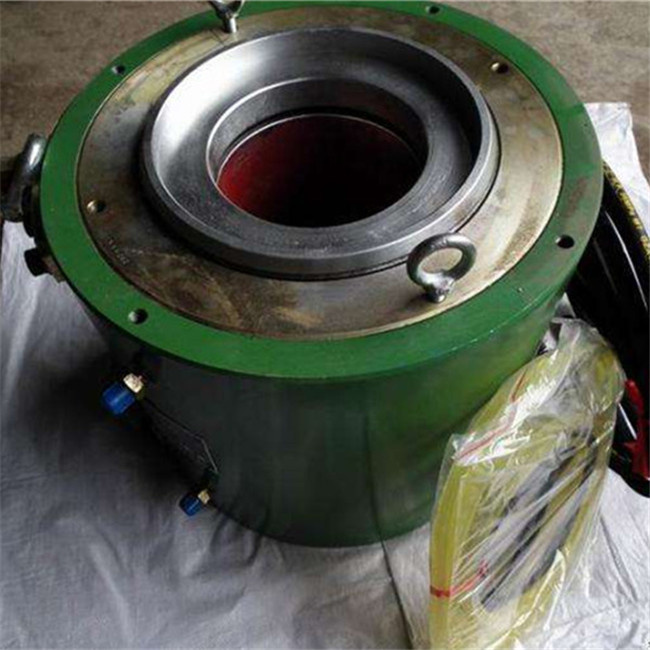

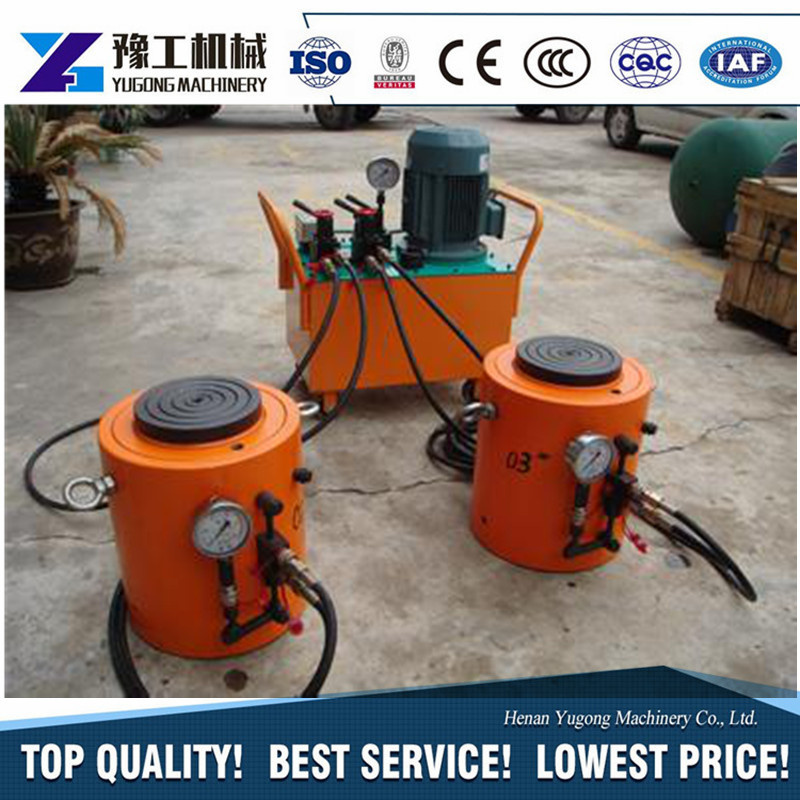

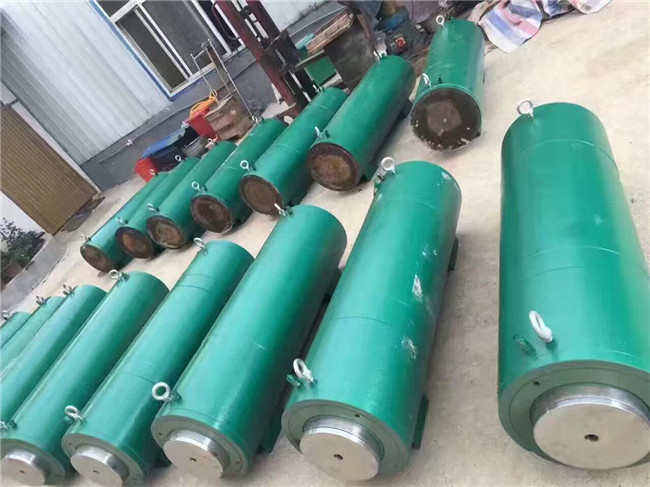

Single Acting Hollow Piston Hydraulic Pull Jack

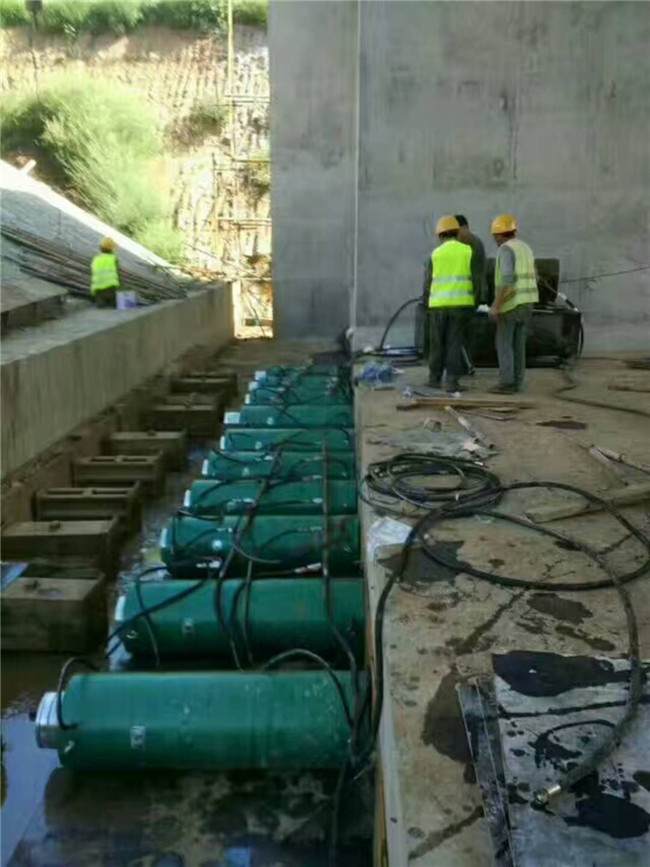

Description of Hollow hydraulic Jack1, YGM-270 mono-strand Jack is a kind of general purpose for prestressing applied for pre-tension and post-tension of various steel strand anchors.2, YGM-270 mono-strand Jack is widely used in precast structures, such as prestressed bridge girders and decks units, rock and earth anchoring construction, hydraulic structures and other great projects.3, The hydraulic prestressing Jack is also easy to hoist, to operate and convenient to maintain, with high contamination tolerance and durability. 4, YGM series Jacks are cost-effective.
Feature of Hollow hydraulic Jack Weight: 20KGS
Jack capability(Load): 270KN
Stressed PC Strand Diameter: 12.7mm(0.5"), 15.2mm(0.6")
Technical parameter of Hollow hydraulic Jack Models
Items | Rated Load Capacity (Ton) | Pump Oil Pressure (Mpa) | Stroke (mm) | Body Dimension (mm)
(Dia. x Length) |
| YGM-650 | 65 | 50 | 200 | Φ170 x 288 |
| YGM-1100 | 110 | 50 | 200 | Φ218 x 330 |
| YGM-1500 | 150 | 50 | 200 | Φ270 x 330 |
| YGM-2000 | 200 | 50 | 200 | Φ320 x 360 |
| YGM-2500 | 250 | 50 | 200 | Φ350 x 360 |
| YGM-3000 | 300 | 50 | 200 | Φ375 x 380 |
| YGM-3500 | 350 | 50 | 200 | Φ415 x 395 |
| YGM-4000 | 400 | 51 | 200 | Φ435 x 395 |
| YGM-4600 | 460 | 51 | 200 | Φ470 x 410 |
| YGM-5000 | 500 | 51 | 200 | Φ495 x 410 |
Our services1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.
5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.Company InformationHenan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments, Hollow hydraulic Jack and so on.We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery.
packaging &shipping1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Henan Yugong Machinery Co., Ltd., located in Zhengzhou City, is specialized in machinery in China over 20 years. Our company focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on. Our products include equipments of different fields, highways, bridges, tunnels, culverts of metros, mining, coal mines and non-coal mines. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Our factory have 20 years of manufacturing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc. There are more than 500 employees in our company, including more than 30 senior technical staff and 30 international sales persons. You can be rest assured that All the products with high quality meet international standards and have won a good reputation at home and abroad.
We are warmly looking forward your long-term friendly cooperation, please kindly contact us any time you need these machines.
