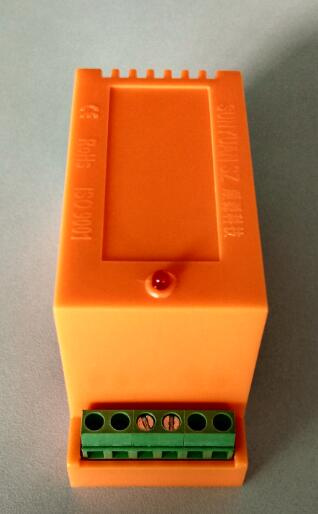

Single Channel Frequency to DC Current Voltage Isolation Amplifier
| Price: |
Negotiable/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
DIN1X1 ISO F-P-O |
| Efficiency Grade: |
0.1/0.2 |
| Nonlinearity: |
<2% |
| Auxiliary Power Supply: |
5V,12V,15V,24VDC |
| Isolation Voltage: |
3000VDC |
Product Description
DIN Rail Frequency Signal to 0-5V, 0-10V, 4-20mA Transmitter
Applications:
Sine wave, square wave, sawtooth wave etc. Signal isolated amplifier and converter
DC signal converter to isolated frequency pulse signal
Accurate digital voltage testing meters
A/D isolated converter instruments
Data testing and remote monitor instrument
Analog signal data acquisition
Ground interference control
Characteristic:

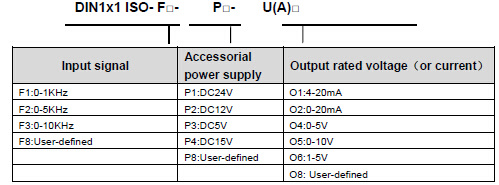

Features:·Change the input signal into unit impulse signal·Efficiency grade: 0.1/0.2·International standard signal input: 0-5V/0-10V/1-5V, 0-10mA/0-20mA/4-20mA·Standard signal output: 0-5KHz/0-10KHz /1-5KHz and so on·Extremely high linearity in whole process(Nonlinearity<2%)·3kV Isolation among Signal input/output/ Accessorial power supplyModel and Description:
| | Signal Input (Hz) | Signal output | Assistant Power Supply (VDC) | Power Consumption | Isolation (DC) | Accuracy (%) | Temp.
Drift | Operating
Temp. | Non-
Linearity (%) | Response
Time |
| V | 0-1K
0-5K
0-10K | 1-5V
0-5V 0-10V | 5/12
15/24 | 1W | 3000V | 0.1 0.2 0.5 | 100 | -20-+85º C | ≤ 0.1 | ≤ 10mS
|
| I | | 4-20Ma
0-20mA
| | | | | | | | |
