| Prod Model: |
BV |
| Color: |
as Your Reuirement |
| Quality Guarantee: |
5 Years |
| Cross Sectional Area: |
0.5-400mm2 |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Overhead |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Range Of Application: |
Nomal |
| Brand: |
Upward |
Product Description

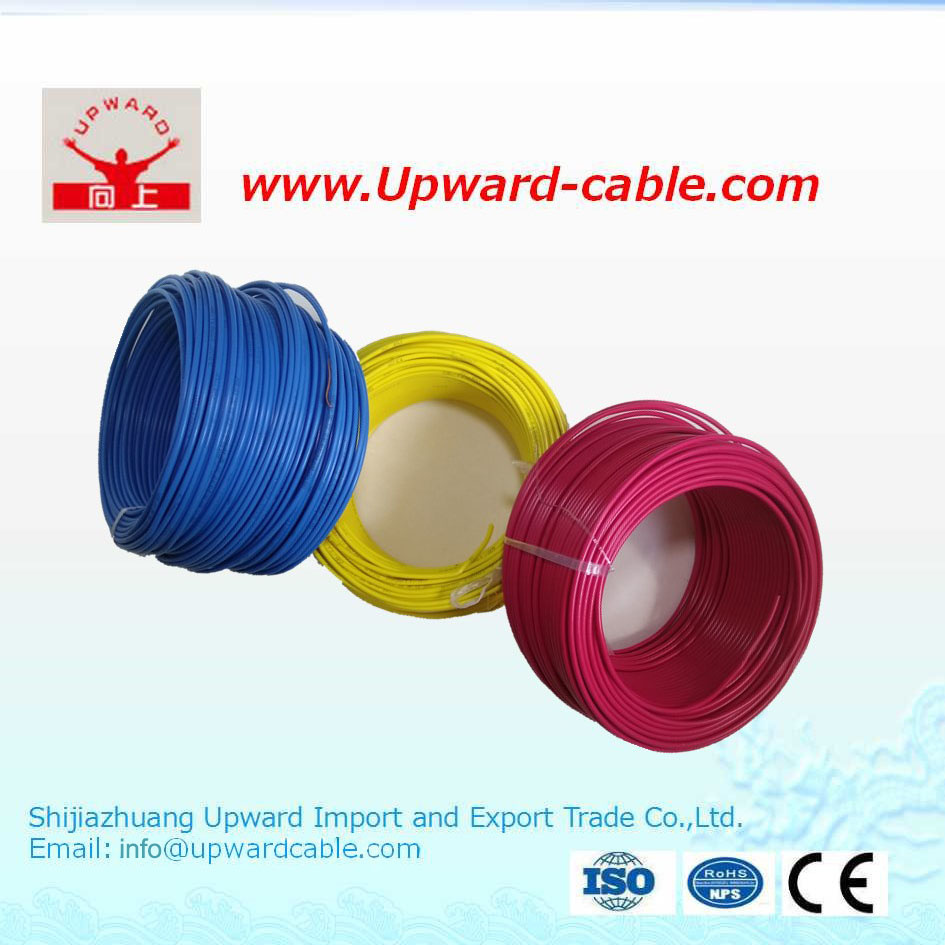

single color eletrical wire
Product Description
1.Standard
GB5023.11997.JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227
2.Application
The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.
3.Voltage U0/U
450/750V, 300/500V, 300/300V
4.Usage Temperature
Max.Permissible continuous operating temperature is 75ºC, installation temperature is not lower than 0ºC.
5.Model and Name
Model Name
BV Copper core PVC insulation wire
BLV Aluminium core PVC insulation wire
BVR Copper core PVC insulation flexible wire
BVV Copper core PVC Insulation PVC sheath round wire
BVVB Copper core PVC insulation PVC sheath flat wire
BLVVB Alminium core PVC insulation PVC sheath flat wire
BV-105 Copper core heat-resistance 105 ºC PVC insulation
5.Products list and parameter:
| No. | Size | Length per roll |
| PVC insulated non-sheathed copper wires BV (450-750 Voltage) |
| 1 | 1.5 mm2 | 100 m |
| 2 | 2.5 mm2c | 100m |
| 3 | 4 mm2 | 100 m |
| 4 | 6 mm2 | 100 m |
| 5 | 10 mm2 | 100 m |
| 6 | 16 mm2 | 100 m |
| 7 | 25 mm2 | 100 m |
PVC insulated PVC/XLPE sheathed Twin cables with/without earth
BVVB (300-500 Voltage) |
| 8 | 2×1 +1 mm2 | 100 m |
| 9 | 2×1.5 +1 mm2 | 100 m |
| 10 | 2×2.5 +1.5 mm2 | 100 m |
| 11 | 2×4 +2.5 mm2 | 100 m |
| 12 | 2×6 +4 mm2 | 100 m |
| 13 | 2×10+4 mm2 | 100 m |
| 14 | 2×16+6 mm2 | 100 m |
| PVC insulated non-sheathed Multi flexible wires BVR (450-750 Voltage) |
| 15 | 1.5 mm2 | 100 m |
| 16 | 2.5 mm2 | 100 m |
| 17 | 4 mm2 | 100 m |
| 18 | 6 mm2 | 100 m |
| 19 | 10 mm2 | 100 m |
| 20 | 16 mm2 | 100 m |
Packaging
Packing Length: 100M
Other packing available according to clients' request
Shipping
By Express, By Air, By Sea
We cooperate with lots of Shipping Companies, which can offer you the best price by the fastest way.
If you have your own Courier, you can arrange for the shippment as well.
♥ If you want to know more information about our products welcome to contact us in any time, And welcome to our company! We display more new design in our showroom.
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
