| Prod Model: |
240mm2, 185mm2, 120mm2 |
| Certificate: |
Ce, ISO 9001 |
| Applicated Standard: |
IEC 60502-2 |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Popular Size: |
240mm |
| Type Of Conductor: |
11kv Copper Cable |
| Type Of Cable: |
11kv Steel Tape Cable |
| Rated Voltage: |
11kv |
| Business Type: |
Manufacturer |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Brand: |
Jytop |
Product Description

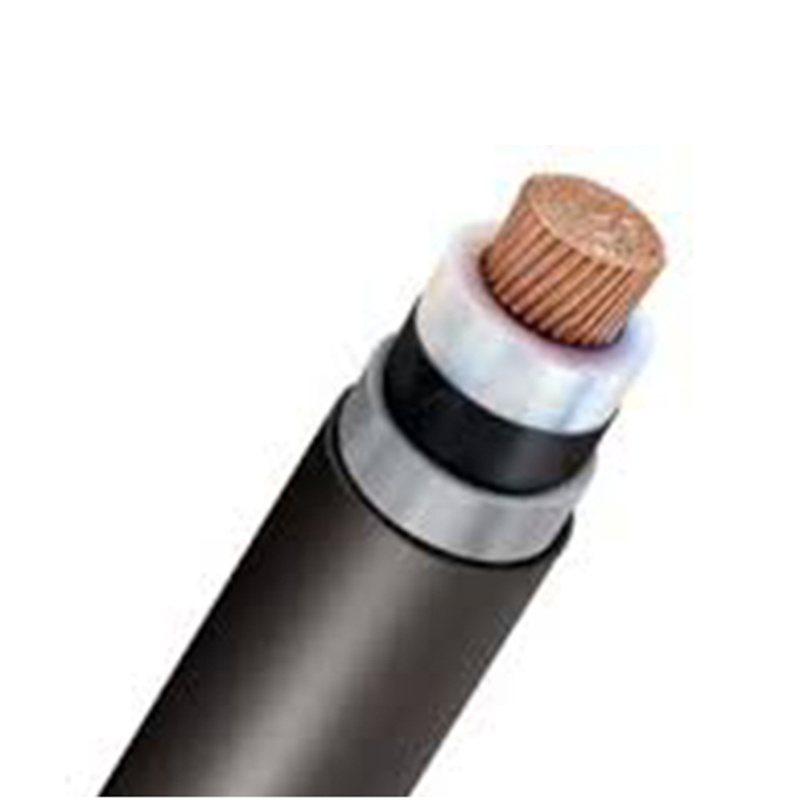

single Core 240mm Copper XLPE insualted Armoured power Cable1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.
5. Serve everyone with heart and soul.
11kv aluminum wire armoured cable
11kv steel tape armored cable
11kv cable 3x150mm2
6.35/11kV AL/XLPE/STA/PVC(or PE) Power Cable
1. Description
Construction: Compacted stranded circular aluminum conductor, extruded semi-conducting compound as conductor shield, cross-linked polyethylene (XLPE) insulation, semi-conducting compound as insulation shield, copper tape or combination of copper wire and tape as metallic screen, three cores assembled together with non-hygroscopic polypropylene filler, wrapped with binder tape, PVC inner covering as armoring bedding, double galvanized steel tape armored, PVC or PE outer sheath.
11KV high voltage 1 core Nominal size 240 mm type XLPE, copper cable
Chinese Type |
Description | Core qty | Conductors range |
YJLV22 | Aluminum conductor, XLPE insulation, Steel Tape Armored,
PVC outer sheath Power Cable |
1 or 3 | 25~800mm2 |
YJLV23 | Aluminum conductor, XLPE insulation, Steel Tape Armored, PE
outer sheath Power Cable |
1 or 3 |
25~800mm2 |
ZA-YJLV22
ZB-YJLV22
ZC-YJLV22 |
Aluminum conductor, XLPE insulation/Steel Tape Armored flame-retardant Power Cable |
1 or 3 |
25~800mm2 |
WDZA-YJLY23
WDZB-YJLY23
WDZC-YJLY23 | Aluminum conductor, XLPE insulation, Steel Tape Armored Low
Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame- retardant Power Cable |
1 or 3 |
25~800mm2 |
2. Operating Characteristics
Rated voltage U0/U(Um): 6.35/11(12)kV
U0 is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed; U is the rated power frequency voltage between conductors for which the cable is designed;
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
Max. permissible continuous operating temperature of conductor: 90 °C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250 °C The ambient temperature under installation should not be lower than: 0 °C
The bending radius of cable is recommended as following:
For single core cable: not less than 15 times of the diameter of cable
For three core cable: not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armored material should be non-
magnetic.
3. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, outdoors, in tunnel, in cable trench, or direct in ground, able to bear external mechanical force, but unable to bear large pulling force.
4. Manufacturing Standards
IEC 60502-2 and Chinese National Standard GB/T 12706-2008
We can produce above cables according to popular international standards such as ASTM,BS,DIN,NF &AS/NZ also.
5. Main technical data
5.1 Main technical data of 6.35/11KV, Single core, Aluminum conductor, XLPE insulated, double galvanized steel tape armored and PVC or PE sheath cable
CABLE CONSTRUCTION: 6.35/11KV AL/XLPE/DSTA/PVC or PE
Size | Nominal
thickness of
XLPE
insulation(mm) | Approx.
thickness of copper tape
screen (mm) | Nominal thickness of steel tape(mm) | Nominal
thickness of
PVC or
PE(mm) | Approx. overall
diameter of finished
cable(mm) | Max. conductor
D.C resistance
@ 200C (Ω/km) |
| 1x25mm2 | 3.4 | 0.12 | 0.3 | 1.8 | 23.9 | 1.20 |
| 1x35mm2 | 3.4 | 0.12 | 0.3 | 1.8 | 24.9 | 0.868 |
| 1x50mm2 | 3.4 | 0.12 | 0.3 | 1.8 | 26.0 | 0.641 |
| 1x70mm2 | 3.4 | 0.12 | 0.3 | 1.8 | 27.7 | 0.443 |
| 1x95mm2 | 3.4 | 0.12 | 0.3 | 1.9 | 29.5 | 0.320 |
| 1x120mm2 | 3.4 | 0.12 | 0.3 | 1.9 | 30.9 | 0.253 |
| 1x150mm2 | 3.4 | 0.12 | 0.3 | 2.0 | 32.7 | 0.206 |
| 1x185mm2 | 3.4 | 0.12 | 0.3 | 2.0 | 34.29 | 0.164 |
| 1x240mm2 | 3.4 | 0.12 | 0.5 | 2.1 | 37.7 | 0.125 |
| 1x300mm2 | 3.4 | 0.12 | 0.5 | 2.2 | 39.9 | 0.100 |
| 1x400mm2 | 3.4 | 0.12 | 0.5 | 2.3 | 43.3 | 0.0778 |
| 1x500mm2 | 3.4 | 0.12 | 0.5 | 2.4 | 47.4 | 0.0605 |
| 1x630mm2 | 3.4 | 0.12 | 0.5 | 2.5 | 51.5 | 0.0469 |
| 1x800mm2 | 3.4 | 0.12 | 0.5 | 2.6 | 55.4 | 0.0369 |
5.2 Main technical data of 6.35/11KV Single core, Aluminum conductor, XLPE insulated, copper wire screened, double galvanized steel tape armored and PVC or PE sheath cable
CABLE CONSTRUCTION: 6.35/11KV AL/XLPE/CWS/DSTA//PVC or PE
Size | Nominal
thickness of
XLPE
insulation(mm) | Approx.
thickness of copper tape
screen (mm) | Nominal diameter
of copper wire(mm) | Nominal thickness of
steel tape(mm) | Nominal
thickness of PVC
or
PE(mm) | Approx.
overall diameter of
finished
cable(mm) | Max.
conductor
D.C resistance
@ 200C
(Ω/km) |
| 1x25mm2 | 3.4 | 0.12 | 0.9 | 0.3 | 1.7 | 25.3 | 1.20 |
| 1x35mm2 | 3.4 | 0.12 | 0.9 | 0.3 | 1.7 | 26.3 | 0.868 |
| 1x50mm2 | 3.4 | 0.12 | 0.9 | 0.3 | 1.8 | 27.6 | 0.641 |
| 1x70mm2 | 3.4 | 0.12 | 0.9 | 0.3 | 1.8 | 29.3 | 0.443 |
| 1x95mm2 | 3.4 | 0.12 | 0.9 | 0.3 | 1.9 | 31.1 | 0.320 |
| 1x120mm2 | 3.4 | 0.12 | 0.9 | 0.3 | 1.9 | 32.5 | 0.253 |
| 1x150mm2 | 3.4 | 0.12 | 0.9 | 0.3 | 2.0 | 34.3 | 0.206 |
| 1x185mm2 | 3.4 | 0.12 | 0.9 | 0.3 | 2.0 | 35.9 | 0.164 |
| 1x240mm2 | 3.4 | 0.12 | 0.9 | 0.5 | 2.2 | 39.6 | 0.125 |
| 1x300mm2 | 3.4 | 0.12 | 0.9 | 0.5 | 2.2 | 41.5 | 0.100 |
| 1x400mm2 | 3.4 | 0.12 | 0.9 | 0.5 | 2.3 | 44.9 | 0.0778 |
| 1x500mm2 | 3.4 | 0.12 | 0.9 | 0.5 | 2.4 | 51.0 | 0.0605 |
| 1x630mm2 | 3.4 | 0.12 | 0.9 | 0.5 | 2.5 | 55.0 | 0.0469 |
| 1x800mm2 | 3.4 | 0.12 | 0.9 | 0.5 | 2.7 | 59.4 | 0.0369 |
5.3 Main technical data of 6.35/11KV, three cores, Aluminum conductor, XLPE insulated, double galvanized steel tape armored and PVC or PE sheath cable
CABLE CONSTRUCTION: 6.35/11KV AL/XLPE/DSTA/PVC or PE
Size | Nominal thickness of
XLPE
insulation(mm) | Approx. thickness of
copper tape screen (mm) | Nominal thickness of
steel tape(mm) | Nominal thickness of
PVC or
PE(mm) | Approx. overall diameter of
finished cable(mm) | Max. conductor D.C resistance @ 200C (Ω/km) |
| 3x25mm2 | 3.4 | 0.10 | 0.5 | 2.3 | 45.7 | 1.20 |
| 3x35mm2 | 3.4 | 0.10 | 0.5 | 2.4 | 48.1 | 0.868 |
| 3x50mm2 | 3.4 | 010 | 0.5 | 2.5 | 50.9 | 0.641 |
| 3x70mm2 | 3.4 | 0.10 | 0.5 | 2.6 | 54.8 | 0.443 |
| 3x95mm2 | 3.4 | 0.10 | 0.5 | 2.7 | 58.8 | 0.320 |
| 3x120mm2 | 3.4 | 0.10 | 0.5 | 2.9 | 62.4 | 0.253 |
| 3x150mm2 | 3.4 | 0.10 | 0.5 | 3.0 | 66.2 | 0.206 |
| 3x185mm2 | 3.4 | 0.10 | 0.5 | 3.1 | 70.1 | 0.164 |
| 3x240mm2 | 3.4 | 0.10 | 0.5 | 3.3 | 75.9 | 0.125 |
| 3x300mm2 | 3.4 | 0.10 | 0.5 | 3.4 | 80.7 | 0.100 |
| 3x400mm2 | 3.4 | 0.10 | 0.8 | 3.7 | 89.8 | 0.0778 |
