| Prod Model: |
YJLV32 3*35+25 |
| Standards: |
IEC 60502 |
| Number Of Core: |
1-5 |
| QC: |
25 |
| Factory Area: |
10000mm2 |
| Application: |
Telecommunication |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Wire Core Material: |
Aluminium |
| Model: |
Yjlv32 |
| Brand: |
Huatong |
Product Description
Single Core XLPE Insualted Copper Wire Armour 11kv Aluminum Power Cable
Conductor shape: Compression Circular
Standard: IEC 60502-1997
Or equivalent DIN, BS, AS/NZS, JIS, ASTM, IS, etc.
Package: Steel or wooden Drum
Additional Options: Halogen free, flame retardant, Low smoke, Anti-termite.
Technical details:
Conductor: Conductor cross section of 800mm2 or below is stranded through compacting round core, with better roundness and higher compacting coefficient. Conductor cross section more than 800mm2 is made by segment of Milliken method to minimize skin connecting and alternating current impedance and increase power transmission capacity of cable.
Insulation: XLPE.
Product line: CCV
Metallic screen/sheath: Copper wire, copper tape or copper wire+tape
Armor: Steel tape
Outer sheath: PVC, MDPE, HDPE, LDPE
Characteristic of use:
1. Allowable max. long-time operation temperature of cable conductor: 90°C
2. Allowable Max. short circuit temperature of cable conductor (max. sustaining period not exceeding 5s): 250 °C
3. Allowable Min. bending radius when laying cable, generally 20 times of the cable diameter
Related Product Description:
- XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
- XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
- XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
- Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
- Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
- Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
FR - Flame Retardant
----IF YOUR HAVE ANY INTERESTED PRODUCTS, PLS FEEL FREE TO CONTACT OUR SALES TEAM.
| Type | Name | Main Application |
| Cu Core | Al Core |
YJV
YJY | YJLV
YJLV | XLPE insulated,PVC or PE Sheathed Power Cable | For laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laid |
YJV22
YJV22 | YJLV22
YJV22 | XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable | For laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling force |
YJV32
YJV32 | YJLV32
YJLV32 | XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling force |
YJV42
YJV42 | YJLV42
YJLV42 | XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |

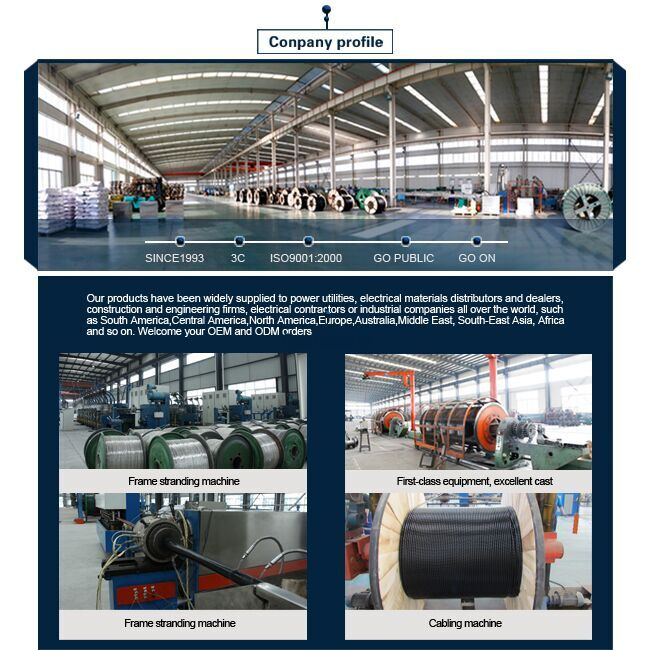

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.
Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.
In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
