| Prod Model: |
PVC-160 |
| Products Name: |
Mc3 Mc4 Solar PV Connector Cable Copper Wire |
| Color: |
Red/Black |
| Wire: |
Class 5,Tinned |
| Temperature Range: |
-40~+90 |
| Fire-Resistatnce Perfermance: |
IEC 60332-1 |
| Approvals: |
TUV 2pfg1169 |
| Low Fire Load: |
DIN 51900 |
| Smallest Permissible Bending Radius: |
5xd |
| Cross Section: |
6mm2 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Power Station/Construction |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
TUV/SAA |
| Sheath Material: |
XLPE |
| Range Of Application: |
Photovoltaic Power Station |
| Brand: |
Meanray/OEM |
Product Description

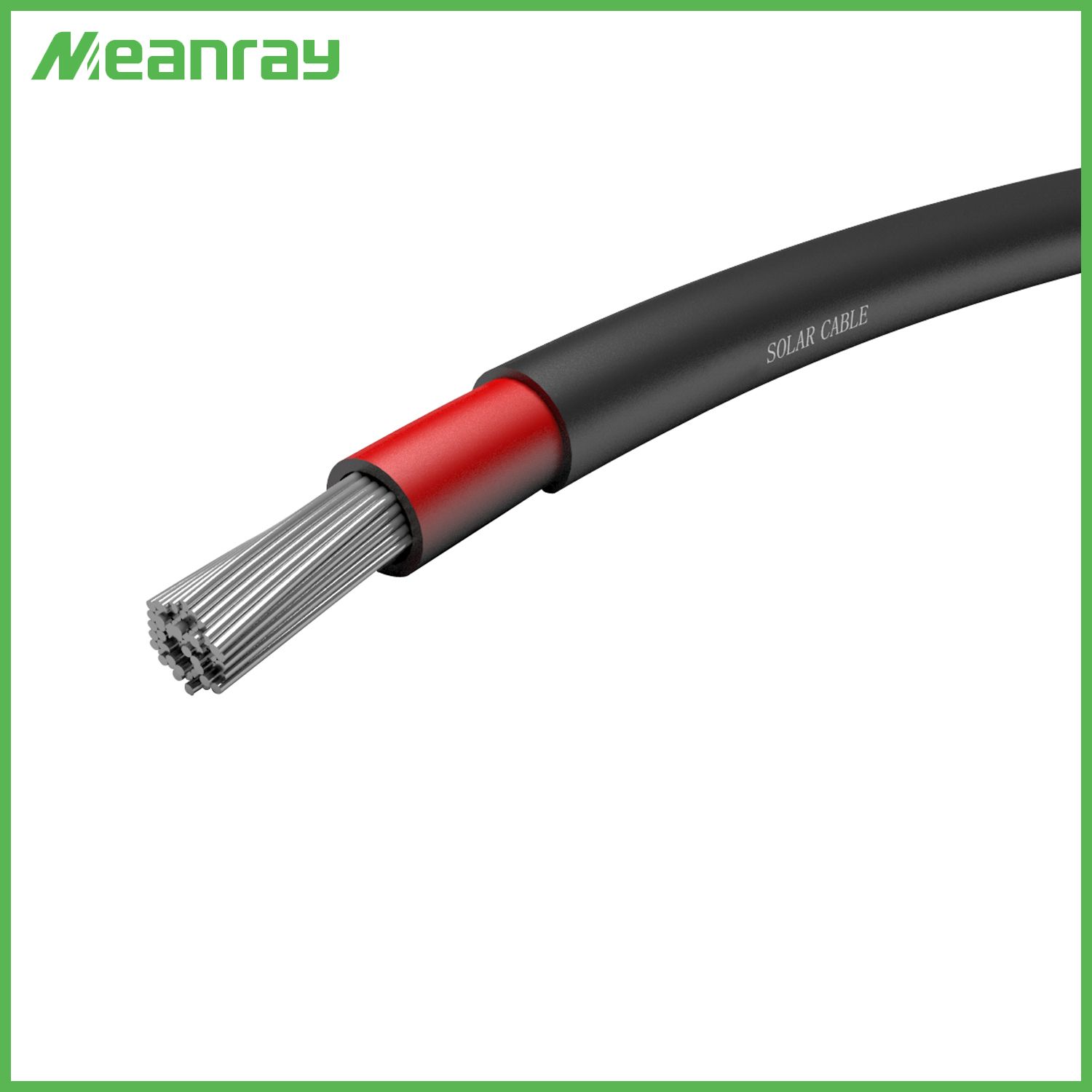

Single Core XLPE Solar Cable 4.0mm2 2.5mm2 6.0mm2 10.0mm2 16.0mm2Single core solar cable Description:A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1.Fire-resistant performance:IEC60332-1.
2.Smoke emission:IEC61034;EN50268-2
3.Low fire load:DIN51900
4.Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502
MC3 MC4 Solar Pv Connector Cable Copper Wire Technical Data:1.Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
2.Test Voltage:6500V,50Hz,5Min.
3.Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
5.Bending Radius:Fixed installation>4X Occasionally moved>5X
Single core solar cable Specification:| Construction | Conductor construction. | Conductor | Outer | Resistance Max. | Current Carring Capacity |
| nxmm2 | n/m | mm | mm | Ω/Km | A |
| 1X1.5 | 30/0.25 | 1.58 | 4.90 | 13.30 | 30 |
| 1x2.5 | 50/0.25 | 2.02 | 5.45 | 7.98 | 41 |
| 1x4 | 56/0.3 | 2.30 | 6.10 | 4.75 | 55 |
| 1x6 | 84/0.3 | 3.42 | 7.20 | 3.39 | 70 |
| 1x10.0 | 142/0.3 | 4.56 | 9.00 | 1.95 | 98 |
| 1x16.0 | 228/0.3 | 5.60 | 10.20 | 1.24 | 132 |
| 1x25.0 | 361/0.3 | 6.95 | 12.00 | 0.795 | 176 |
| 1x35.0 | 525/0.3 | 8.74 | 13.80 | 0.565 | 218 |
| 1x50.0 | 720/0.3 | 9.20 | 14.80 | 0.393 | 280 |
| 1x70.0 | 988/0.3 | 11.00 | 16.90 | 0.277 | 350 |
| 1x95.0 | 1349/0.3 | 12.50 | 18.70 | 0.21 | 410 |
| 1x120.0 | 1691/0.3 | 14.20 | 20.70 | 0.164 | 480 |
| Construction | Conductor Construction | Insulation Thickness | Sheath Thickness | Outer ø | Resistance Max. | Current Carring Capacity | Approx Weight |
| n×mm² | n/m | mm | mm | mm | Ω/Km | A | Kg/Km |
| 2×1.5 | 30/0.25 | 0.7 | 0.8 | 8.3±0.2 | 13.3 | 30 | 7.2 |
| 2×2.5 | 50/0.25 | 0.7 | 0.8 | 9.2±0.2 | 7.98 | 41 | 9.4 |
| 2×4.0 | 56/0.3 | 0.7 | 0.8 | 12.0±0.2 | 4.75 | 55 | 14.2 |
| 2×6.0 | 84/0.30 | 0.8 | 0.9 | 13.5±0.2 | 3.39 | 70 | 20 |
| 2×10.0 | 142/0.30 | 0.9 | 1.1 | 17.6±0.2 | 1.95 | 98 | 29 |
| 2×16.0 | 228/0.30 | 1.1 | 1.1 | 19.8±0.2 | 1.24 | 132 | 43 |
Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5
Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Nominal Voltage : AC 600/1000V DC 1000/1800V
Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
Sheath Color :Black or as per customer's requeit
Temperature Rating:45°c upto +125°c -40°F upto +257°F
Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F
Max.Short circuit temperature:280°c,+536°F
Bending Radius:Fixed installation>4X Occasionally moved>5X
Our Services:1. Factory: 200,000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, CQC, ISO9001:2008;
4. Payment terms: T/T, L/C, O/A;
5. Guarantee: 20 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 12 hours.
